- 5 7 - This cha rt shows that production o f board A has been completed when board B i s set standby in the I N buffer and the next stage i s set busy. (5) B.A.IN Ready OUT I N sensor WAIT sensor STOP sensor C.OUT senso…
- 56 -

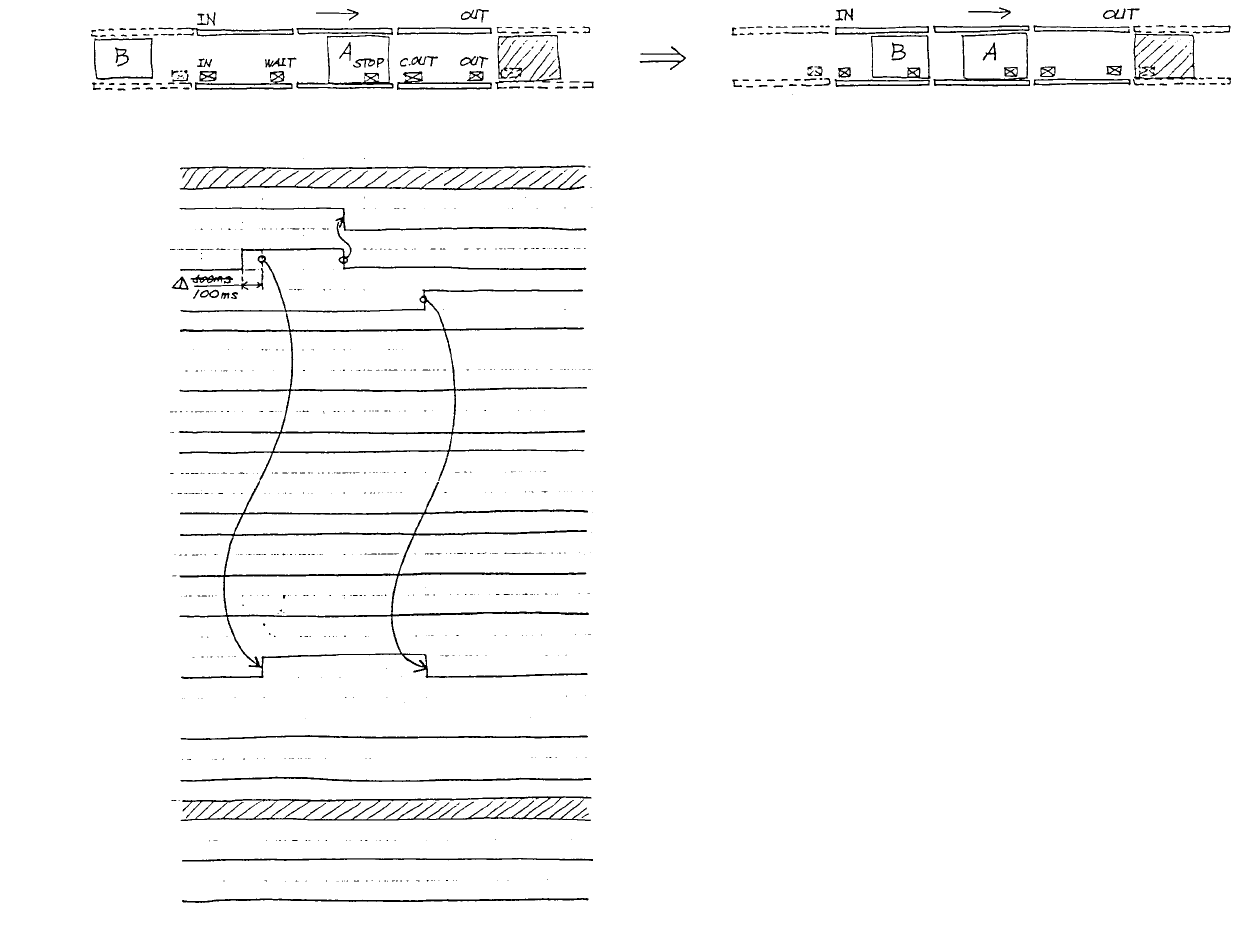

This chart shows that board B is carried into the IN buffer during production of board A.
(4)
B.A.IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
BU UP sensor
BU DN sensor
Stopper
Backup
External shape
cramp 1 (X)
IN motor
CENT motor
OUT motor
Ready IN
B.A.OUT
External shape
cramp 2 (Y)
- 57 -

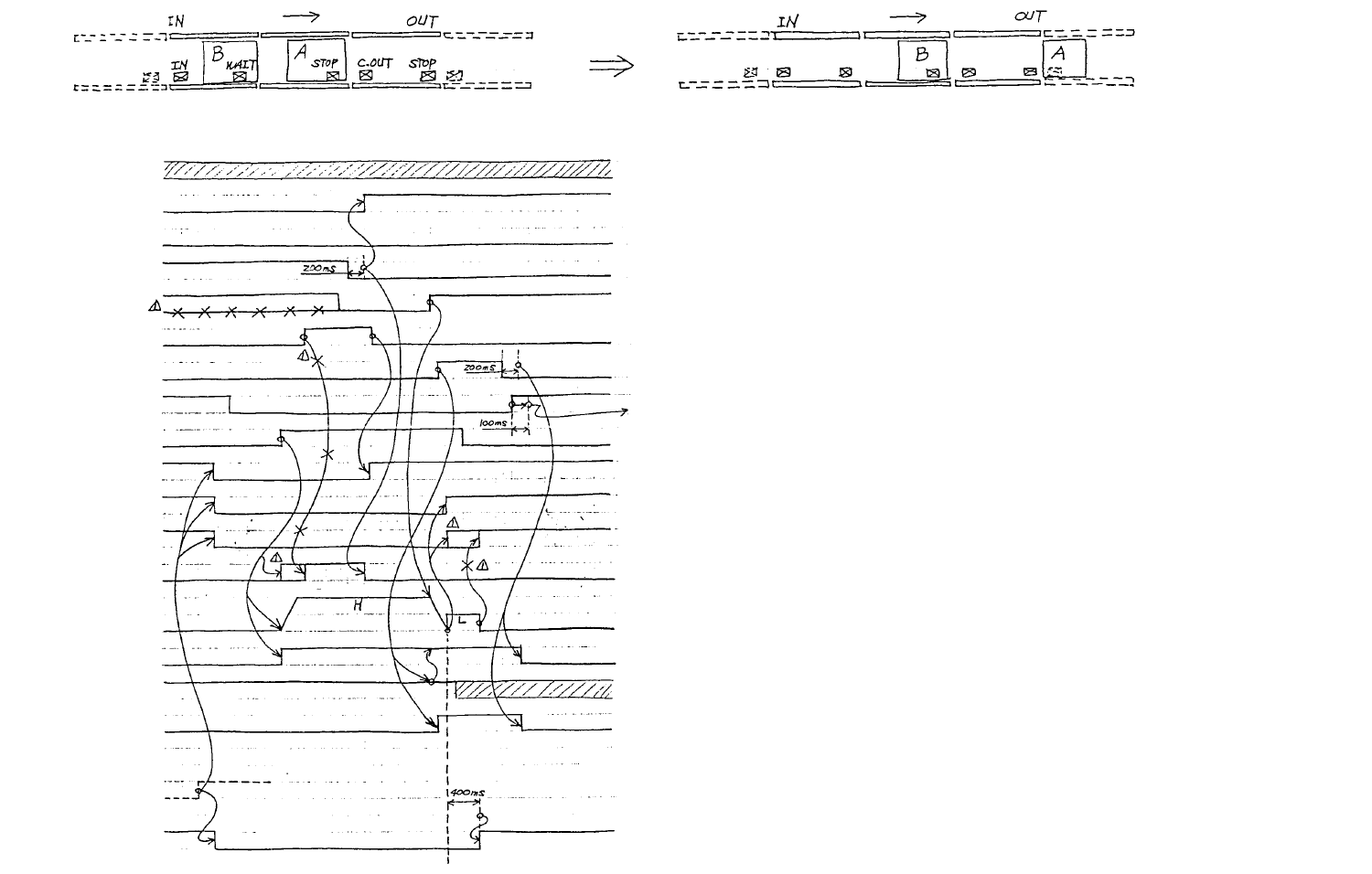

This chart shows that production of board A has been completed when board B is set standby in the IN buffer and the next stage is set busy.
(5)
B.A.IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
BU UP sensor
BU DN sensor
Stopper
Backup
External shape
cramp 1 (X)
IN motor
CENT motor
OUT motor
Ready IN
B.A.OUT
Continuous
production
(Carriage start)
External shape
cramp 2 (Y)
[Key operation]
When the board is set standby in the IN buffer, to make the carriage time short,
board B is carried in while board A is carried out. When about 80 mm of board A
has been carried out, the C.OUT sensor detects board A.
Carriage, completed
- 58 -

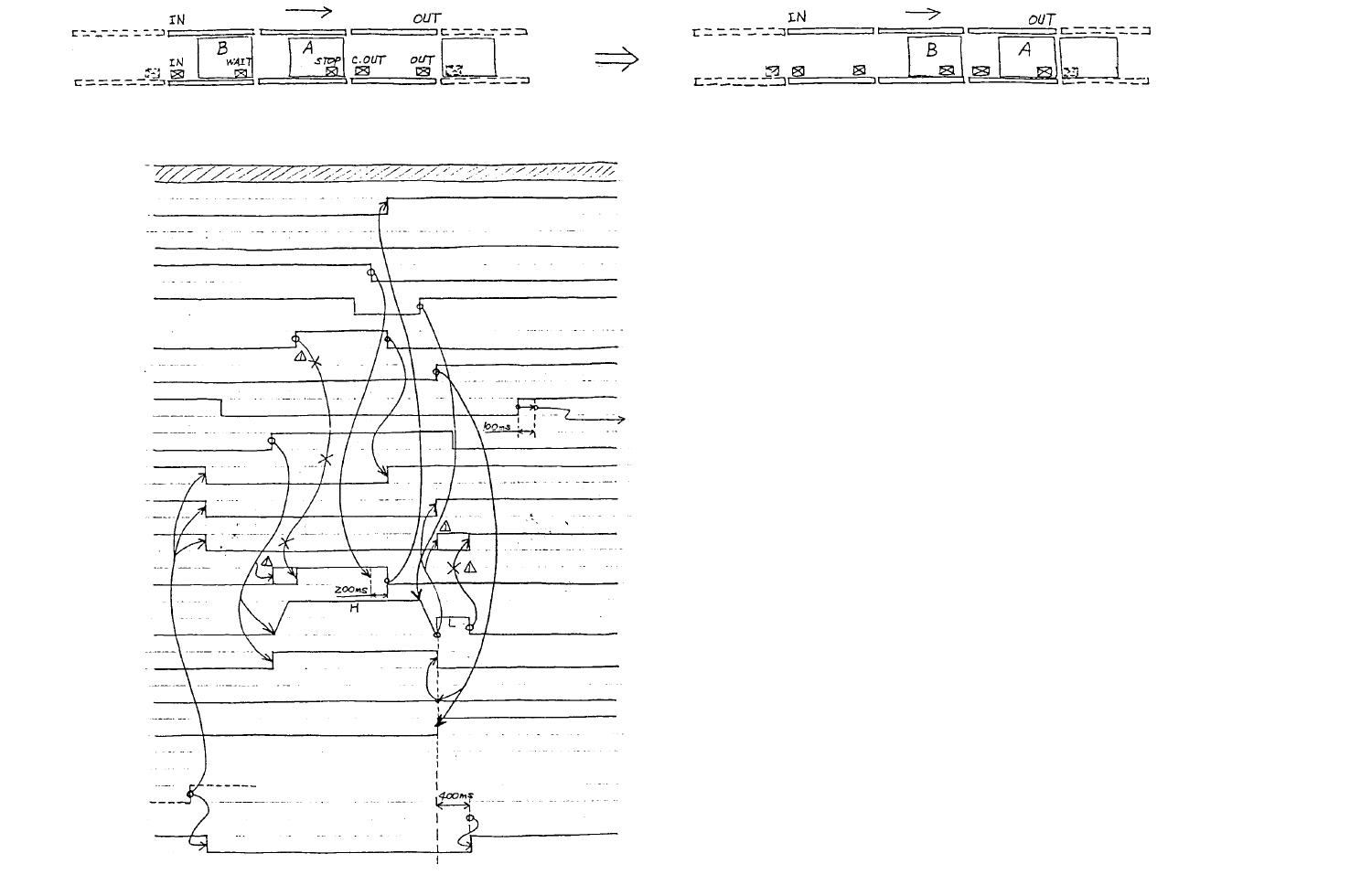

This chart shows that production of board A has been completed when board B is set standby in the IN buffer and the next stage is set ready.
(6)
B.A.IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
BU UP sensor
BU DN sensor
Stopper
Backup
External shape
cramp 1 (X)
IN motor
CENT motor
OUT motor
Ready IN
B.A.OUT
Continuous
production
(Carriage start)
External shape
cramp 2 (Y)
Carriage, completed
