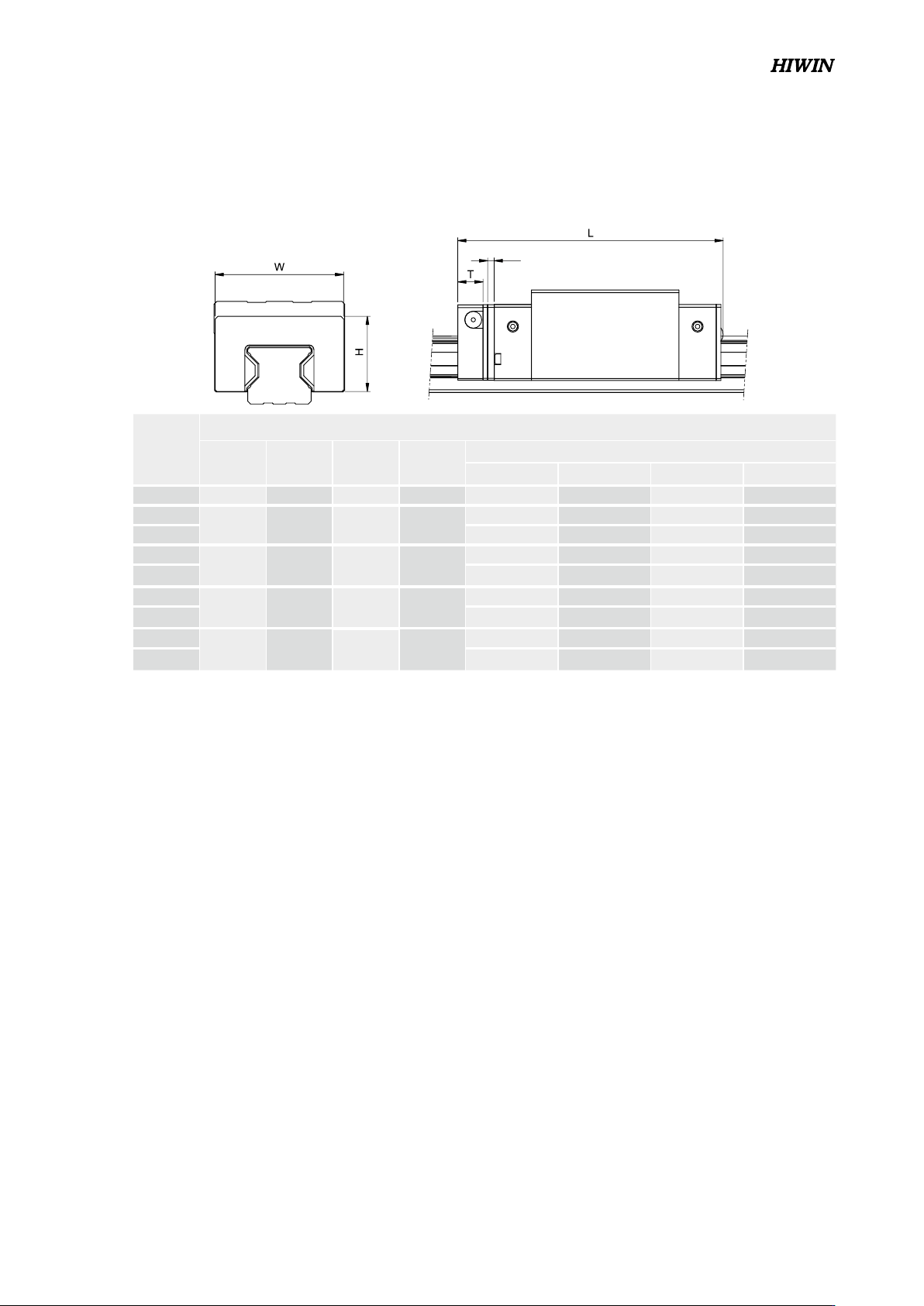

上银直线导轨.pdf - 第185页
E2 型式 自潤型直線導軌 ( 3) R G 系列 V ( 4) Q H 系列 T L V H W 型號 E2 自 潤 模組 尺 寸 W H T V L SS ZZ DD KK RG15C 33.0 19. 2 12 . 5 3.5 8 4. 0 (8 5 .2 ) 86.0 (88. 2) 8 8 . 4 ( 8 9. 6 ) 90. 4 (92.6) RG 2 0C 4 3.4 24 .2 12 .5 3.5 10 2 (10 3 …
2-11-7 E2 型式自潤式直線導軌尺寸表
(1) HG 系列
T
L
V
H
W
(2) EG 系列
型號
E2 自潤模組尺寸
W H T V
L
SS ZZ DD KK
EG15S
33.3 18.7 11.5 3.0
54.6 (55.8) 56.2 (58.4) 58.6 (59.8) 60.2 (62.4)
EG15C
71.3 (72.5 ) 72.9 (75.1) 75.3 (76.5) 76.9 (79.1)
EG20S
41.3 20.9 13.0 3.0
66.0 (68.0) 67.6 (70.6) 70.0 (72.0) 71.6 (74.6)
EG20C
85.1 (87.1) 86.7 (89.7) 89.1 (91.1) 90.7 (93.7)
EG25S
47.3 24.9 13.0 3.0
75.1 (77.1) 77.1 (80.1) 79.1 (81.1) 81.1 (84.1)
EG25C
98.6 (100.6) 100.6 (103.6) 102.6 (104.6) 104.6 (107.6)
EG30S
59.3 31.0 13.0 3.0
85.5 (87.5) 87.5 (
90.5 ) 89.5 (91.5) 91.5 (94.5)
EG30C
114.1 (116.1) 116.1 (119.1) 118.1 (120.1) 120.1 (123.1)
EG35S
68.0 33.5 13.0 3.0
91.0 (93.0) 94.0 (97.0) 95.0 (97.0) 98.0 (101.0)
EG35C
124.0 (126.0) 127.0 (130.0) 128.0 (130.0) 131.0 (134.0)
型號
E2 自潤模組尺寸
W H T V
L
SS ZZ DD KK
HG15C
32.4 19.5 12.5 3.0 75.4 (75.6) 82.5 (82.7) 82.0 (82.2) 89.1 (89.3)
HG20C
43.0 24.4 13.5 3.5
93.5 (94.4) 97.5 (98.5) 98.5 (99.4) 102.5 (103.5)
HG20H
108.2 (109.1) 112.2 (113.2) 113.2 (114.1) 117.2 (118.2)
HG25C
46.4 29.5 13.5 3.5
100.0 (100.5) 104.0 (105.0) 105.0 (105.5) 109.0 (110.0)
HG25H
120.6 (121.1) 124.6 (125.6) 125.6 (126.1) 129.6 (130.6)
HG30C
58.0 35.0 13.5 3.5
112.9 (113.9) 120.4 (121.4) 120.3 (121.3) 127.8 (126.8)
HG30H
135.9 (136
.9) 143.4 (144.4) 143.3 (144.3) 150.8 (149.8)
HG35C
68.0 38.5 13.5 3.5
127.9 (128.9) 135.4 (136.4) 135.3 (136.3) 142.8 (143.8)
HG35H
153.7 (154.7) 161.2 (162.2) 161.1 (162.1) 168.6 (169.6)
HG45C
82.0 49.0 16.0 4.5
157.2 (157.2) 166.5 (166.5) 167.2 (167.2) 176.5 (176.5)
HG45H
189.0 (189.0) 198.3 (198.3) 199.0 (199.0) 208.3 (208.3)
HG55C
97.0 55.5 16.0 4.5
183.9 (183.9) 193.6 (193.6) 194.3 (194.3) 204.0 (204.0)
HG55H
222.0 (222.0) 231.7 (231.7) 232.4 (232.4) 242.1 (2
42.1)
HG65C
121.0 69.0 16.0 4.5
219.2 (219.2) 224.7 (224.7) 228.2 (228.2) 233.7 (233.7)
HG65H
278.6 (278.6) 284.1 (284.1) 287.6 (287.6) 293.1 (293.1)
註 : ( )為滑塊最大長度，包含螺絲、刮油片唇部等。
註 : ( )為滑塊最大長度，包含螺絲、刮油片唇部等。
G99TS03-1803
181
E2型式
自潤型直線導軌
(3) RG 系列
V
(4) QH 系列
T
L
V
H
W
型號
E2 自潤模組尺寸
W H T V
L
SS ZZ DD KK
RG15C
33.0 19.2 12.5 3.5 84.0 (85.2) 86.0 (88.2) 88.4 (89.6) 90.4 (92.6)
RG20C
43.4 24.2 12.5 3.5
102 (103.2) 104.0 (106.2) 106.4 (107.6) 108.4 (110.6)
RG20H
122 (123.2) 124.0 (126.2) 126.4 (127.6) 128.4 (130.6)
RG25C
46.8 29.2
13.5
3.5
114.9 (116.7) 116.9 (119.9) 119.3 (121.1) 121.3 (124.3)
RG25H 131.4 (133.2) 133.4 (136.4) 135.8 (137.6) 137.8 (140.8)
RG30C
58.8 34.9 13.5 3.5
126.8 (128.6) 129.8 (132.8) 131.6 (133.4) 134.6 (137.6)
RG30H 148.8 (150.6) 151.8 (154.8) 153.6 (155.4) 156.6 (159.6)
RG35C
68.8 40.3 13.5 3.5
141 (143.7) 144.0 (148.0) 146.0 (148.7) 149.0 (153.0)
RG35H 168.5 (171.2) 171.5 (175.5) 173.5 (176.2) 176.5 (180.5)
RG45C
83.8 50.2 16.0 4.5
173.7 (175.3) 176.7 (180.7) 180.9 (182.5) 183.9 (187.9)
RG45H 207.5 (209.1) 210.5 (214.5) 214.7 (216.3) 217.7 (221.7)
RG55C
97.6 58.4 16.0 4.5
204.2 (205.8) 207.2 (211.2) 211.4 (213) 214.4 (218.4)
RG55H 252.5 (25 4.1) 255.5 (259.5) 259.7 (261.3) 262.7 (266.7)
RG65C
121.7 76.1
16.0
4.5
252.5 (254.5) 255.5 (260.5) 261.3 (263.3) 264.3 (269.3)
RG65H 315.5 (317.5) 318.5 (323.5) 324.3 (326.3) 327.3 (332.3)
型號
E2 自潤模組尺寸
W H T V
L
SS ZZ DD KK
QH15C 32.4 19.5 12.5 3.0 75.4 (75.6) 82.2 (82.7) 82.0 (82.2) 88.8 (89.3)
QH20C
43.0 24.4 13.5 3.5
93.1 (94.2) 97.2 (98.5) 98.1 (99.2) 102.2 (103.5)
QH20H 107.8 (108.9) 111.9 (113.2) 112.8 (113.9) 116.9 (118.2)
QH25C
46.4 29.5 13.5 3.5
100.2 (101.5) 104.7 (106.0) 105.2 (106.5) 109.7 (111.0)
QH25H 120.8 (122.1) 125.3 (126.6) 125.8 (127.1) 130.3 (131.6)
QH30C
58.0 35.0 13.5 3.5
112.9 (113.9) 120.1 (121.4) 120.3 (121.3) 127.5 (128.8)
QH30H 135.9 (136.9) 143.1 (144.4) 143.3 (144.3) 150.5 (151.8)
QH35C
68.0 38.5 16.0 3.5
129.3 (129.7) 133.5 (134.0) 134.3 (134.7) 138.5 (139.0)
QH35H 155.1 (155.5) 159.3 (159.8) 160.1 (160.5) 164.3 (164.8)
QH45C
82.0 49.0 16.0 4.5
158.3 (158.3) 163.7 (163.7) 165.5 (165.5) 170.9 (170.9)
QH45H 190.1 (190.1) 195.5 (195.5) 197.3 (197.3) 202.7 (202.7)
註 : ( )為滑塊最大長度，包含螺絲、刮油片唇部等。
註 : ( )為滑塊最大長度，包含螺絲、刮油片唇部等。
G99TS03-1803
182
型號
E2 自潤模組尺寸
W H T V
L
SS ZZ DD KK
QR 20C
43.4 24.2 12.5 3.5 102.0 (103.2) 104.0 (106.2) 106.4 (107.6) 108.4 (110.6)
QR 25C
46.8 29.2 13.5 3.5
114.9 (116.7) 116.9 (119.9) 119.3 (121.1) 121.3 (124.3)
QR 25H
129.9 (131.7) 131.9 (134.9) 134.3 (136.1) 136.3 (139.3)
QR 30C
58.8 34.9
13.5
3.5
126.8 (128.6) 129.8 (132.8) 131.6 (133.4) 134.6 (137.6)
QR 30H
148.8 (150.6) 151.5 (154.8) 153.6 (155.4) 156.6 (159.6)
QR 35C
68.8 40.3 13.5 3.5
141.0 (143.7) 144.0 (148.0) 146.0 (148.7) 149.0 (153.0)
QR 35H
168.5 (171.2) 171.5 (175.5) 173.5 (176.2) 176.5 (180.5)
QR 45C
83.8 50.2
16.0
4.5
173.7 (175.3) 176.7 (180.7) 180.9 (182.5) 183.9 (187.9)
QR 45H
207.5 (209.1) 210.5 (214.5) 214.7 (216.3) 217.7 (221.7)
(5) QR 系列
V
註 : ( )為滑塊最大長度，包含螺絲、刮油片唇部等。
G99TS03-1803
183
