Spare Parts and Tools
158
VTK-TR-BA-072e-1 - User Manual MDS 358X Series

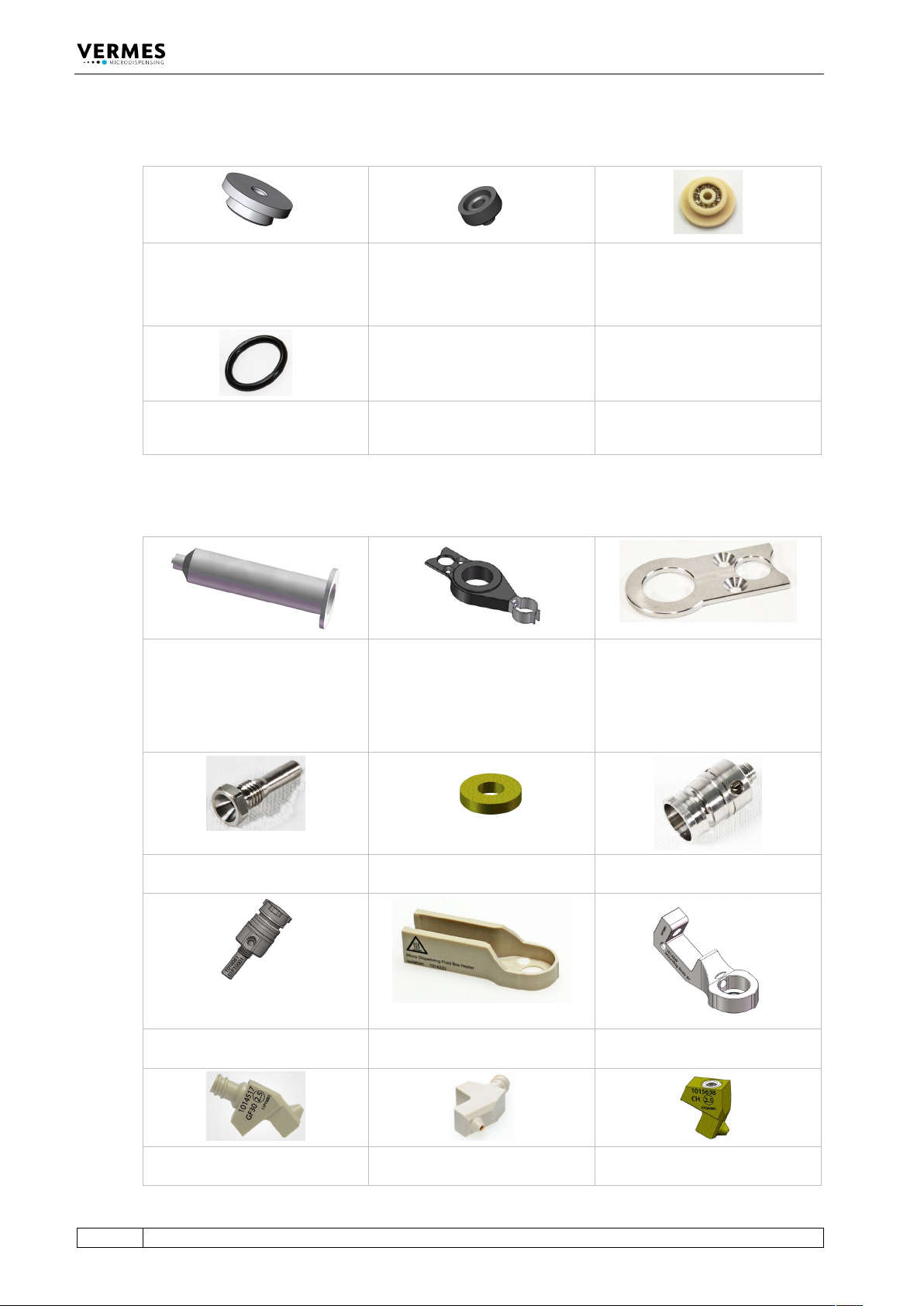

13.3 Sealings
Tappet sealing
PE Order no. 1007067
PTFE Order no. 1010247
Tappet sealing LX CeTeDur 170
Order no. 1013327
(no tappet centering piece needed)
Other variants on request
Tappet sealing HT
Order no. 1015823
O-Ring-BY
NBR Order no. 1014226 (black)
Viton Order no. 1014385 (green)
Tab. 35: Sealings
13.4 Supply Unit
Cartridge
3 ccm Order no. 1007091
5 ccm Order no. 1012914
10 ccm Order no. 1008361
30 ccm Order no. 1007087
(also available nontransparent for light or
UV light)
Cartridge Holder TA-MDFH-BA
Order no. 1014722
(with inlets for 3/5/10/30 cc cartridges)
Cartridge Holder TA
30 ccm Order no. 1014057
10 ccm Order no. 1014056
5 ccm Order no. 1014055
3 ccm Order no. 1014054
Connector BY
Order no. 1014234
Tappet Centering Piece PEEK
Order no. 1009419
Fluid Box Body MDF 3078-BY
Order no. 1014224
Fluid Box Body MDF 3078-BY +10mm
Order no. 1016061
MDFH Isolation Body BY
Order no. 1014232
Mounting Body BY
Order no. 1014369
Cartridge Base CHI-HT
Order no. 1014517
Cartridge Base CHI
Order no. 1014060
Cartridge Base CH
Order no. 1015638
Spare Parts and Tools
VTK-TR-BA-072e-1 - User Manual MDS 358X Series
159
Fluid Box Connector CH-HO
PEEK Order no. 1014352
Brass Order no. 1015084
Wirbalit Order no. 1015097
Adapter Safe for compressed air
3 ccm Order no. 1014953
5 ccm Order no. 1014952
10 ccm Order no. 1014951
30/55 ccm Order no. 1014950
Cartridge CC/30 heat resistant
30 ccm Order no. 1007087
(white, heat resistant until 180 °C)
Heater MDH-48-BY-BH
Order no. 1015224
Fluid Box Connector CH-HT-NPT
PEEK Order no. 1015145
Tightening Screw
PEEK Order no. 1013487
Stainless Steel Order no. 1010027
Double Channel Fluid Box Body MDF
3078-BY
Order no. 1016261
Tab. 36: Supply unit
Spare Parts and Tools
160
VTK-TR-BA-072e-1 - User Manual MDS 358X Series

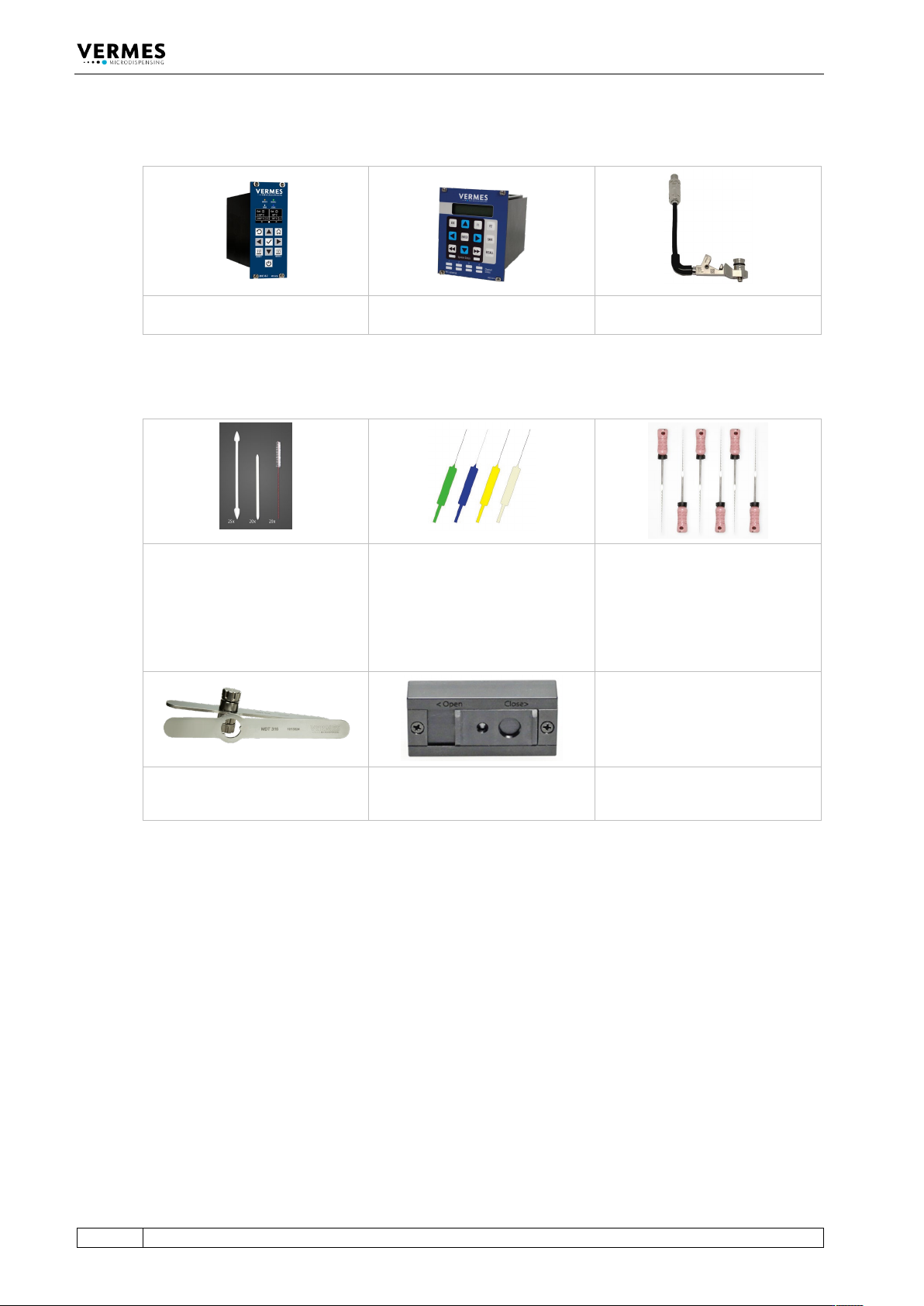

13.5 Heaters and Heater Controllers
MHC 48-2
Order no. 1015680
MFC 3000
Order no. 1014981
Heater MDH-48-BY
Order no. 1014231
Tab. 37: Heaters and Heater Controllers
13.6 Cleaning Tools
CTK – Cleaning Tool Kit 2.5
Order no. 1014632
consists of:
25 pcs. Fluid Box Cleaners (P: 1013266)
20 pcs. Cleaning Rods 2.5 (P: 1014631)
20 pcs. Fluidic Brushes 2.5 (P: 1014422)
(P = Order no. for only these parts)
Nozzle Insert Cleaning Wires
size 100 (blue) Order no. 1011208
size 120 (white) Order no. 1011488
size 150 (green) Order no. 1010380
size 200 (orange) Order no. 1010379
size 300 (yellow) Order no. 1012208
size 400 (red) Order no. 1012209
size 500 (gray) Order no. 1015396
Set – NI Cleaning Reamers
Order no. 1014627
(6 pcs.)
MDT 316 - Nozzle Insert Cleaning Tool
Order no. 1013324
MDT 324 - Nozzle Insert Cleaning
Holder
Order no. 1014310
Tab. 38: Cleaning Tools
