Control Unit MDC
20
VTK-TR-BA-072e-1 - User Manual MDS 358X Series
4 Control Unit MDC
This chapter contains relevant information about the control unit. It describes the menu
structure, keypad and functions of the control unit.
4.1 Technical Data
Value
Dimensions
128 mm H x 102 mm W x 173 mm D (w/o Kabel)
(see dimensional drawing, Page 165)
3 RU x 20 HP
Weight
ca. 1500 g
Supply Voltage
48 V DC
Current Consumption
Max. 8 A
During start-up, this value can increase by a factor
of 5 (start-up peak).
Ambient Temperature
10 °C - 50 °C
Air Humidity
The relative humidity rH might not surpass 80% at
31 °C or 50% at 50 °C (connect linearly for other
temperatures).
Casing Type
Plug-in case for 19“ rack
Color of Casing
Black, with lighter front panel
Ventilation
Convection
Internal Storage Locations:
10
Display Lines
2 lines with 16 characters each
Display Color
White with background lighting
Keypad
12 softkeys
Color of Keys
Blue, beige
Control Lamps (Front)
1x Heating circuit (red)
1x Maintenance (red)
1x Cooling/Adjust OK (green)
1x Attention/Adjust not OK (red)
Control Lamps (Back)
1x Illuminated power lamp
Plug Contacts (Back)
1x Mains plug (48 V DC)
1x 9 pin Sub-D RS-232C
1x 15 pin Sub-D PLC
1x AUX-socket 24V
1x Sensor socket
1x Actuator socket
1x Socket for heating
1x Socket for cooling
Control Unit MDC
VTK-TR-BA-072e-1 - User Manual MDS 358X Series
21
4.2 Front Side

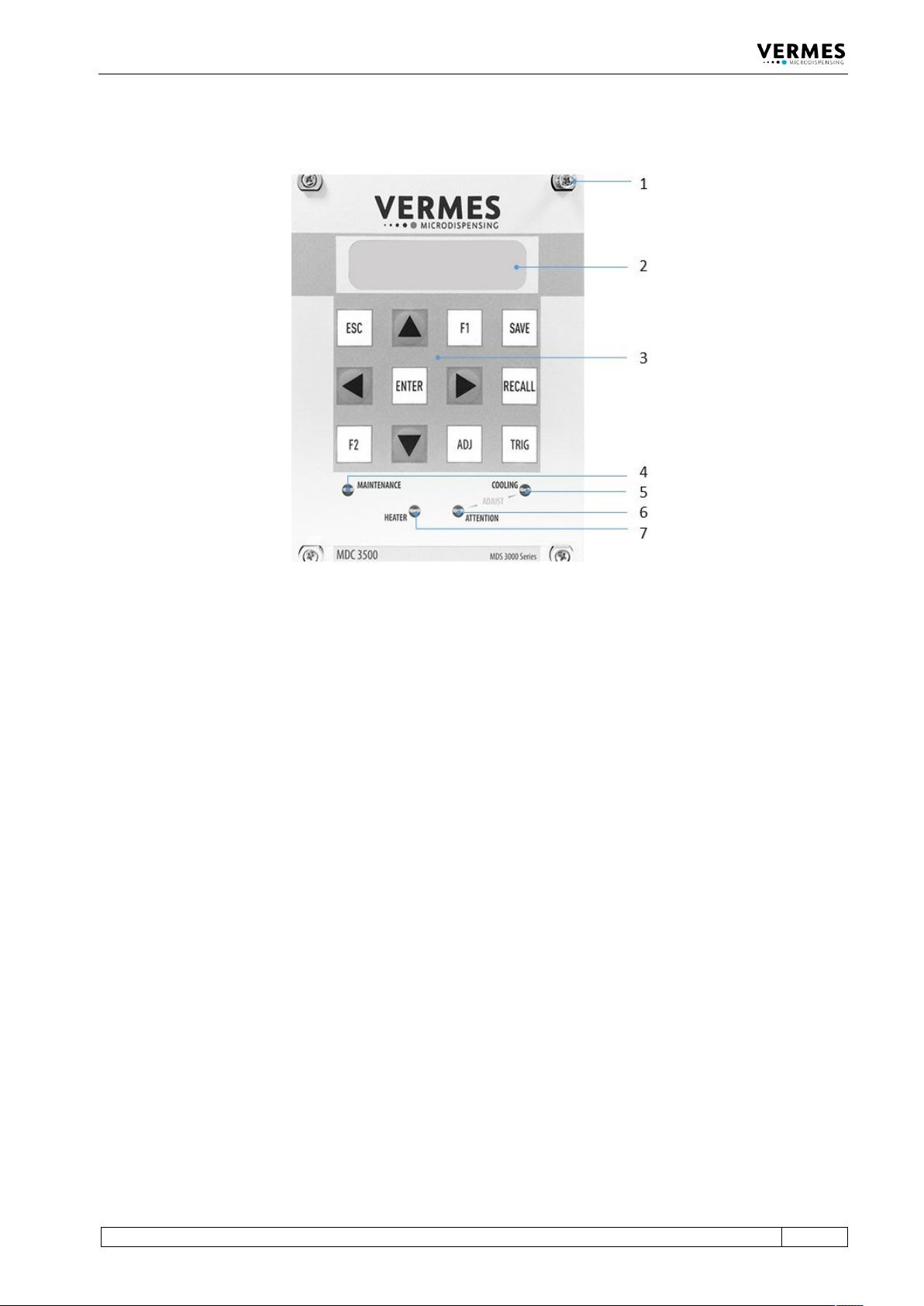

Fig. 1: Front Side
1 Mounting hole
2 LC display
3 Keypad with 12 soft keys
4 Control lamp for maintenance
“red”
5 Control lamp for cooling/adjust
“green”
6 Control lamp for attention/adjust
“red”
7 Control lamp for status of
heating “red”
LC display:
Data, service intervals and menu options are shown in the two lines of the illuminated LC display
(LCD = “liquid crystal display”). The current menu option appears in the upper line. The lower line
contains the current parameter value for dispensing, according to numerical data to be modified.
Keypad with 12 softkeys:
Menu options to control the system are selected by means of these keys.
Details for changing parameters etc. are explained in a following chapter (see paragraph 4.4,
page 25).
Control lamp for maintenance:
As soon as this lamp lights up, it is recommended to return the valve to the manufacturer (or
licensed subcontractor) for regular periodic maintenance.
Control lamp for cooling/adjust (green):
This green LED has two purposes.
During the adjust, as soon as the LED is ON, the adjust value is OK and can be confirmed by
[enter].
Control Unit MDC
22
VTK-TR-BA-072e-1 - User Manual MDS 358X Series
Outside of the adjust, it indicates the intensities of cooling (for details, see paragraph 4.5.3.1,
page 31).
• More effective cooling, once the actuator temperature goes over 10 °C above the target
temperature - LED flashes
• “normal” cooling, if the actuator temperature is within 10 °C above the target temperature -
LED ON
Be aware that the ON/OFF status of the cooler is not shown by means of this lamp.
Control lamp for attention/adjust (red):
This red LED has two purposes.
During the adjust, the LED lights up, if you screw the adjust screw too far. You have to screw it
out according to the instructions of this manual (see paragraph 6.5 "The Adjust Process",
page 57).
Outside of the adjust, the LED is ON, whenever the MDC has detected an error.
Control lamp for status of heating:
This red LED indicates the activity of the heating (for more details, see paragraph 4.5.3.2,
page 31).
The heater is ON, and the target temperature is reached and stable – LED ON
The heater is deactivated – LED OFF
The heater is ON, but the target temperature is not yet reached – LED flashes
