General Instructions VTK - TR -BA- 072e - 1 - User Manua l MDS 358X S eries 15 3.3 Tools The follow ing tools ar e requir ed to install a nd to op erate the MDS: • MDT 301 - Univer sal Tool (O rder no . 1010208) • MDT 30…
General Instructions
14
VTK-TR-BA-072e-1 - User Manual MDS 358X Series
3.2.3 Abbreviations
Abbr. Full Name
CTF
Ceramics Tappet Flat
CTK
Cleaning Tool Kit
NI
Nozzle Insert
NU
Nozzle Unit
NU-fix
Nozzle Unit with fixation
NAN
Nozzle Adjustment Nut
NAN-fix
Nozzle Adjustment Nut with fixation
NFN
Nozzle Fixation Nut
MDC
Controller (MicroDispensingControl unit)
MDF
Fluid box (MicroDispensingFluid box)
MDS
MicroDispensingSystem
MDV
Valve (MicroDispensingValve)
MDX
Supply unit
PLC
Programmable Logic Controller
POD
Point of Dispensing
RTC
Real-time clock
TG
Tappet Guidance
TTF
Tungsten carbide Tappet Flat
Tab. 5: Abbreviations
General Instructions
VTK-TR-BA-072e-1 - User Manual MDS 358X Series
15
3.3 Tools
The following tools are required to install and to operate the MDS:
• MDT 301 - Universal Tool (Order no. 1010208)
• MDT 303 - Nozzle Insert Changing Tool (Order no. 1007083)
• MDT 306 - Torque Wrench Tool VM black (Order no. 1015062)
• MDT 307 - Adjust Tool TA (Order no. 1014143)
• MDT 316 - Nozzle Insert Cleaning Tool (Order no. 1013324)
• MDT 323 - Nozzle Insert – Squeezing Out Tool TA (Order no.1014283)
• MDT 324 - Nozzle Insert Cleaning Holder (Order no.1014310)
• MDT 327 - Multi-Function Tool (Order no.1014440)
• MDT 328 - Tappet Sealing Changing Tool (Order no.1014503)
• Hexagon Key Set (Order no. 1012993)
When you order tools, always specify the order number of the required item.
IMPORTANT NOTE
No foreign tools
Do not use auxiliary tools or foreign products, otherwise damages to the equipment might be
possible.
General Instructions
16
VTK-TR-BA-072e-1 - User Manual MDS 358X Series

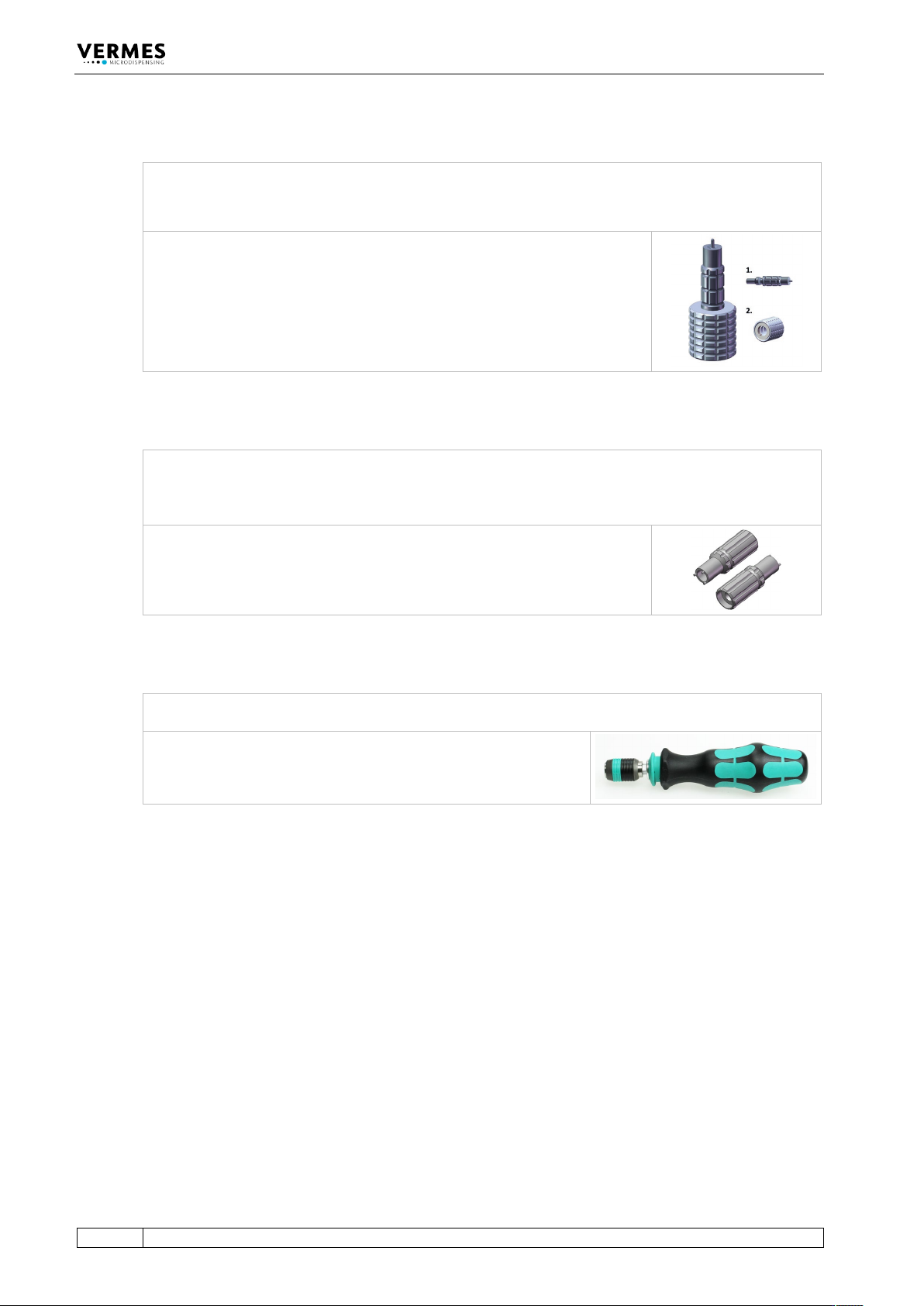

3.3.1 MDT 301 - Universal Tool
The tool MDT 301 comprises two subcomponents screwed to each other:
• “Sealmounter” with a mandrel to insert the tappet sealing (1.)
• “Adjustment grip” with a receptacle for the nozzle adjustment nut (2.)
Intended Purpose:
1. Fixing of tappet sealing and tappet centering piece
2. Holding nozzle insert to place it in the tappet guidance (sealmounter)
3. It may also be used to execute the general adjust (alternatively to tool
MDT 327)
Tab. 6: MDT 301 - Universal Tool (Order no. 1010208)
3.3.2 MDT 303 - Nozzle Insert Changing Tool
The MDT 303 is required for the exchange of the nozzle insert. The 3 pins of the MDT 303 grip into the
receptacle bores of the tappet guidance in order to unscrew the tappet guidance from the nozzle
adjustment nut.
The other end is used when mounting LX tappet sealings
Intended Purpose:
1. Screwing apart nozzle adjustment nut and tappet guidance when
changing the nozzle insert
2. Mounting LX tappet sealings
Tab. 7: MDT 303 - Nozzle Insert Changing Tool (Order no. 1007083)
3.3.3 MDT 307 - Adjust Tool TA Hot Melt Handle
The MDT 307 can be used in combination with the bit BitVM-A Tightening Screw, magnetic (order no.
1014519) to perform the adjust with a valve capable of the top adjust function.
Intended Purpose:
1. Performing the top adjust
Tab. 8: MDT 307 - Adjust Tool TA Hot Melt Handle (Order no. 1014143)
