3 Installation
3.6 Fitting the Reject Bin Sensor
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
101
Installation
Attaching the sensor
► Fix the sensor to the retaining bracket using two
of the stainless steel screws (1) (shown in the
diagram as plastic screws).
NOTICE!
Use the sensor at the short end of the cable for
all locations without MTC. Use the sensor at the
long end of the cable for location 2 with MTC
(possible for X3 S and X4 S).
.
Fixing the retaining bracket
► Fix the retaining bracket to the reject bin bracket
at the points marked (1) and (2).
Connecting the power
► Connect the power to the COT insert at con-
nector "X2*n" (1).
► When using an X4 S machine with MTC at loca-
tion 2, the long cable from location 3 is run
through the machine base to location 2 and
sensor S2 is fitted to the large reject bin.
3 Installation
3.7 Fitting the Calibration Part Holder to the X4i S
102 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
Insert the reject bin
► Insert the reject bin (1) (shown using example of
location 1).
Insert the reject bin
► Hook the reject bin (1) into the bracket next to the
IC camera (2) and the FC camera (3) (shown us-
ing example of location 3).
3.7 Fitting the Calibration Part Holder to the X4i S
Machines of types X3 S and X4 S already have the calibration part holder prefitted. Machines of
type X4i S need to have this retrofitted.
Calibration part holder
► Fit the calibration part holder to all locations at
which a stationary camera has been installed in
type X4i S machines.
3 Installation
3.8 Performing Final Work
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
103
3.8 Performing Final Work
► If you have inserted the "reject bin for TwinHead" [03072806-xx], hook the waste tape chute
back into place.
3.8.1 Machines of Types X3 S and X4 S
► Remove any objects from the travel range of the gantry and placement head.
► Start the machine and move the component trolley back into the machine.
► Continue by calibrating the camera(s).
3.8.2 Type X4i S Machines

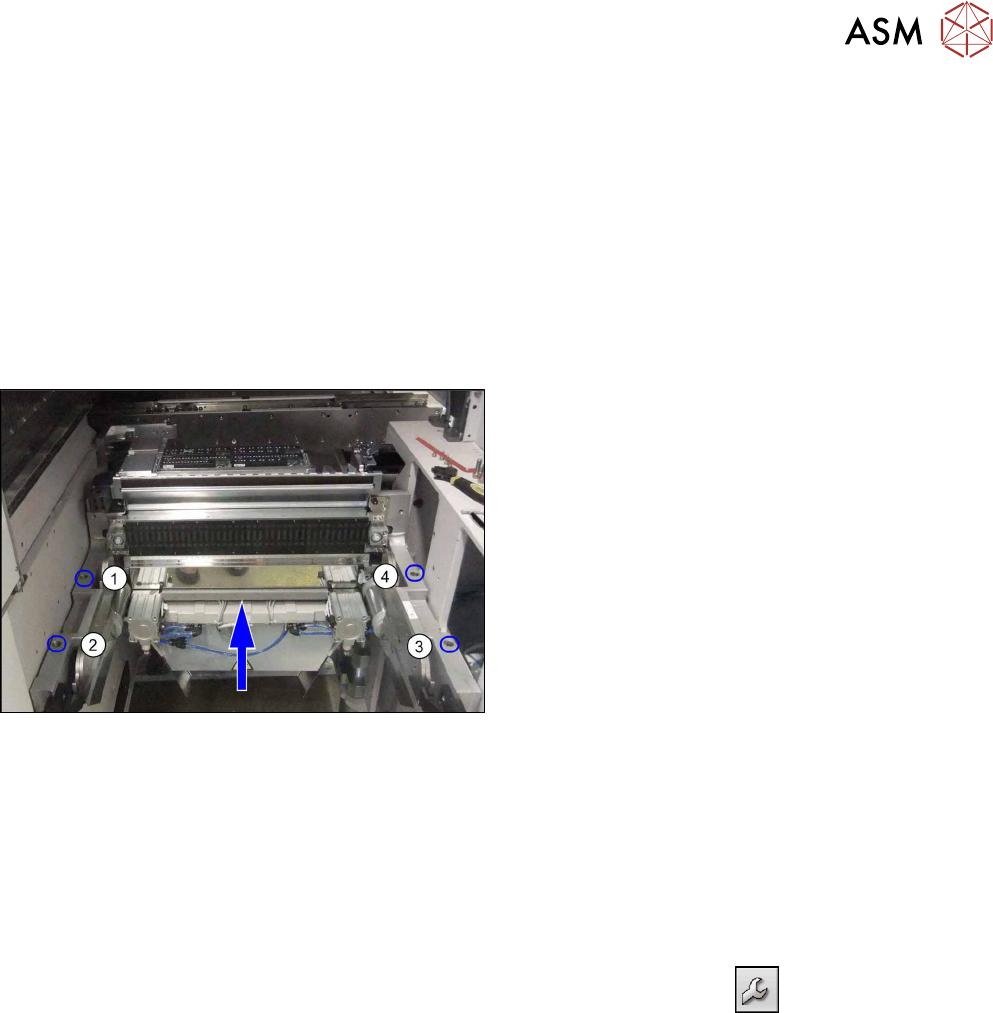

Fitting the COT insert
► Push the COT insert exactly to the second table
position and screw tight at positions (1) to (4).
► Hook the waste tape chute back into place.
► Reinsert the side cover and fix into place.
► Remove any objects from the travel range of the gantry and placement head.
► Start the machine and move the component trolley back into the machine.
► Continue by calibrating the camera(s).
3.8.3 Calibrating the camera (SR70x.xx)
► Switch over to operator level SIPLACE (customer).
► Select Service (configure, update and calibrate the machine)
--> Machine cali-
bration.
► Select Head and cameras and click on Next.
► Select the relevant Gantry and click on Next.
► In the next step, the preconditions are checked. If these are fulfilled, click on Start.
3.9 Software Settings
See: 4.2 "Configuration of Stationary Camera with SIPLACE PRO" [}105]
