3 Installation
3.2 Fitting the Camera
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
83
3.2.1.2 Coding the DIP Switch (6 Pin)
Setting the DIP Switches
► Set the DIP switch (1) on the camera.
S Setting for gantry* Comments
1 2 3 4
1 OFF OFF OFF OFF Reset – Do not change this set-
ting!
2 OFF ON OFF ON Gantry ID 0
3 OFF OFF ON ON Gantry ID 1
4 OFF OFF OFF OFF OFF = SMD LED
ON = Standard LED
This switch is delivered with a
fixed presetting. Do not change
this setting!
5 OFF OFF OFF OFF CAN terminator - do not change
this setting!
6 x X X X X X X x x = OFF: FC camera (type 25)
x = ON: IC camera (type 33/36)
* Not all gantries may be available, depending on the machine type.
3.2.2 Fitting the IC Camera Type 33
The camera is fixed at two spacer plates, which have already been screwed to the screw fixing
points on the machine base.
The procedure for fitting these spacer plates and for fixing the cameras is in principle the same at
all locations. Any differences are indicated in the following section.
► Before installation, make sure that the jumper setting for the camera to be fitted is correct (see
3.2.1 "Adjusting the Camera Jumper Setting" [}82]).
See also
2 3.2.3.1 "Fitting the Spacer Plates" [}88]
2 3.2.2.2 "IC Camera Type 33: Fixing the Camera Module" [}87]
3 Installation
3.2 Fitting the Camera
84 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
3.2.2.1 Fitting the Spacer Plates
The spacer plates are fixed to the relevant screw fixing points in the machine base. Narrow spacer
plates are used at locations 2 and 3, while wide spacer plates are used at locations 1 and 4.
Screw fixing points at location 2 and 3
Fig.5: Screw fixing points at location 2 (left) and 3 (right)
1. Screw fixing points for the reject bin
2. Screw fixing points for the IC camera type 33
3. Screw fixing points for the IFC camera type 25
The screw fixing points at location 2 and 3 are mirrored. Use the left holes at location 2.
Screw fixing points at location 1 and 4
Fig.6: Screw fixing points at location 1 (left) and 4 (right)
1. Screw fixing points for the IC camera type 33
3 Installation
3.2 Fitting the Camera
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
85

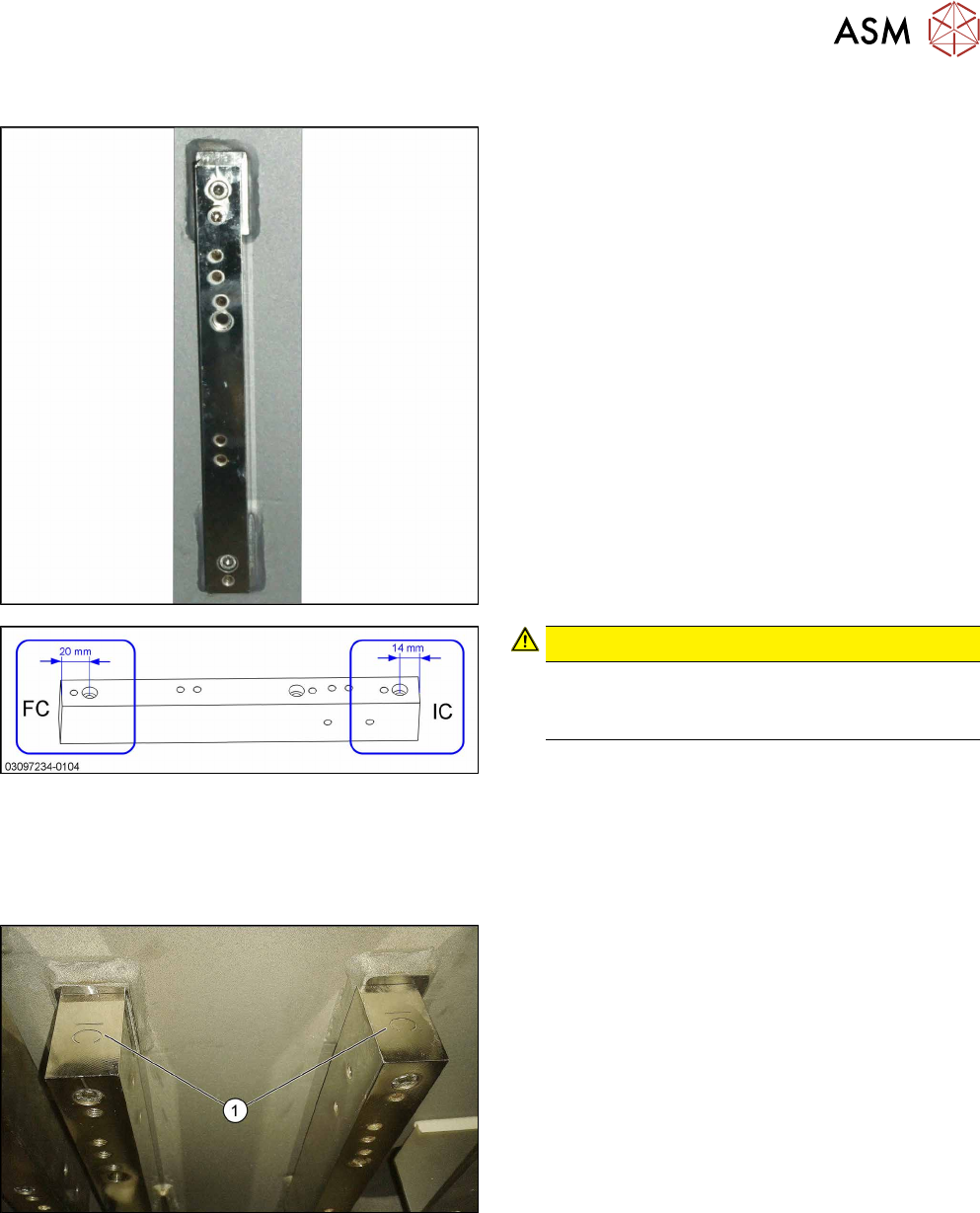

Spacer plates for locations 2 and 3
Narrow spacer plates for locations 2 and 3
Correct labeling of spacer plates
CAUTION!
Incorrect labeling
In a few cases, these spacer plates are supplied
with incorrect labeling.
.
► Compare your spacer plates with the diagram.
If the label does not match the diagram, correct
the label.
●
– FC: This side must be on top for FC cameras
and Q10 magazines (Smart Pin Support).
– IC: This side must be on top for IC cameras.
IC top
IC and FC are marked on the top and bottom of the
spacer plates.
When fitting an IC camera, make sure that the IC let-
tering (1) faces upwards.
