3 Installation
3.2 Fitting the Camera
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
85
Spacer plates for locations 2 and 3
Narrow spacer plates for locations 2 and 3
Correct labeling of spacer plates
CAUTION!
Incorrect labeling
In a few cases, these spacer plates are supplied
with incorrect labeling.
.
► Compare your spacer plates with the diagram.
If the label does not match the diagram, correct
the label.
●
– FC: This side must be on top for FC cameras
and Q10 magazines (Smart Pin Support).
– IC: This side must be on top for IC cameras.
IC top
IC and FC are marked on the top and bottom of the
spacer plates.
When fitting an IC camera, make sure that the IC let-
tering (1) faces upwards.
3 Installation
3.2 Fitting the Camera
86 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
Spacer plates for locations 1 and 4
Spacer plates
Wide spacer plate for locations 1 and 4 with plug-in
screws for fixture to machine frame.
Fitting the spacer plates
Fig.7: Left: location 2 and 3; right: location 1 and 4
► Use the screws (M6x45) to fix the spacer plates to the screw fixing points in the machine
frame (1). Make sure that the IC label indicates upwards.
► At position (2), tighten the two screws M6x25 [03042575-xx] for the camera suspension
holder, until the screw shaft protrudes approx. 15mm above the mount.
3 Installation
3.2 Fitting the Camera
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
87
3.2.2.2 IC Camera Type 33: Fixing the Camera Module

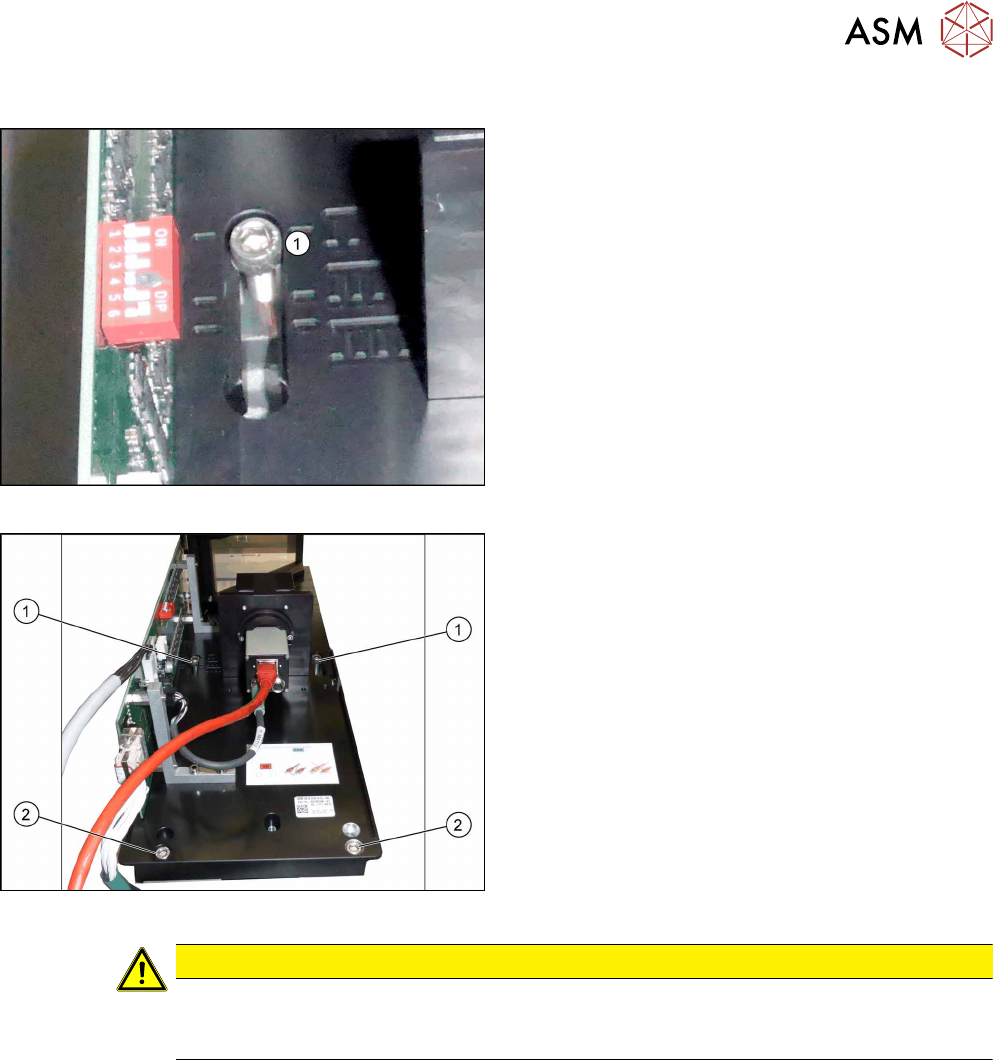

Markings for different installation heights (1)
► Hook the camera on its screws onto the spacer
plates.
Lower section of camera
► Hook the upper holes (1) on the lower section of
the camera onto these two screws. (key hole
principle for cameras of type 33 from version 06.)
► Use the two lower screws (2) to adjust the lower
section of the camera to the correct installation
height at position I (1) and tighten all four screws.
CAUTION
Observe the installation height
When fitting the camera, observe the correct installation height. Otherwise there is the
danger of a crash!
Locations 2 and 3
► If you do not have to install an FC camera at the same location, continue by attaching the
camera cables (see section 3.3 "Connecting the Cable" [}91]).
► If you need to install an FC camera at the same location, continue with section 3.2.3 "FC Cam-
era Type 25 - Locations 2 and 3 - Installation" [}88]
Locations 1 and 4
► Continue by attaching the camera cables (see section 3.3 "Connecting the Cable" [}91]).
