3 Installation
3.8 Performing Final Work
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
103
3.8 Performing Final Work
► If you have inserted the "reject bin for TwinHead" [03072806-xx], hook the waste tape chute
back into place.
3.8.1 Machines of Types X3 S and X4 S
► Remove any objects from the travel range of the gantry and placement head.
► Start the machine and move the component trolley back into the machine.
► Continue by calibrating the camera(s).
3.8.2 Type X4i S Machines
Fitting the COT insert
► Push the COT insert exactly to the second table
position and screw tight at positions (1) to (4).
► Hook the waste tape chute back into place.
► Reinsert the side cover and fix into place.
► Remove any objects from the travel range of the gantry and placement head.
► Start the machine and move the component trolley back into the machine.
► Continue by calibrating the camera(s).
3.8.3 Calibrating the camera (SR70x.xx)
► Switch over to operator level SIPLACE (customer).
► Select Service (configure, update and calibrate the machine)
--> Machine cali-
bration.
► Select Head and cameras and click on Next.
► Select the relevant Gantry and click on Next.
► In the next step, the preconditions are checked. If these are fulfilled, click on Start.
3.9 Software Settings
See: 4.2 "Configuration of Stationary Camera with SIPLACE PRO" [}105]
3 Installation
3.9 Software Settings
104 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016

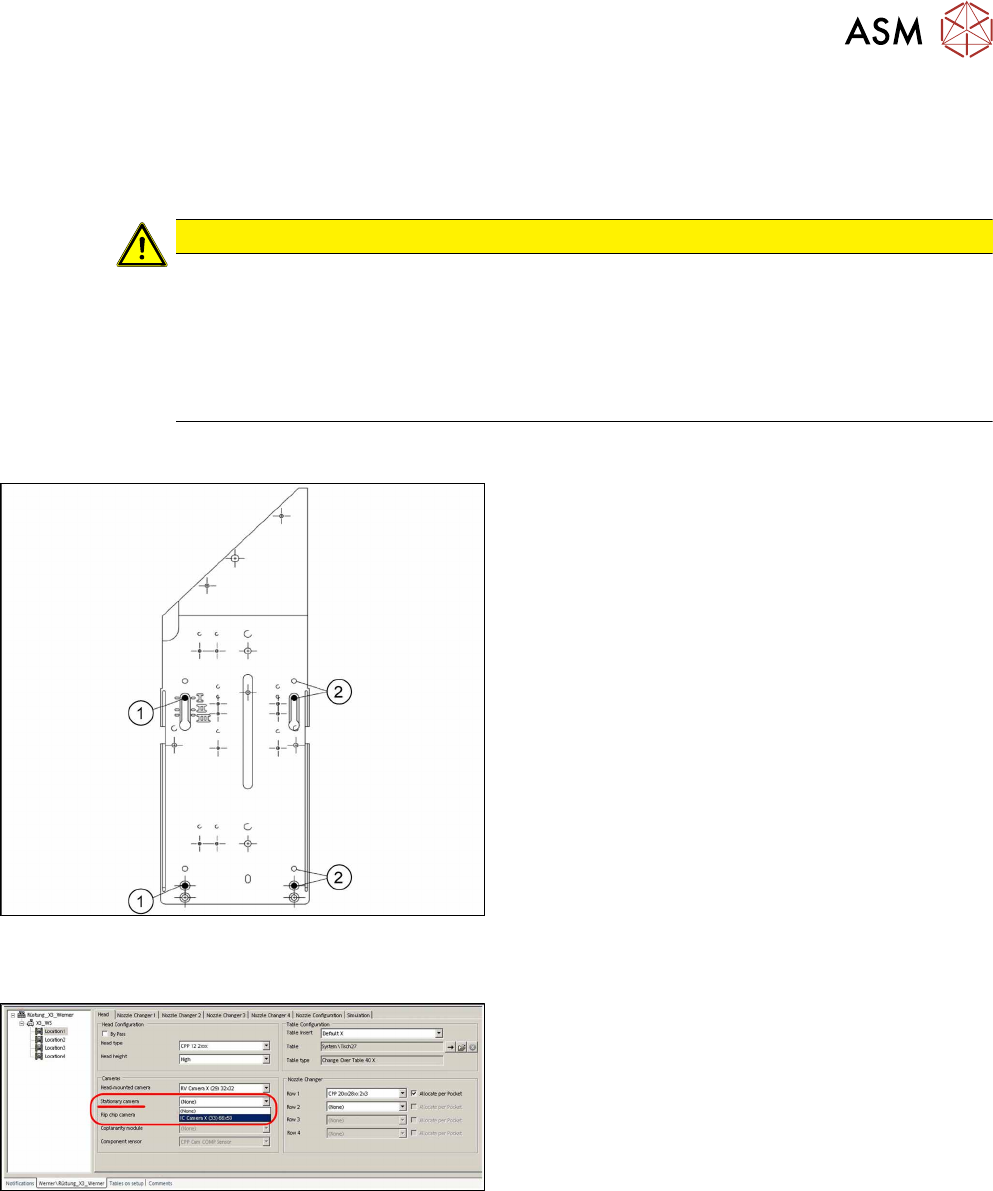

4 Appendix
4.1 Installation Height of the Stationary Camera
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
105
4 Appendix
4.1 Installation Height of the Stationary Camera
CAUTION
Observe the installation height
When fitting the camera, observe the correct installation height "I". Otherwise there is a risk
of head crash!
► When setting the installation height, consider all the heads in one placement area.
► If you are using a stationary camera with a CPP head, the CPP head must be fitted in
the top position.
4.1.1 Stationary Camera in Position 1
If you are using a DLM or CPP head in a placement
area, fit the camera in the bottom position. This
equates to position I.
1. Screw
2. Thread in the machine frame
Position I has to be used in the following cases:
●
X series S: always
4.2 Configuration of Stationary Camera with SIPLACE PRO
Configuration of stationary camera (SIPLACE Pro
setup (shown using example ofX3)
► Select Setup → Location → Head tab and enter
the P&P head.
► Re-optimize the setup in SIPLACE Pro.
