3.3.4 Connecting the Hotlink Cable to the Box PC
CAUTION
Never connect a LAN cable to the hotlink card!
This could damage the hotlink card.
NOTICE
Connection for stationary cameras
► Observe section and the latest circuit diagrams for your machine.
► When installed, the version of your hotlink card can only be determined by the position
of the camera connection label and the order of CAM connections.
► The stationary cameras are always connected to CAM2 or CAM3.
► The camera cables are labeled with their relevant connection details according to the
pattern X*p*.
ð Machines with only C&P20A heads will only have one hotlink card fitted. When
converting to a CPP or Twin Head, you need to install an additional "hotlink inter-
face PCI-A24-K01" [03052135Sxx] in the Box PC. Observe the currently applicable
service manual for your machine.
► All hotlink cables must be run from the relevant location to the Box PC.
► Connect your camera cable as follows:
CAUTION
Correctly connecting the camera cable
► Make sure that you connect the cameras correctly. Observe the labels on the hotlink
cards. If you do not observe this, placement performance may be adversely affected.
Pay particular attention to the different order of connections on the PCI-A24!
Hotlink card
Hotlink card (PCI-A24 [03052135-xx])
The hotlink card is fitted in the SX4 as a default.
CAUTION!
Observe the order of camera connections (5)!
.
(1) and (3): Stationary cameras for placement area 1
(X2pr and X3pr)
(2) and (4): Stationary cameras for placement area 2
(X2ps and X3ps)
Hotlink cards
Card 1 (top) Card 2 (bottom)
CAM0 Gantry 1 - PCB/component camera Gantry 2 - PCB/component camera
CAM1 Gantry 1 - stationary cameras (IC/FC)
[03077048-xx] → cable X1ps
Gantry 2 - stationary cameras (IC/FC)
[03077048-xx] → cable X2ps
CAM2 Gantry 4 - PCB/component camera Gantry 3 - PCB/component camera
CAM3 Gantry 4 - stationary cameras (IC/FC)
[03077049-xx] → cable X4ps
Gantry 3 - stationary cameras (IC/FC)
[03077049-xx] → cable X3ps
3 Installation
3.4 Fitting the Camera Cover
96 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
3.4 Fitting the Camera Cover
Camera cover (shown here using the example of loca-
tion 2 with an IC camera (1) and an FC camera (2))
► Hook in the housing for the lower section of the
camera.
► Carefully place the camera upper section (illumin-
ation unit) onto the camera lower section.
► Check whether the camera upper section has
been pushed in to the end stop.
ð At location 1 to 4, the upper edge of the cam-
era must be approx. 5 mm under the upper
edge of the board conveyor (3).
► Make sure that the glass surface is clean. Clean
the mirror/glass surface with a microfiber cloth, if
necessary.
NOTICE
Exchanging the camera housing when there is more than one camera.
When fitting the cover and the lighting unit, make sure that this is not confused with the one
for a different camera.
3 Installation
3.5 Fitting the Component Reject Bin
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
97
3.5 Fitting the Component Reject Bin
When using the "stationary camera for CPP head" option, you need to fit an additional reject bin for
components >36x36mm. This is identical to the TwinHead reject bin.
This reject bin is included in the delivery packages for the stationary camera and the HRK for Twin-
Head.
Parts required for location 1 and 4

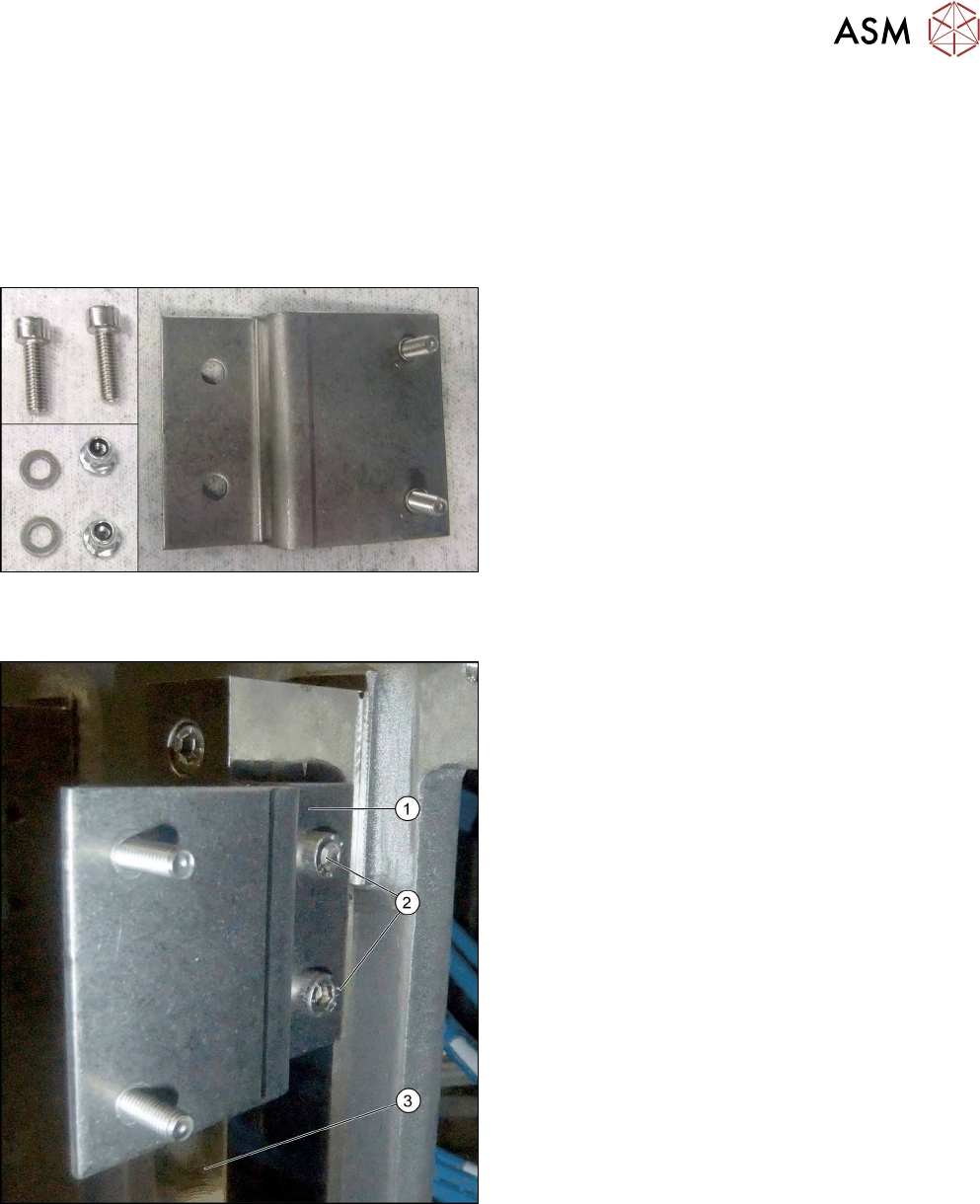

Parts
Angled bracket and fixtures for reject bin at location 1
and 4
Installation at location 1 and 4
Fitting the angled bracket
► Fix the angled bracket (1) into place using two
M6x12 screws [03042572-xx] to the angled
bracket (2) on the right-hand side of the spacer
plate (3).
