3 Installation 3.1 Performing Preparatory Work 76 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33 06/2016 3.1.1.2 Adjusting the Y Buffer Before the COT…
3 Installation
3.1 Performing Preparatory Work
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
75
Fixture points for protective plate
► Hook the protective plate onto the three bolts and
fasten these into place with the three washers
and the hexagonal nuts (2) that you previously
removed.
► Also secure the protective plate with the fixture
plates on the left (1) and right (3).
Screwing the fixture plates into place
► Insert the fixture plates on the left and right (1).
► Screw the fixture plates (2) into place with the
screws that you previously removed.
Track ruler
The track ruler must be flat against the disk on the left
of all locations (1).
► Use adhesive to fix the track ruler at all locations
towards the machine center (2).
3 Installation
3.1 Performing Preparatory Work
76 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
3.1.1.2 Adjusting the Y Buffer
Before the COT insert can be moved to position 2, you need to shorten the length of the Y buffer at
the relevant location.
Length of Y buffer at table position 1
► Unscrew the top red buffer with the help of an
Allen key (1). Pay attention to the bushing.
► Insert the Allen key into one of the auxiliary holes
(2) and remove the middle section of the buffer.
► Repeat these steps for the lower buffer.
Length of Y buffer at table position 2
► Reinsert the red buffer and screw it tight (1).
3 Installation
3.1 Performing Preparatory Work
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
77

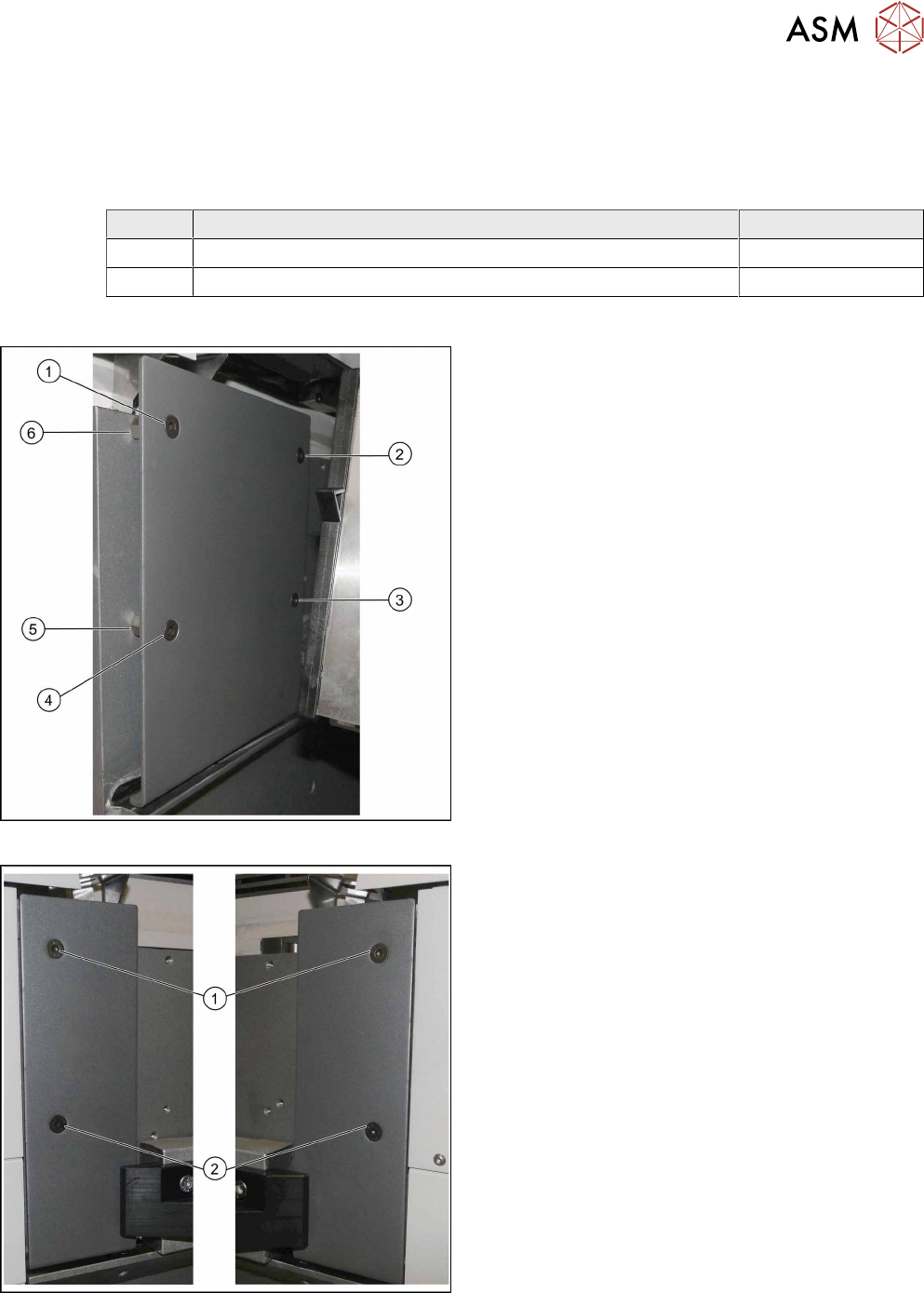

3.1.1.3 Adjusting the Hand Guard
Before the COT insert can be moved to position 2, you need to replace the original hand guard at
the relevant location with the shorter cover on the left and right.
Parts required
Quantity Designation Item number
1 Short cover, right on location 1 and 3 03086067-xx
1 Short cover, left on location 2 and 4 03086070-xx
Conversion
Hand guard on left at table position 1
► Remove the screws at (1) to (4).
► Remove the spacer bolts underneath points (2)
and (3).
The two spacer bolts at (5) and (6) remain.
Short covers on left and right at table position 2
► Insert the short cover:
ð Short cover, right on location 1 and 3
ð Short cover, left on location 2 and 4
► Use the spacer bolts to screw the cover into
place at (1) and (2).
