3 Installation

3.1 Performing Preparatory Work

80 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera

Typ 25/33 06/2016

Secure COT insert behind second table position

► Move the COT insert outwards by approx.

125 mm i.e. one hole pattern back.

► Fix the COT insert on each side with two

screws (1) to (4).

3 Installation

3.2 Fitting the Camera

Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera

Typ 25/33 06/2016

81

3.2 Fitting the Camera

Configurations

IC cameras of type 33 can be installed at all four locations (exception: no installation at PA1 pos-

sible at X4i S).

FC cameras of type 25 can only be installed at locations 2 and 3, only in combination with IC cam-

era type 33.

Installation position of cameras (using example of X4 S)

1. IC camera, type 33

2. FC camera / 3D coplan (location2 only)

3. Component reject bin

Location 1 to location 4

NOTICE

TwinHead

The FC camera and the 3D coplan module are only possible together with a TwinHead.

Only one of these options can be fitted at the same location, meaning that either the FC

camera or the 3D coplan module can be used and only in combination with an IC camera.

NOTICE

CPP Head

► A 3D coplan module can be fitted together with an IC camera and a CPP head.

► The combination of an IC camera with a FC camera and a CPP head is not possible.

NOTICE

3D coplan

If a 3D coplanarity is fitted, this only being possible at location 2, the stationary camera (IC

camera) must also be fitted at location 2.

3 Installation

3.2 Fitting the Camera

82 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera

Typ 25/33 06/2016

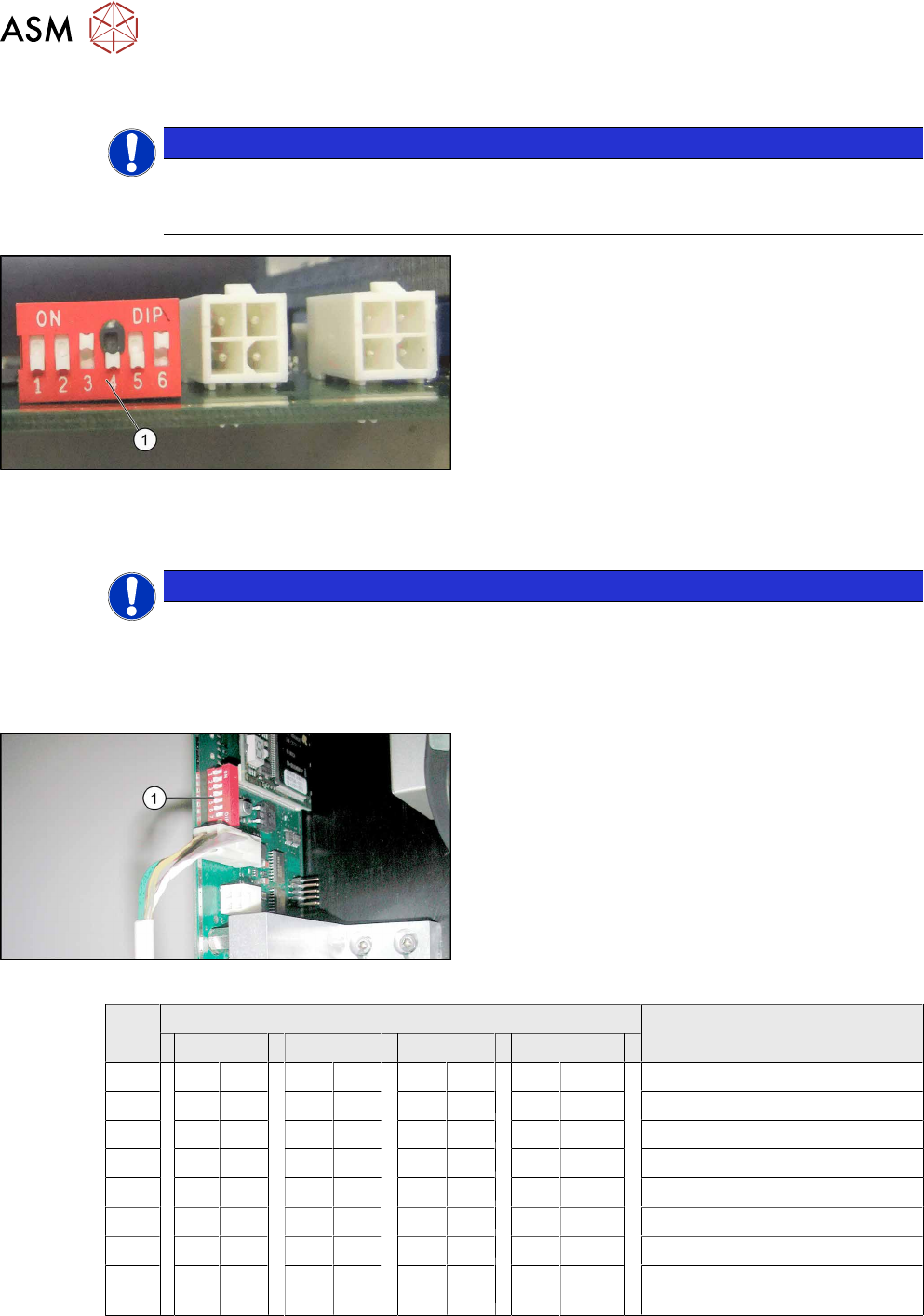

3.2.1 Adjusting the Camera Jumper Setting

NOTICE

Coding the DIP switch

IC cameras of type 33 up to version 07 are equipped with an 8-pin DIP switch. IC cameras

of type 33 from version 07 are equipped with a 6‑pin DIP switch.

Setting the DIP switch – example of 6-pin switch

shown

► Remove the lighting unit and the cover from the

camera.

► Set the DIP switch (1) at the camera, according

to the configuration and DIP switch type (see

section 3.2.1.2 "Coding the DIP Switch (6

Pin)" [}83]or 3.2.1.1 "Coding the DIP Switch (8

Pin)" [}82]).

► Make a note of the jumper setting on the relevant label on the camera housing.

NOTICE

Exchanging the camera housing when there is more than one camera.

When fitting the cover and the lighting unit, make sure that this is not confused with the one

for a different camera.

3.2.1.1 Coding the DIP Switch (8 Pin)

Setting the DIP Switches

► Set the DIP switch (1) on the camera.

S Setting for gantry* Comments

1 2 3 4

1 OFF OFF OFF OFF Boot

2 OFF OFF OFF OFF Reset

3 OFF ON OFF ON Gantry ID 0

4 OFF OFF ON ON Gantry ID 1

5 OFF OFF OFF OFF Test

6 OFF OFF OFF OFF CAN terminator

7 ON ON ON ON 1 Mbit/s

8 x X X X X X X x x = OFF: FC camera (type 25)

x = ON: IC camera (type 33/36)

* Not all gantries may be available, depending on the machine type.
