3 Installation 3.1 Performing Preparatory Work 80 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33 06/2016 Secure COT insert behind second table positio…
3 Installation
3.1 Performing Preparatory Work
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
79
Moving the COT insert
(1) and (2) Fastening screws on the left of the COT in-
sert
► Remove the two fastening screws on both the left
and the right of the COT insert using an Allen key
or a T-handle.
Fixture point on machine frame
► Remove the cable ties at (1).
3 Installation
3.1 Performing Preparatory Work
80 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
Secure COT insert behind second table position
► Move the COT insert outwards by approx.
125 mm i.e. one hole pattern back.
► Fix the COT insert on each side with two
screws (1) to (4).
3 Installation
3.2 Fitting the Camera
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
81
3.2 Fitting the Camera
Configurations
IC cameras of type 33 can be installed at all four locations (exception: no installation at PA1 pos-
sible at X4i S).
FC cameras of type 25 can only be installed at locations 2 and 3, only in combination with IC cam-
era type 33.

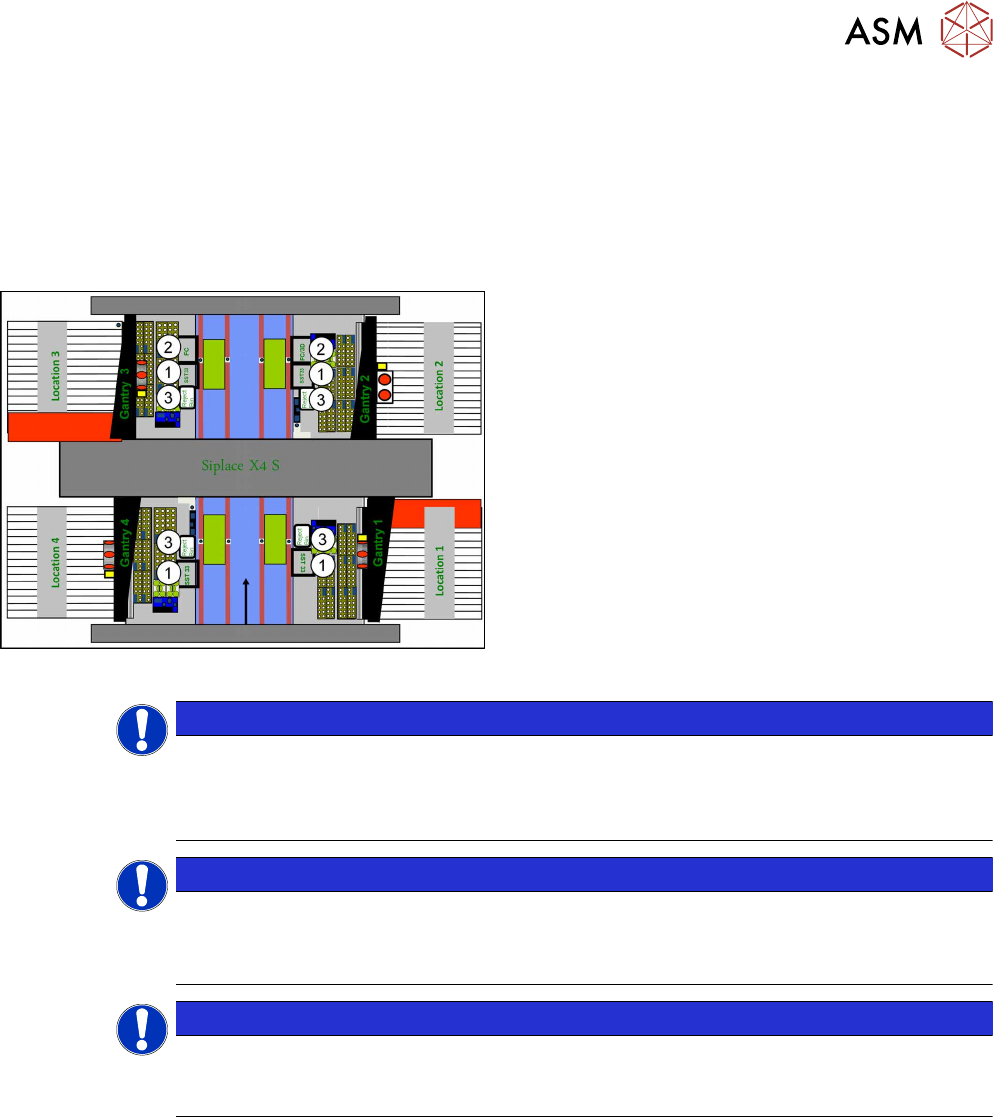

Installation position of cameras (using example of X4 S)
1. IC camera, type 33
2. FC camera / 3D coplan (location2 only)
3. Component reject bin
Location 1 to location 4
NOTICE
TwinHead
The FC camera and the 3D coplan module are only possible together with a TwinHead.
Only one of these options can be fitted at the same location, meaning that either the FC
camera or the 3D coplan module can be used and only in combination with an IC camera.
NOTICE
CPP Head
► A 3D coplan module can be fitted together with an IC camera and a CPP head.
► The combination of an IC camera with a FC camera and a CPP head is not possible.
NOTICE
3D coplan
If a 3D coplanarity is fitted, this only being possible at location 2, the stationary camera (IC
camera) must also be fitted at location 2.
