3 Installation
3.2 Fitting the Camera
82 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
3.2.1 Adjusting the Camera Jumper Setting
NOTICE
Coding the DIP switch
IC cameras of type 33 up to version 07 are equipped with an 8-pin DIP switch. IC cameras
of type 33 from version 07 are equipped with a 6‑pin DIP switch.
Setting the DIP switch – example of 6-pin switch
shown
► Remove the lighting unit and the cover from the
camera.
► Set the DIP switch (1) at the camera, according
to the configuration and DIP switch type (see
section 3.2.1.2 "Coding the DIP Switch (6
Pin)" [}83]or 3.2.1.1 "Coding the DIP Switch (8
Pin)" [}82]).
► Make a note of the jumper setting on the relevant label on the camera housing.
NOTICE
Exchanging the camera housing when there is more than one camera.
When fitting the cover and the lighting unit, make sure that this is not confused with the one
for a different camera.
3.2.1.1 Coding the DIP Switch (8 Pin)
Setting the DIP Switches
► Set the DIP switch (1) on the camera.
S Setting for gantry* Comments
1 2 3 4
1 OFF OFF OFF OFF Boot
2 OFF OFF OFF OFF Reset
3 OFF ON OFF ON Gantry ID 0
4 OFF OFF ON ON Gantry ID 1
5 OFF OFF OFF OFF Test
6 OFF OFF OFF OFF CAN terminator
7 ON ON ON ON 1 Mbit/s
8 x X X X X X X x x = OFF: FC camera (type 25)
x = ON: IC camera (type 33/36)
* Not all gantries may be available, depending on the machine type.
3 Installation
3.2 Fitting the Camera
Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
83
3.2.1.2 Coding the DIP Switch (6 Pin)
Setting the DIP Switches
► Set the DIP switch (1) on the camera.
S Setting for gantry* Comments
1 2 3 4
1 OFF OFF OFF OFF Reset – Do not change this set-
ting!
2 OFF ON OFF ON Gantry ID 0
3 OFF OFF ON ON Gantry ID 1
4 OFF OFF OFF OFF OFF = SMD LED
ON = Standard LED
This switch is delivered with a
fixed presetting. Do not change
this setting!
5 OFF OFF OFF OFF CAN terminator - do not change
this setting!
6 x X X X X X X x x = OFF: FC camera (type 25)
x = ON: IC camera (type 33/36)
* Not all gantries may be available, depending on the machine type.
3.2.2 Fitting the IC Camera Type 33
The camera is fixed at two spacer plates, which have already been screwed to the screw fixing
points on the machine base.
The procedure for fitting these spacer plates and for fixing the cameras is in principle the same at
all locations. Any differences are indicated in the following section.
► Before installation, make sure that the jumper setting for the camera to be fitted is correct (see
3.2.1 "Adjusting the Camera Jumper Setting" [}82]).
See also
2 3.2.3.1 "Fitting the Spacer Plates" [}88]
2 3.2.2.2 "IC Camera Type 33: Fixing the Camera Module" [}87]
3 Installation
3.2 Fitting the Camera
84 Assembly Instructions / Montageanleitung SIPLACE X-Series S Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 06/2016
3.2.2.1 Fitting the Spacer Plates
The spacer plates are fixed to the relevant screw fixing points in the machine base. Narrow spacer
plates are used at locations 2 and 3, while wide spacer plates are used at locations 1 and 4.
Screw fixing points at location 2 and 3

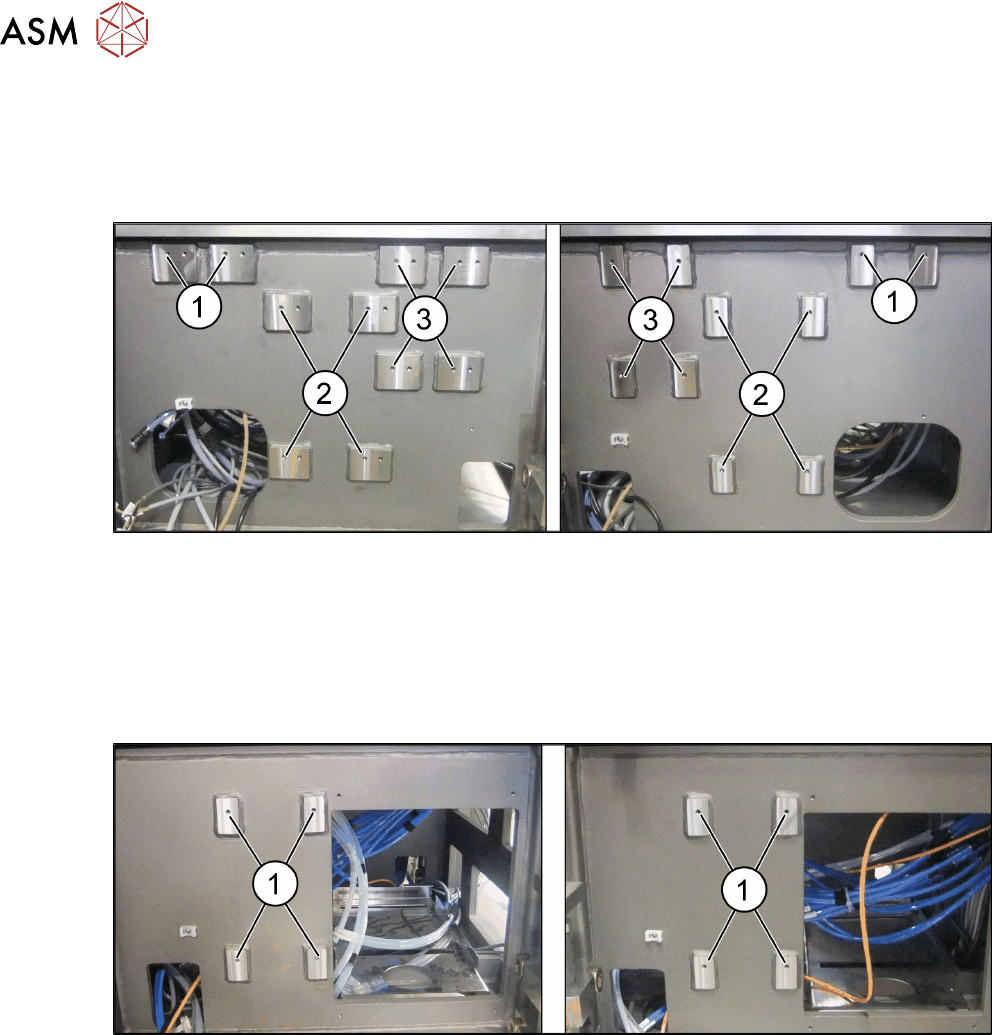

Fig.5: Screw fixing points at location 2 (left) and 3 (right)
1. Screw fixing points for the reject bin
2. Screw fixing points for the IC camera type 33
3. Screw fixing points for the IFC camera type 25
The screw fixing points at location 2 and 3 are mirrored. Use the left holes at location 2.
Screw fixing points at location 1 and 4
Fig.6: Screw fixing points at location 1 (left) and 4 (right)
1. Screw fixing points for the IC camera type 33
