Chapter 12 Management Data

12-14

12-5 Operator Record

12-5-1 Registering the Operator

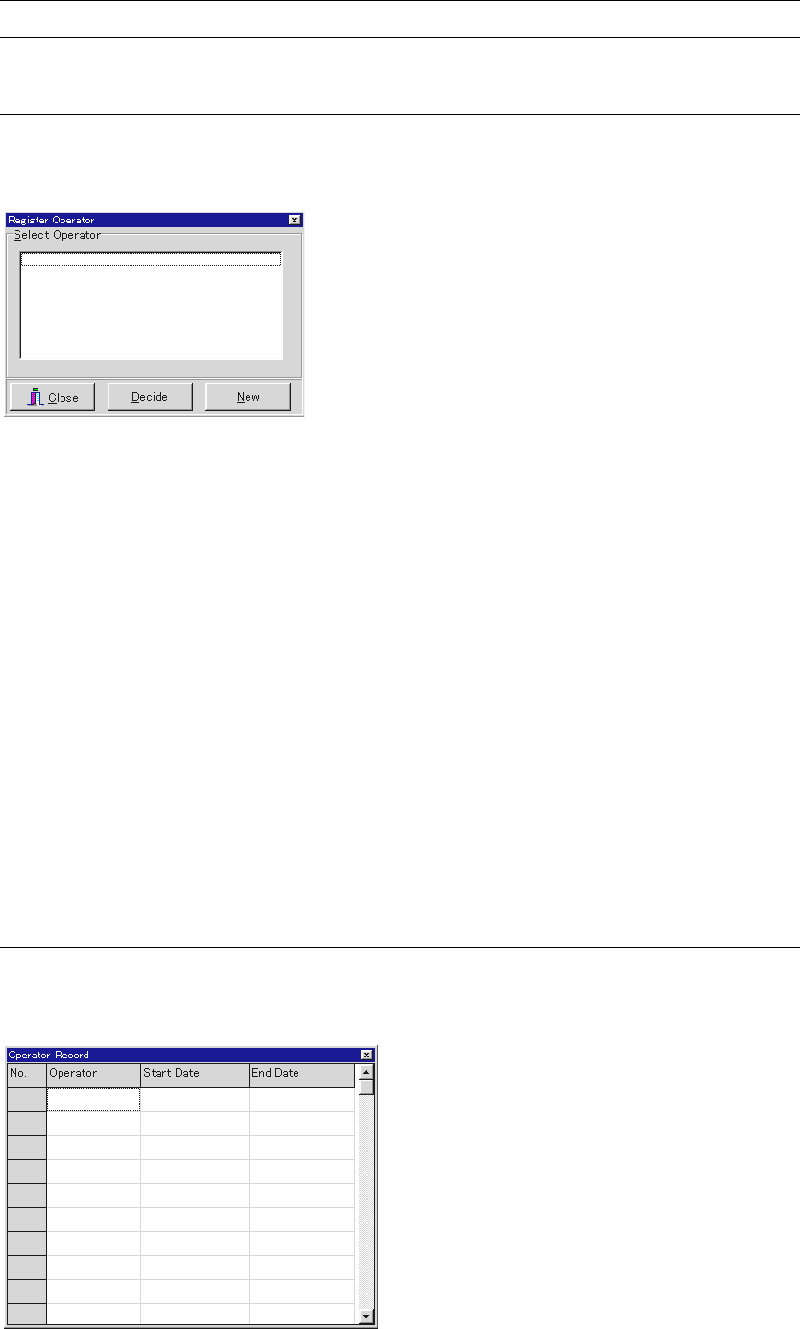

Menu: Management>Register Operator

This menu allows you to register or delete an operator.

 Registering a New Operator

Action:

① Click <New> button to open the Operator Entry/Deletion dialog box.

② Under [Operator Entry], type in the operator name (up to 20 characters).

③ Click <Register> button.

④ Click <X> button to return to the previous screen.

 Deleting an Operator

Action:

① Click <New> button to open the Operator Entry/Deletion dialog box.

② Under [Operator Deletion], select an operator name to delete.

③ Click <Delete> button.

④ Click <X> button to return to the previous screen.

12-5-2 Operator Record

This menu allows you to refer to the operator in charge for a certain manufacturing session.

Menu: Management>OperatorRecord

Window:

Operator: Name of the operator

Start Date: Date and time to start the manufacturing session

End Date: Date and time to end the manufacturing session

Chapter 13 Utility Menus

13-1

Chapter 13

Utility Menus

 Backing up and restoring various data

 Converting machine data to text data

 Troubleshooting (at Mounter-Start)

Chapter 13 Utility Menus

13-2

13-1 Backup & Restore

Note: For information on backing up and restoring system parameters, see Chapter 9, System

Parameter.

13-1-1 Backing Up Data

Menu: Tool>Backup&Restore>Program BackUp

This menu allows you to copy user data (user parameters, library data, programs, and others)

from the mounter hard disk to an USB memory.

Action:

① Connect an USB memory to the port on a machine.

② Select data to back up.

③ Click <Execute> button.

 Changing the Backup Directory

Action:

① Click

button to open the Browse for Folder dialog box.

② Select “Removable Disk (G:)” or a folder in Network Neighborhood and click <OK>

button.

Note: The hard disk drive of the mounter cannot be specified as the backup directory.
