6-7
TroubleShooting
An X NG
occurred
during
mapping.
Foreign material is jammed in the
feeder base slot when setting the
origin of the master feeder.
After removing the foreign
material, set the origin again.
The master feeder is not clamped
when setting the origin.
Clamp the master feeder and
set the origin.
The tape feeder is bent. Adjust the X eccentric pin and
perform mapping again.
The X position was set incorrectly
while performing mapping.
Adjust the X eccentric pin and
perform mapping again.
An <Y
NG>
occurred
during
mapping.
The threshold value is too small or
too large.
Set the master tape threshold.
Lots of adhesive foreign materials
exist on the master tape.
Replace the master tape.
The master tape is damaged. Replace the master tape.
The start position of the master
tape inserted in the tape feeder is
incorrect.
Initialize the start position of
the master tape.
The intensity of the coaxial lighting
is insufficient.
Set the coaxial lighting for the
calibration jig.
The intensity of the fiducial lighting
is insufficient.
Set the fiducial lighting for the
calibration jig.
Foreign material is jammed in the
feeder base slot when setting the
origin of the master feeder.
Remove any foreign materials
and set the origin.
The feeder is not clamped when
setting the origin of the master
feeder.
Clamp the master feeder and
set the origin.
Problem Possible Cause Measures
6-8
User's Guide For Tape Feeder Calibration Jig
An alarm
occurred
as the
master
tape has
been used
exceeding
the usage
count.
The usage count of the master tape
exceeded 150 times.
Initialize the usage count of the
master tape in the calibration
jig program and dispose of the
used master tape.
Problem Possible Cause Measures
6-9
TroubleShooting

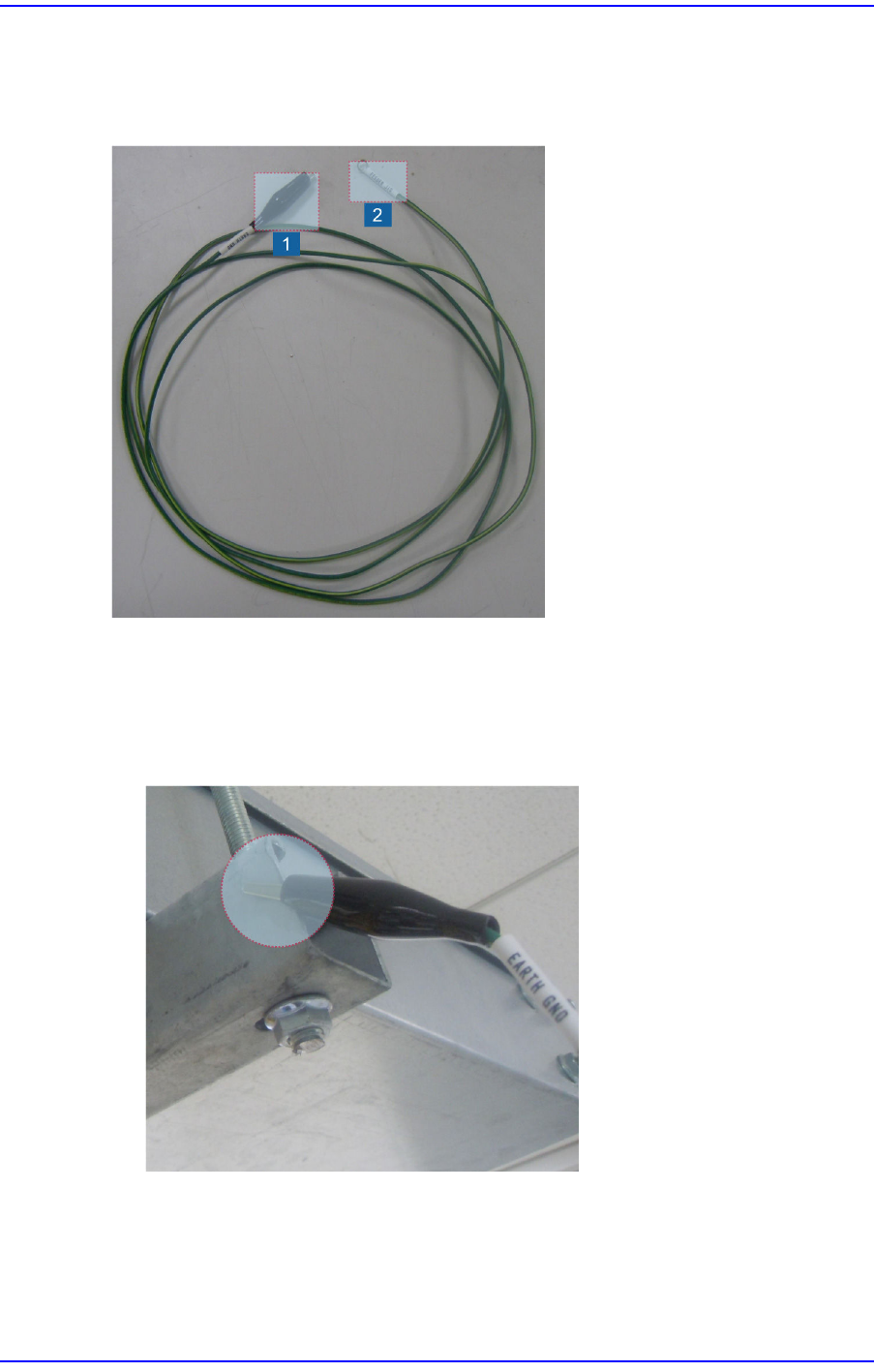

6.2. Use of Grounding Cable
When using the calibration jig, it must be grounded for voltage stabilization. Prepare a
grounding cable provided when purchasing a calibration jig.
1: Clip
2: Grounding Ring
Ground the calibration jig with an object to be grounded in the following manner:
1. Connect the clip to the object to be grounded.
