5-13 Maintenance 5.7. Cha nge the Fuse 'If overcurrent flows to the calibration jig, the power supply fuse will be cut of f. If it does, replace the fuse referring to the following: 1. Tu rn off the power switch of …
5-12
User's Guide For Tape Feeder Calibration Jig

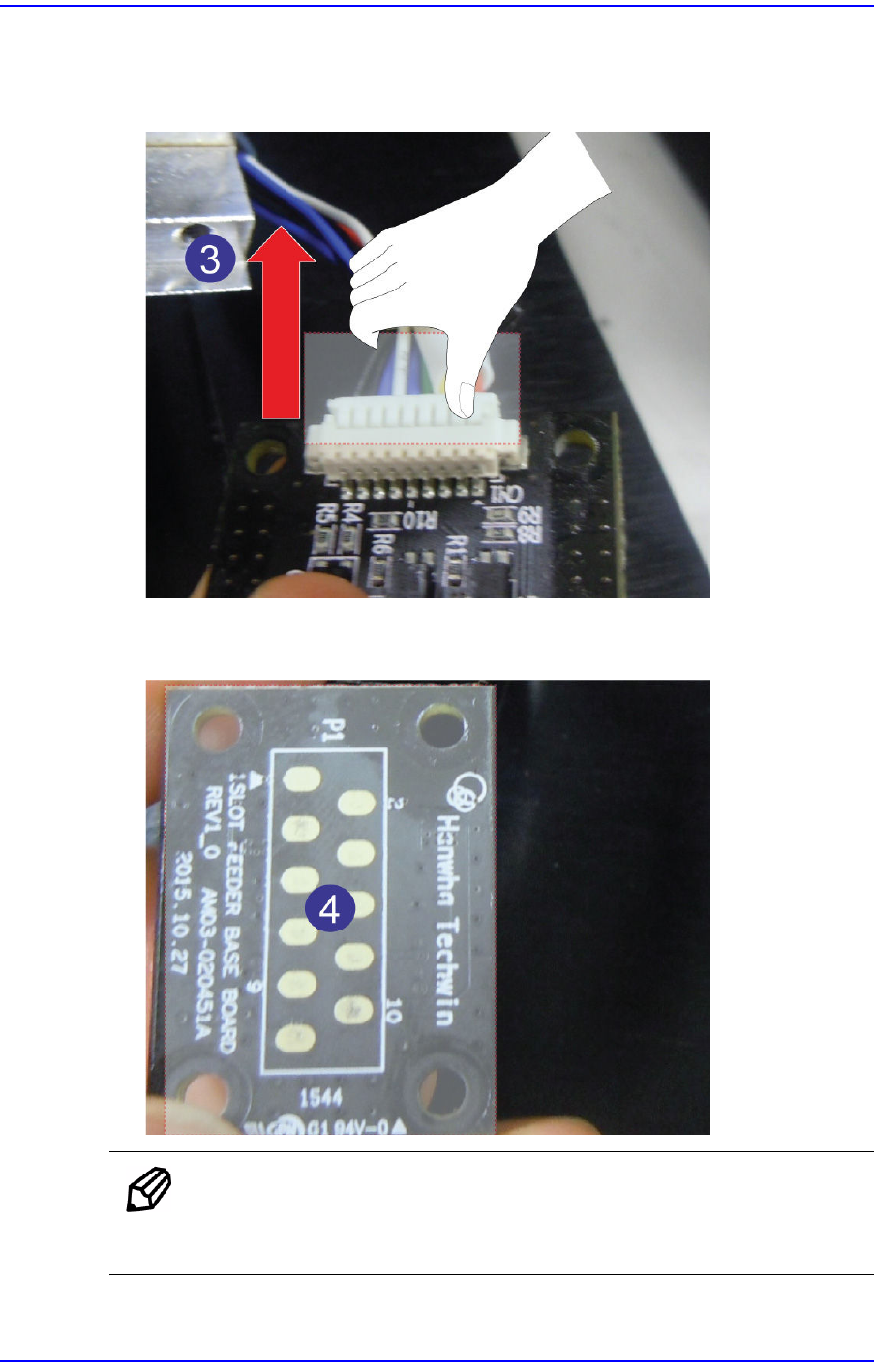

3. Disconnect the cable connector and feeder base board. When disconnecting the cable,
disconnect the cable while holding the entire cable so that the connector will not be
damaged.
4. After replacing the feeder base board with a new one, assemble it in the reverse order
of disassembling.
Memo
w Feeder Base Board Name: FEEDER BASE BOARD 1 SLOT
w Feeder Base Board Number: EP16-002162A
5-13
Maintenance
5.7. Change the Fuse
'If overcurrent flows to the calibration jig, the power supply fuse will be cut off. If it does,
replace the fuse referring to the following:
1. Turn off the power switch of the calibration jig and remove the power cable from the
calibration jig.
2. Place the calibration jig on a flat surface with the power switch facing upward.
5-14
User's Guide For Tape Feeder Calibration Jig
3. Insert a flathead (-) screwdriver in the fuse holder groove and lift the fuse holder to
install or remove it.
4. There are used fuses and spare fuses in the installed/removed fuse holder. Remove the
used fuse and replace it with a spare fuse.
A: Spare Fuse
B: Used Fuse
Memo
One piece of a spare fuse is provided by default. When purchasing
new fuses, refer to the following product name and number:
w Fuse Product Name: CARTRIDGE FUSE
w Fuse Product Number: EP10-003567
