4-7
Program Installation

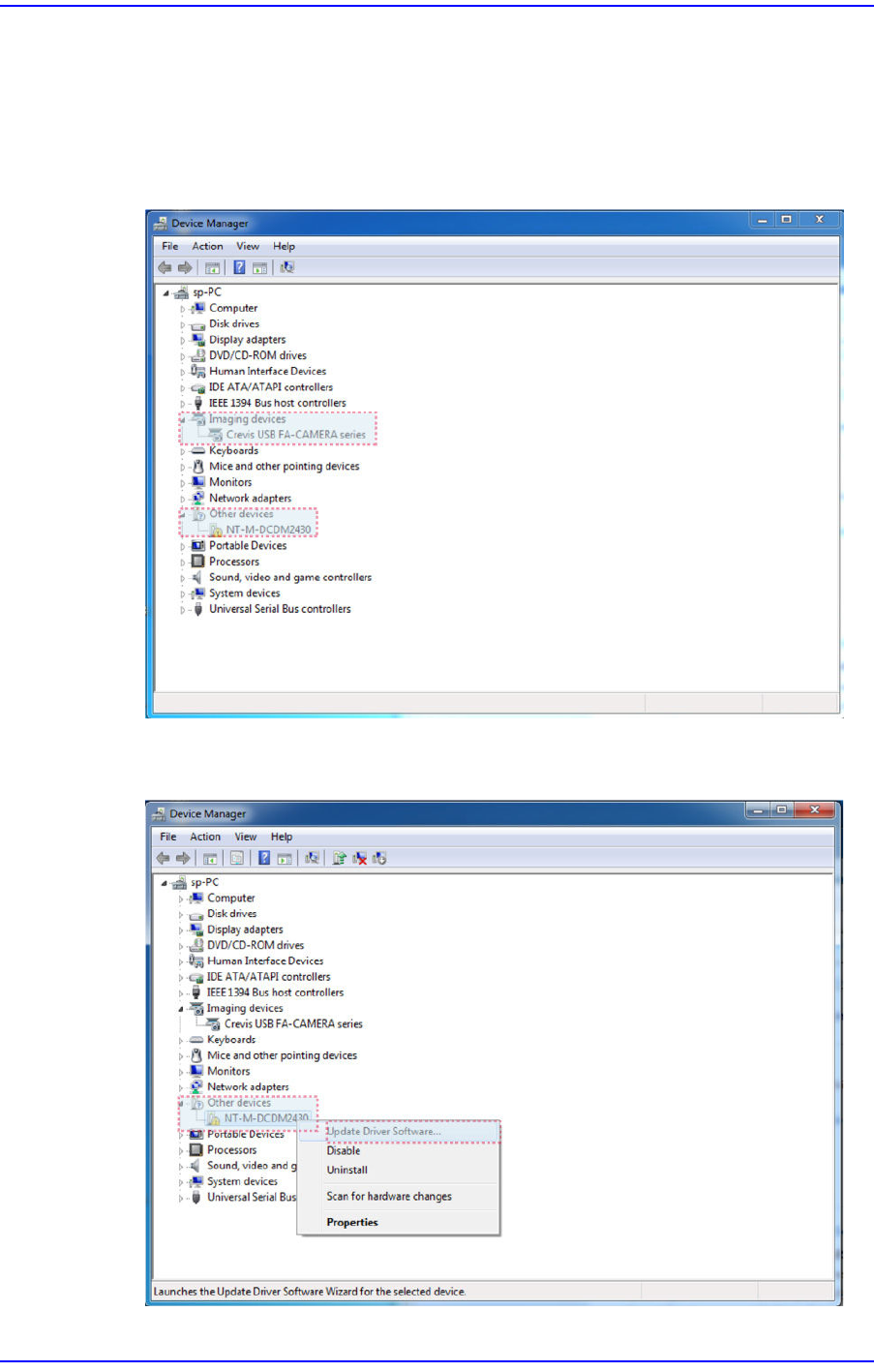

13. After rebooting the PC, connect the USB cable of the jig to the PC and execute the
Windows Device Manager to check whether the following items were recognized
properly.
w [Imaging Devices] - [Crevis USB FA-CAMERA series]
w [Other Devices] - [NT-M-DCDMxxxx]
14. Select the [NT-M-DCDMxxxx] device with the mouse and right click the mouse to
select the ’Update Driver Software’.
4-8
User's Guide For Tape Feeder Calibration Jig

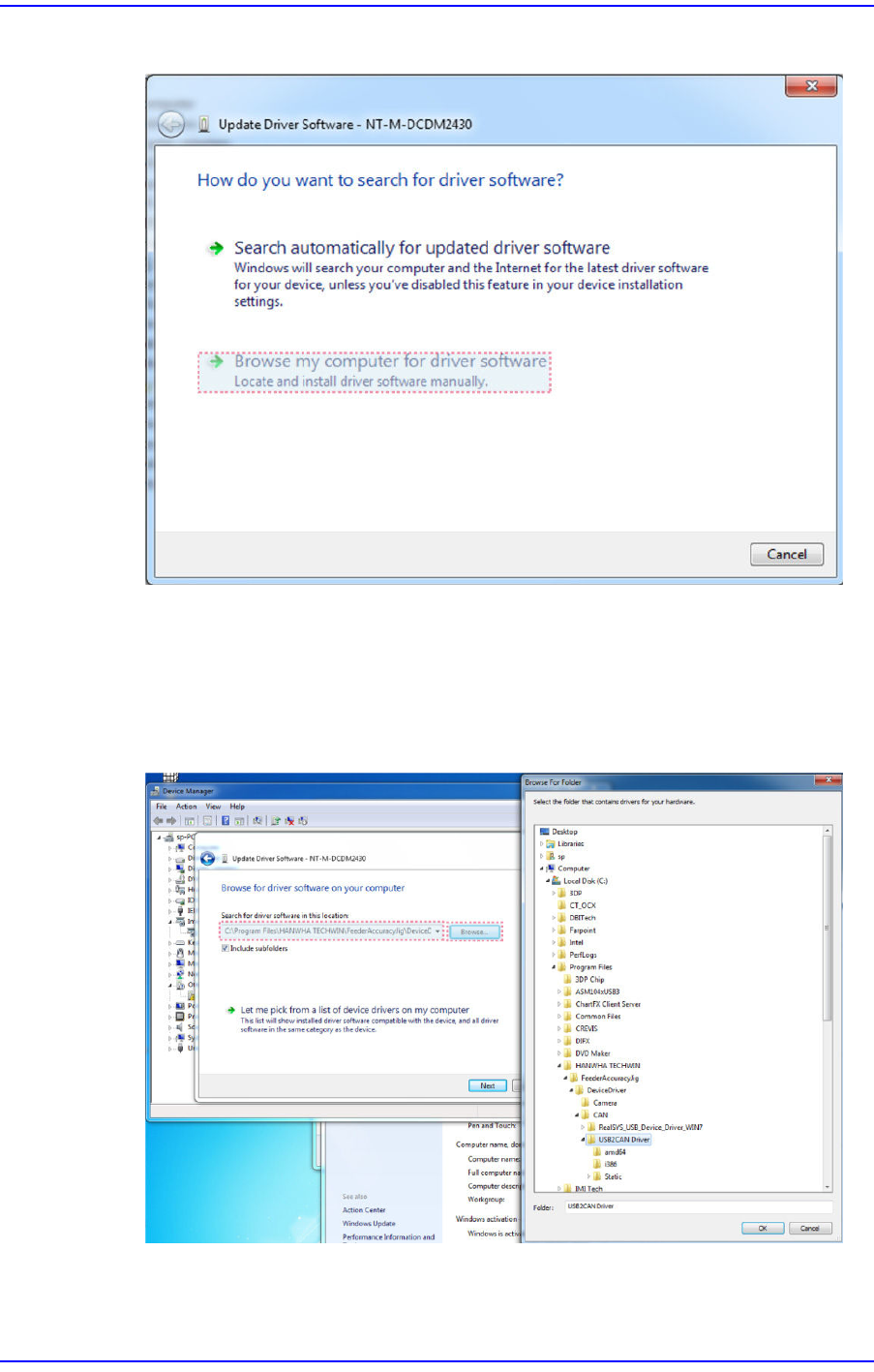

15. Select the ’Browse my computer for driver software’.
16. Click the <Browse…> button and set the path for the program installation referring to
the following path.
w Path (Path)
C:\Program Files\HANWHA TECHWIN \
FeederAccuracyJig\DeviceDriver\CAN\USB2CAN Driver
Click the <Next> button to proceed with program installation.
4-9
Program Installation
17. Select ’Install this driver software anyway’.
18. Click the <Close> button to finish the [NTREX USB2CAN Converter] installation.
