User's Guide For Tape Feeder Calibration Jig
5.4. Master Feeder
In the case of a master feeder, the reliability of the origin must be maintained by
performing calibration regularly. If defects such as distortion of part supply position, etc.,
occur due to failure of regular calibration of the master feeder, our company is not
responsible for this problem.
Caution
w Contact our designated C/S company (STS) or local agent once a
year and calibrate the master feeder.
w When sending the master feeder to our designated C/S company
(STS) or local agent, put it in the dedicated storage box and send
it.
w When the master feeder is dropped or damaged, immediately
calibrate it.
5-9
Maintenance
5.5. Master Tape Usage Management
If the usage count of the master tape exceeds 150 times, an alarm occurs automatically in
the calibration jig program.
It is possible to check the usage count of the master tape in the calibration jig program.
Figure5.3 The usage count of the master tape exceeds the set usage count when inspecting the
supply accuracy
Figure5.4 Usage Count of Master Tape Exceeds the Set Count When Mapping
5-10
User's Guide For Tape Feeder Calibration Jig

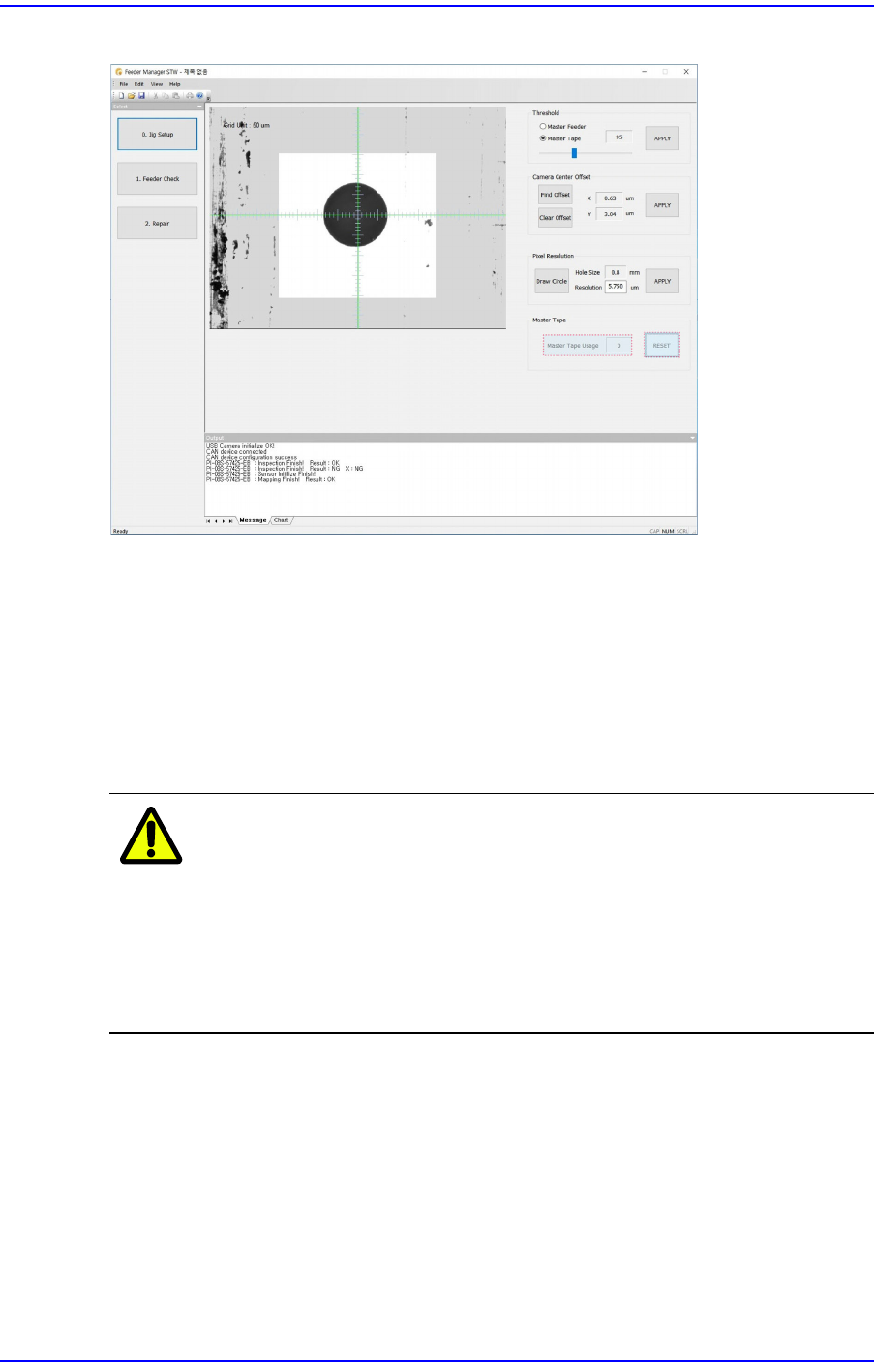

Figure5.5 Usage Count of Master Tape in the <Jig Setup> Tab
w <Master Tape Usage> Area
When performing mapping inspection or part supply accuracy inspection using the
master tape, the usage count in the <Master Tape Usage> area increases.
w <Reset> Button
It is possible to reset the usage count of the master tape. If the usage count of the
master tape exceeds 150 times, replace the master tape with a new one, and click the
<Reset> button to reset the usage count to 0.
Caution
Our company is not responsible for mapping defects and
supply accuracy defects that occur due to usage count of
the master tape exceeding 150 times. The master tape
must be replaced after using it more than 150 times.
If the master tape is damaged or deformed, dispose it
immediately.
