1-5

Overview of Product

1.2. Product Function

1.2.1. Major Functions

Major functions of a calibration jig are as follows:

1.2.2. Part Supply Accuracy of a Feeder after Calibration

After feeder calibration, the part supply accuracy of the feeder is as follows. (Based on the

mater tape hole.)

Purpose Description

Inspection Supply accuracy inspection

Saved data inspection

Calibration Sensor initialization

Mapping inspection

Serial number change

X Spec Y Spec

Feeder

Absolute

Accuracy (mm)

Range (mm)

Absolute

Accuracy

(mm)

Cpk 3σ (μm)

8mm

± 0.12

Less than

0.1

± 0.06

Greater

than 1.0

0402

Less than

W4P1

± 0.15

12mm

± 0.16

- ± 0.08 -

16mm

2-1

Prepare

Chapter2. Prepare

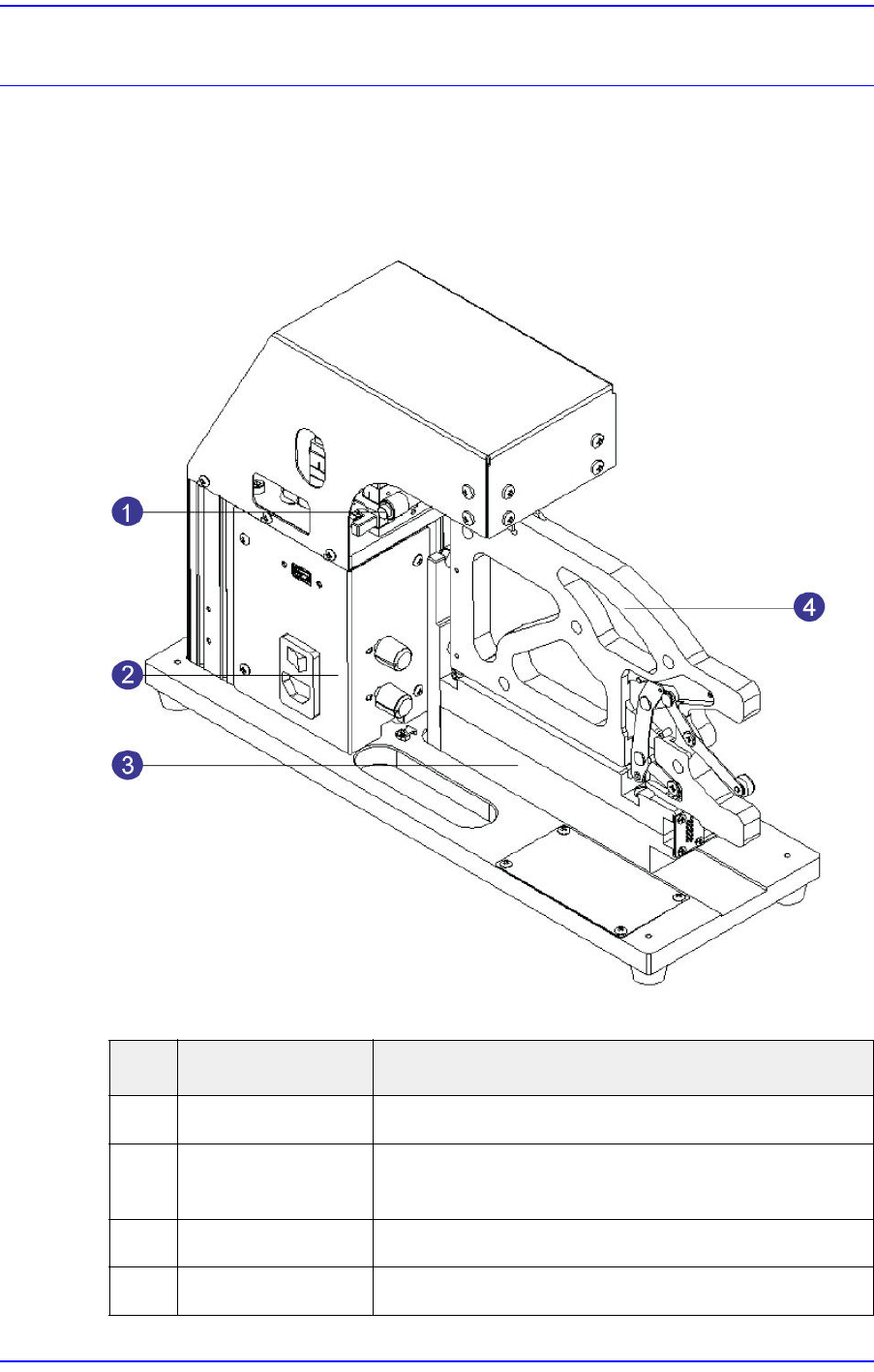

2.1. Name and Function of Each Part

A calibration jig is a device to calibrate and inspect a feeder. The name and function of

each part is as follows:

No. Name Description

1 X, Y and Z Stages Move a stage position to X, Y or Z axis

2 Power Supply

Switch and Lighting

Calibration jig power connection, communication

connection, lighting brightness adjustment

3 Feeder Base Slot in which a feeder to be calibrated is installed

4 Master Feeder Reference feeder for feeder calibration
