5-13

Maintenance

5.7. Change the Fuse

'If overcurrent flows to the calibration jig, the power supply fuse will be cut off. If it does,

replace the fuse referring to the following:

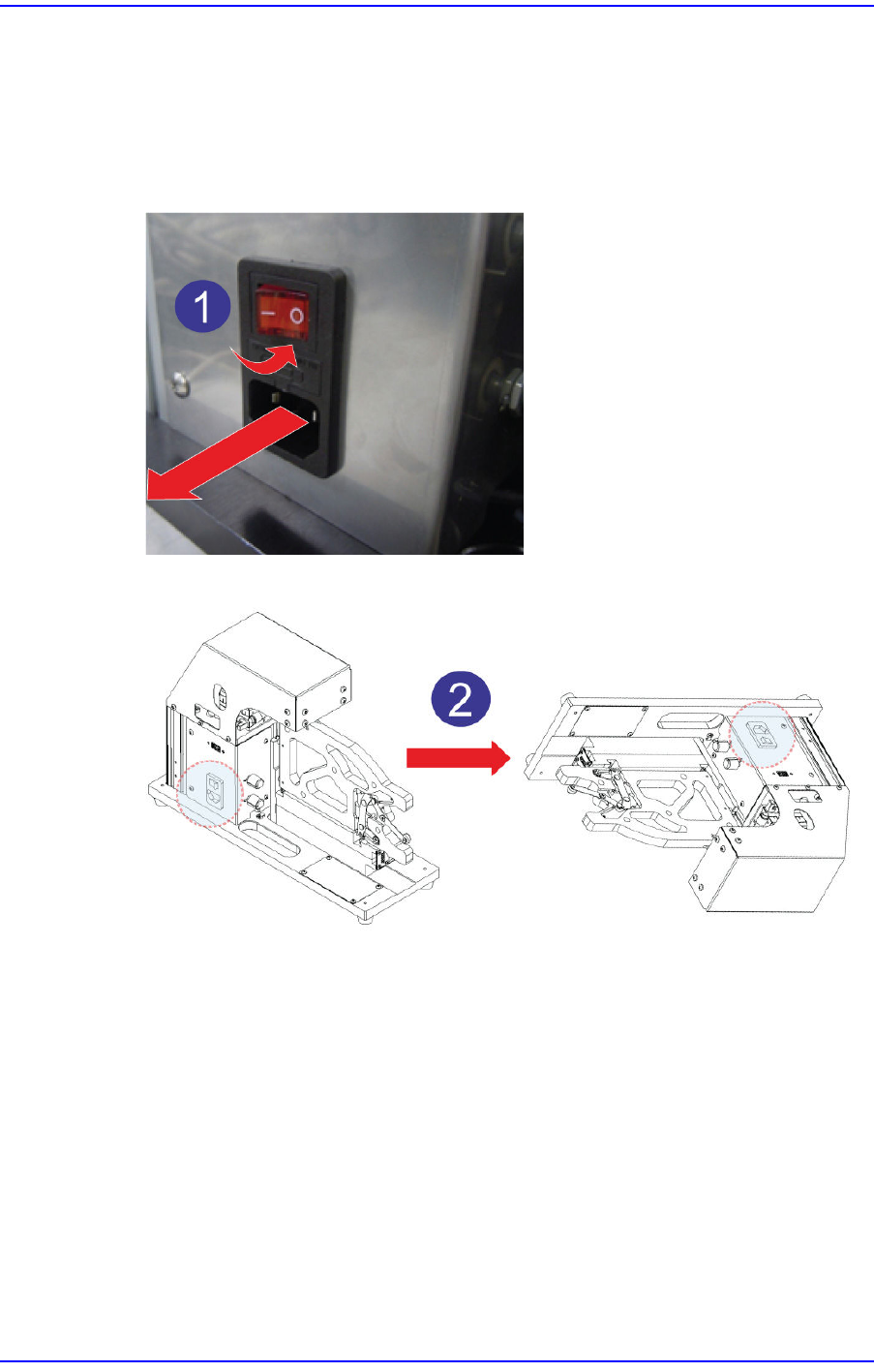

1. Turn off the power switch of the calibration jig and remove the power cable from the

calibration jig.

2. Place the calibration jig on a flat surface with the power switch facing upward.

5-14

User's Guide For Tape Feeder Calibration Jig

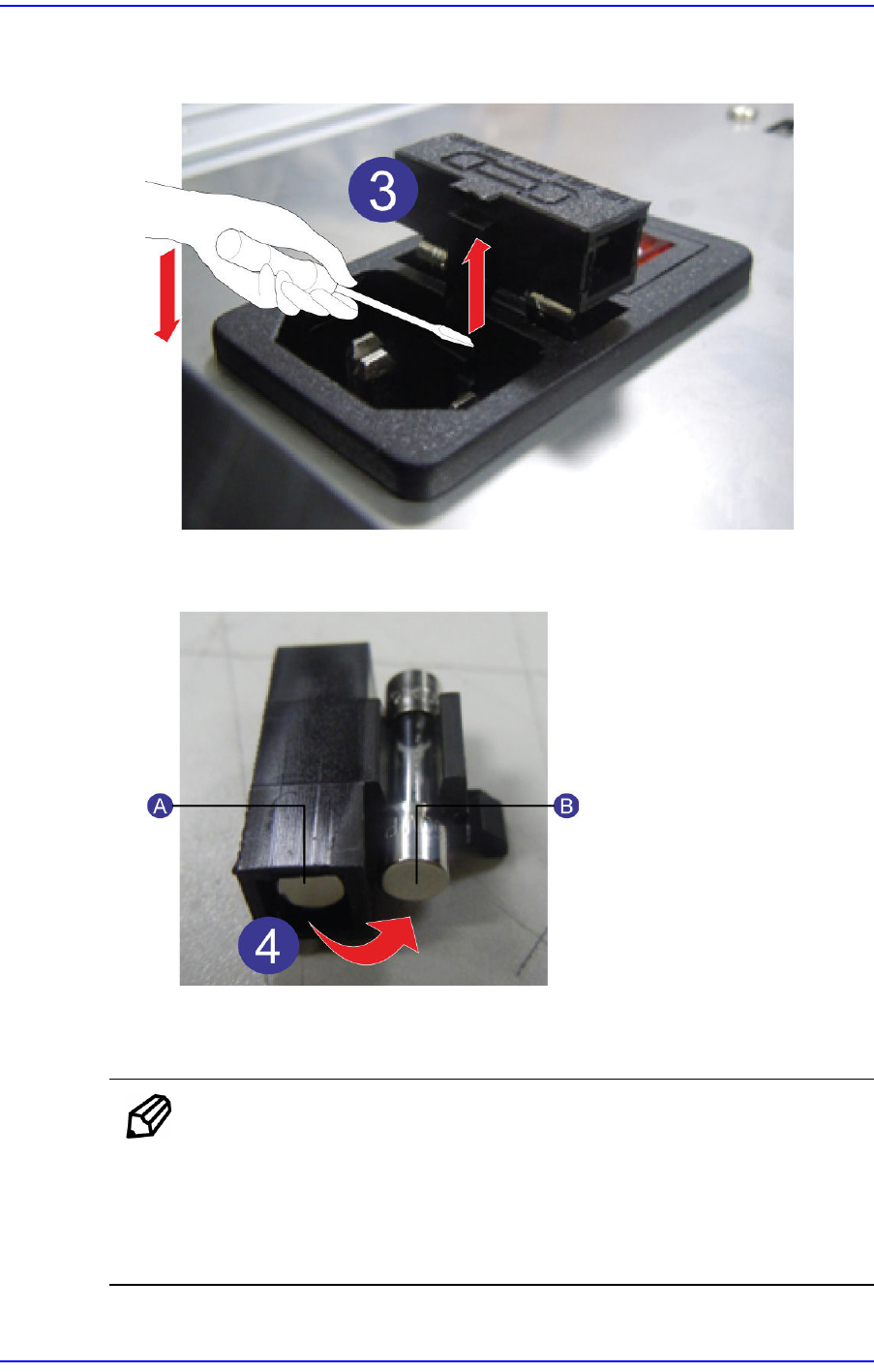

3. Insert a flathead (-) screwdriver in the fuse holder groove and lift the fuse holder to

install or remove it.

4. There are used fuses and spare fuses in the installed/removed fuse holder. Remove the

used fuse and replace it with a spare fuse.

A: Spare Fuse

B: Used Fuse

Memo

One piece of a spare fuse is provided by default. When purchasing

new fuses, refer to the following product name and number:

w Fuse Product Name: CARTRIDGE FUSE

w Fuse Product Number: EP10-003567

5-15

Maintenance

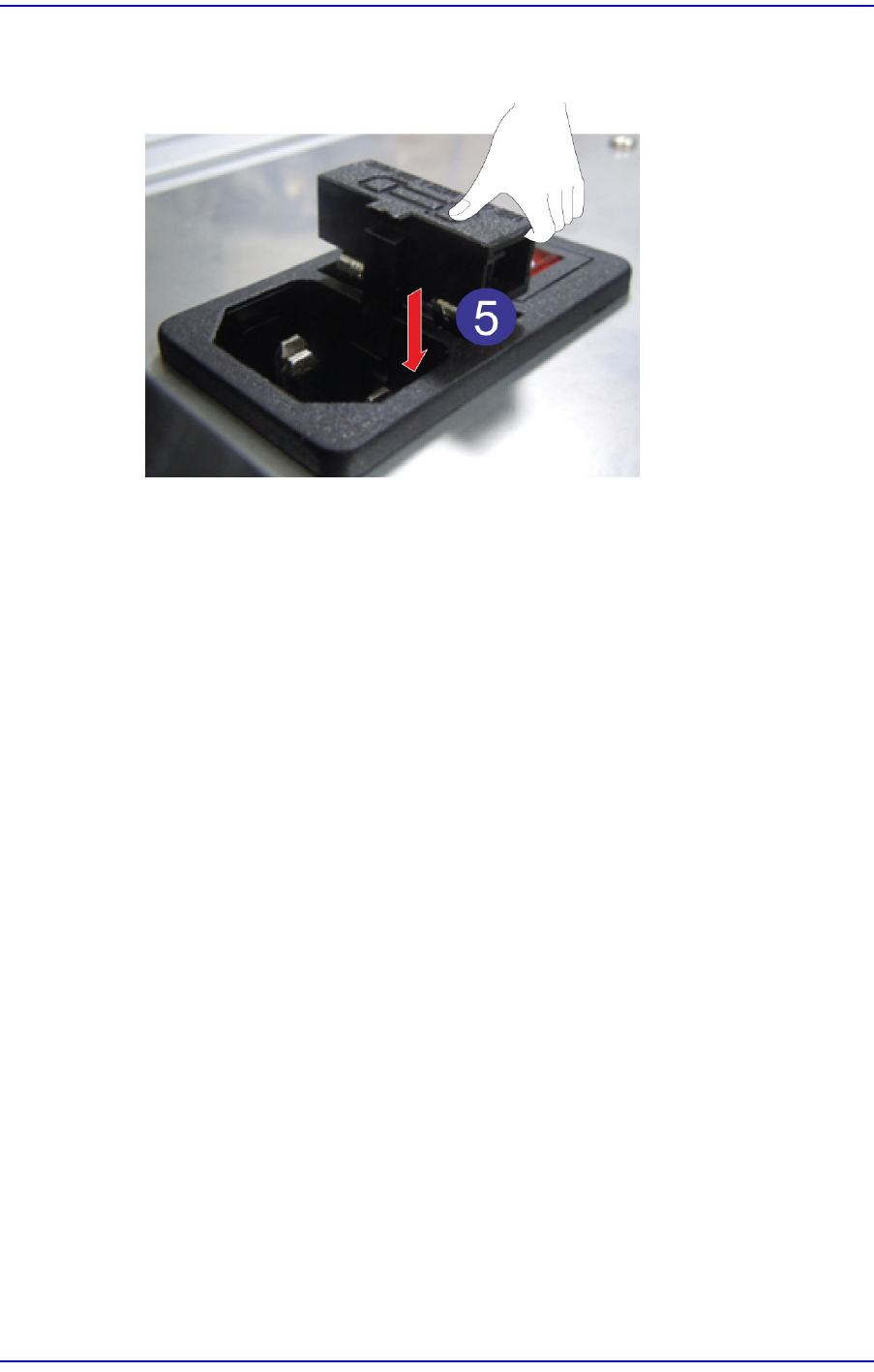

5. Align fuse holders in the fuse holder groove and install the fuse holder by pressing it

with a hand.
