User's Guide For Tape Feeder Calibration Jig
3.4.2. Tape Feeder Sensor Initialization (Sensor Initialize)
When the main board of the tape feeder was replaced, or index motor, index gear, sprocket
components were reassembled or replaced, initialize the tape feeder sensor according to
the following procedure:

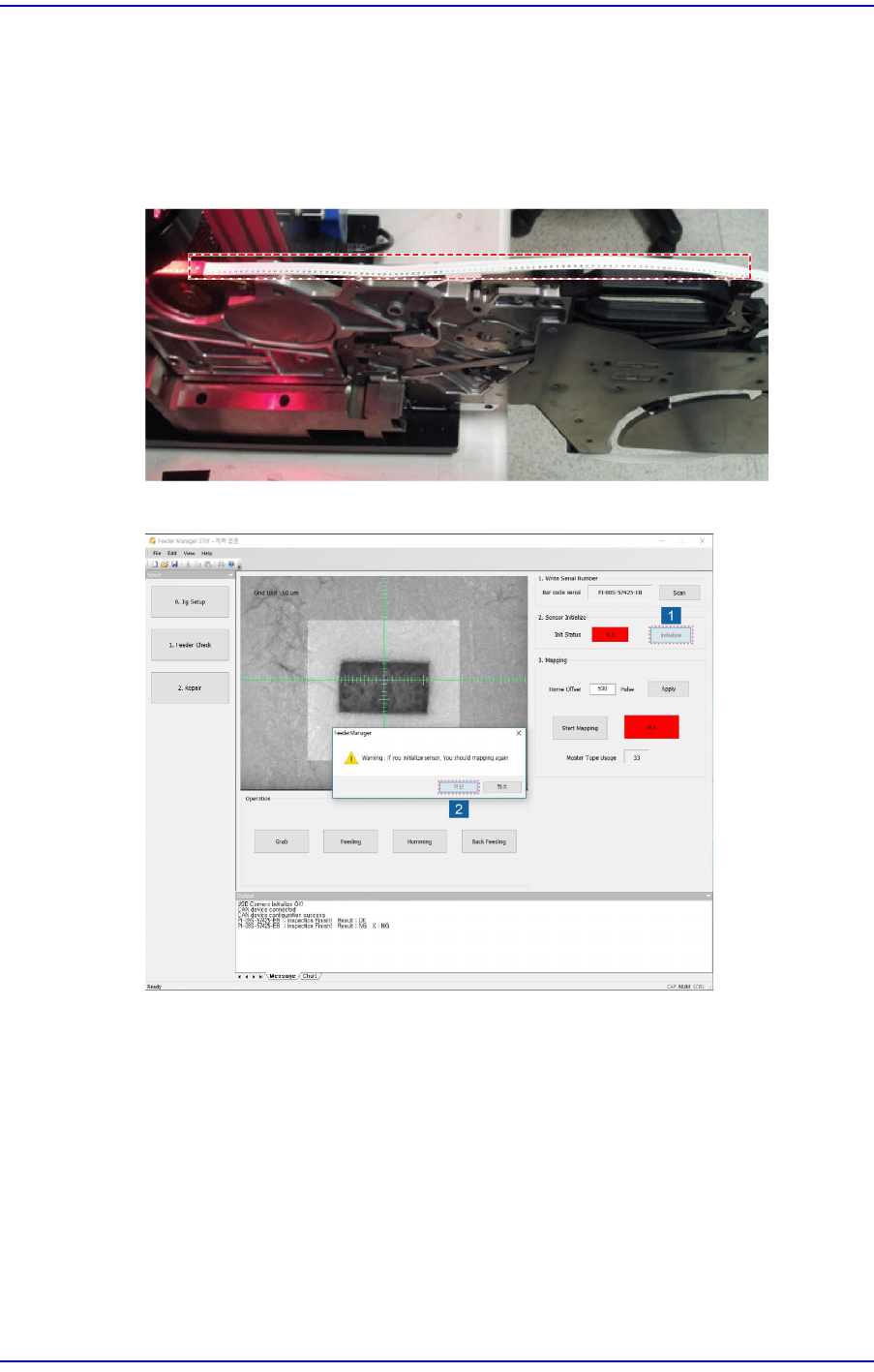

1. Insert the empty carrier Paper tape (longer than 100cm).
2. Run the calibration jig program and click the <Initialize> button.

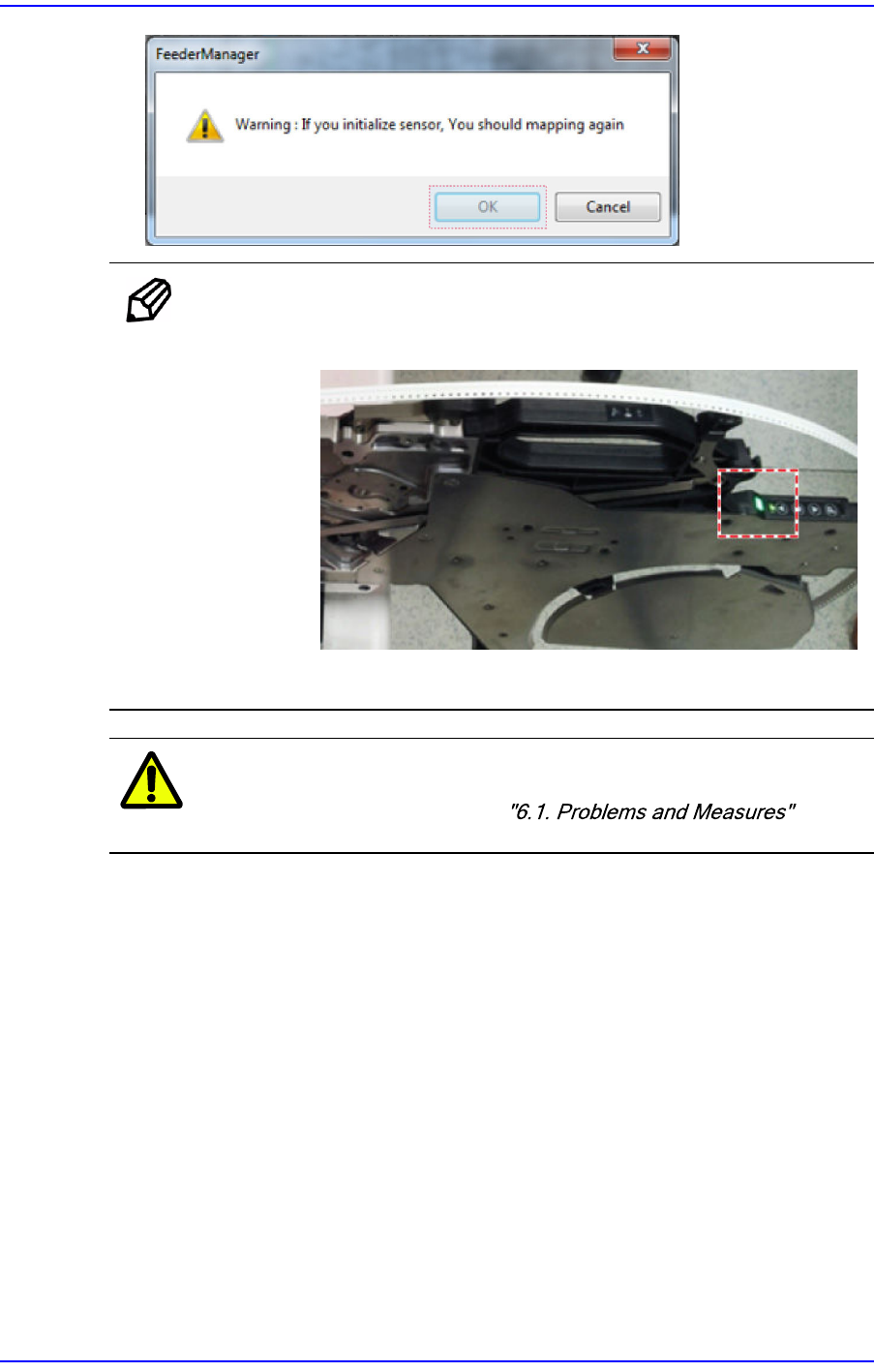

If there is an existing sensor value, the message, "If you initialize sensor, You should
mapping again" is displayed. Click the <OK> button to delete the existing sensor
value and initialize the sensor.
Once the sensor is initialized, the mapping value is deleted. Therefore, perform
mapping inspection again. For more details about mapping, refer to "3.4.3. Mapping
Inspection".
3-21
Tape Feeder Calibration
Memo
If the sensor is initialized successfully, the feeder status LED turns
green.
If the sensor initialization fails, the feeder status LED turns red.
Caution
If sensor initialization fails more than 3 times, solve the
problem referring to .
3-22
User's Guide For Tape Feeder Calibration Jig
3.4.3. Mapping Inspection (Mapping)
If the part supply accuracy of the feeder is not good or the feeder sensor is initialized,
perform mapping inspection as follows:
1. Insert the master tape into the tape feeder referring to Steps 1~4 in "3.3.3. Inspection
of Part Supply Accuracy of Feeder".
2. Insert the master tape into the feeder and set the Home Offset and then move the
transfer hole of the master tape inside the vision recognition area.
w <Home Offset> Edit Box
Set the Y offset so that the transfer hole of the master tape will be inside the vision
recognition area.
Increasing the Home Offset value will move up the master tape transfer hole in the
vision window and reducing the Home Offset value will move down the master
tape transfer hole.
Memo
When changing the Home Offset value, it is recommended that the
changed Home Offset value will not exceed 50 compared to the
existing Home Offset value.
w <Apply> Button
In order to apply the set offset in the <Home Offset> edit box, click this button.
