4.检测感应器选择的模式是如下图，所以我们要选择在这个范围内不报警，所以要调感应器让感应器的光照在你想要锡膏的

厚度（小于这个数就会报警），然后按感应器TEACH键，然后再让感应器光照在最大的锡膏厚度上，再按TEACH，这样就

可以了。

注意：OUT亮了才有用

The mode selected by the detection sensor is as shown in the figure below, so we need to choose not to alarm in

this range, so we need to adjust the sensor to make the sensor light the thickness of the solder paste you want (it

will alarm if it is less than this number), then press the sensor teach key, then let the sensor light the maximum

solder paste thickness, and then press teach, so it is OK.

Note: only when out is on

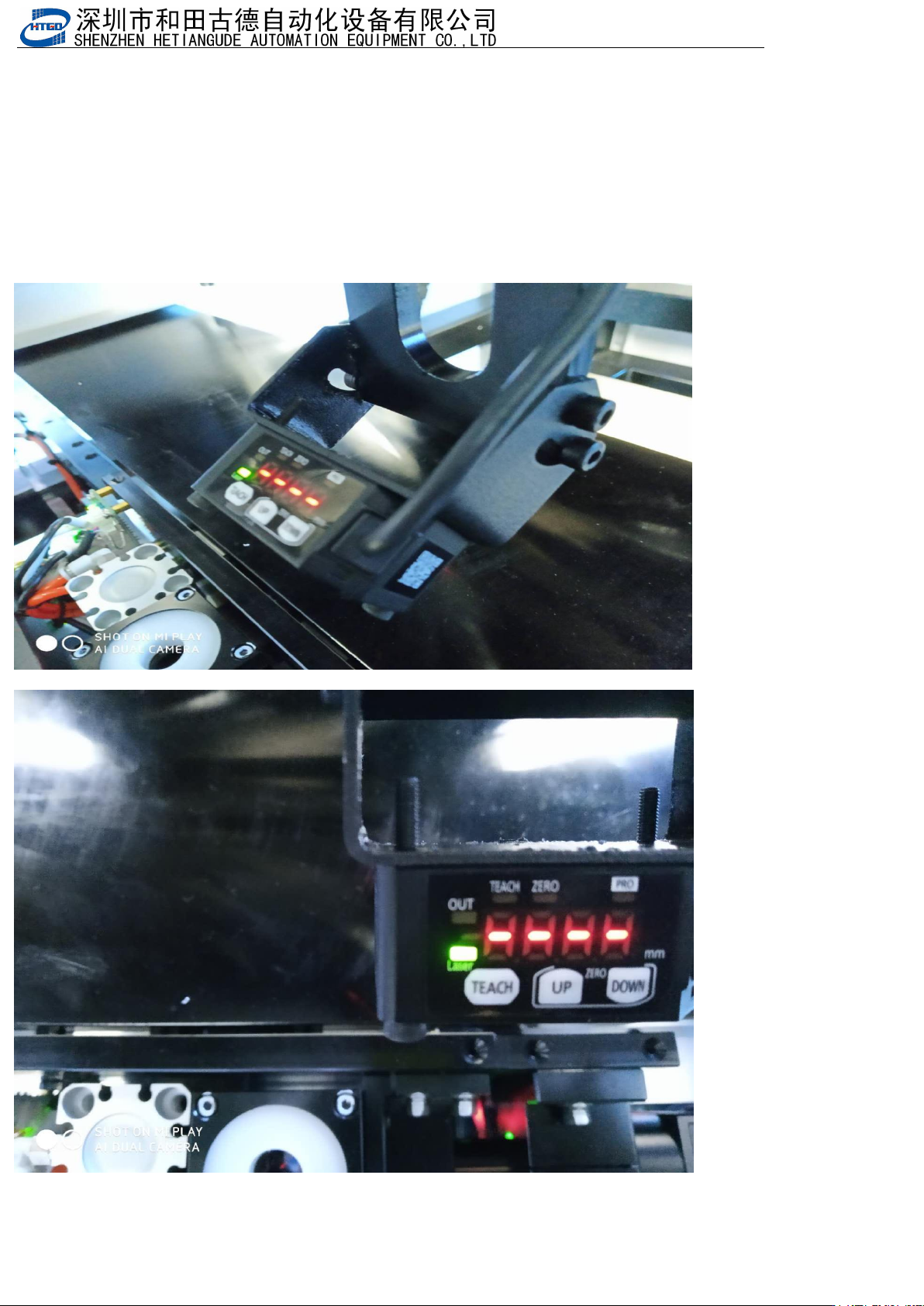

调感应器角度(Adjust the sensor angle)：

有信号OUT是黄灯(The signal OUT is a yellow light)

- 128

- 129

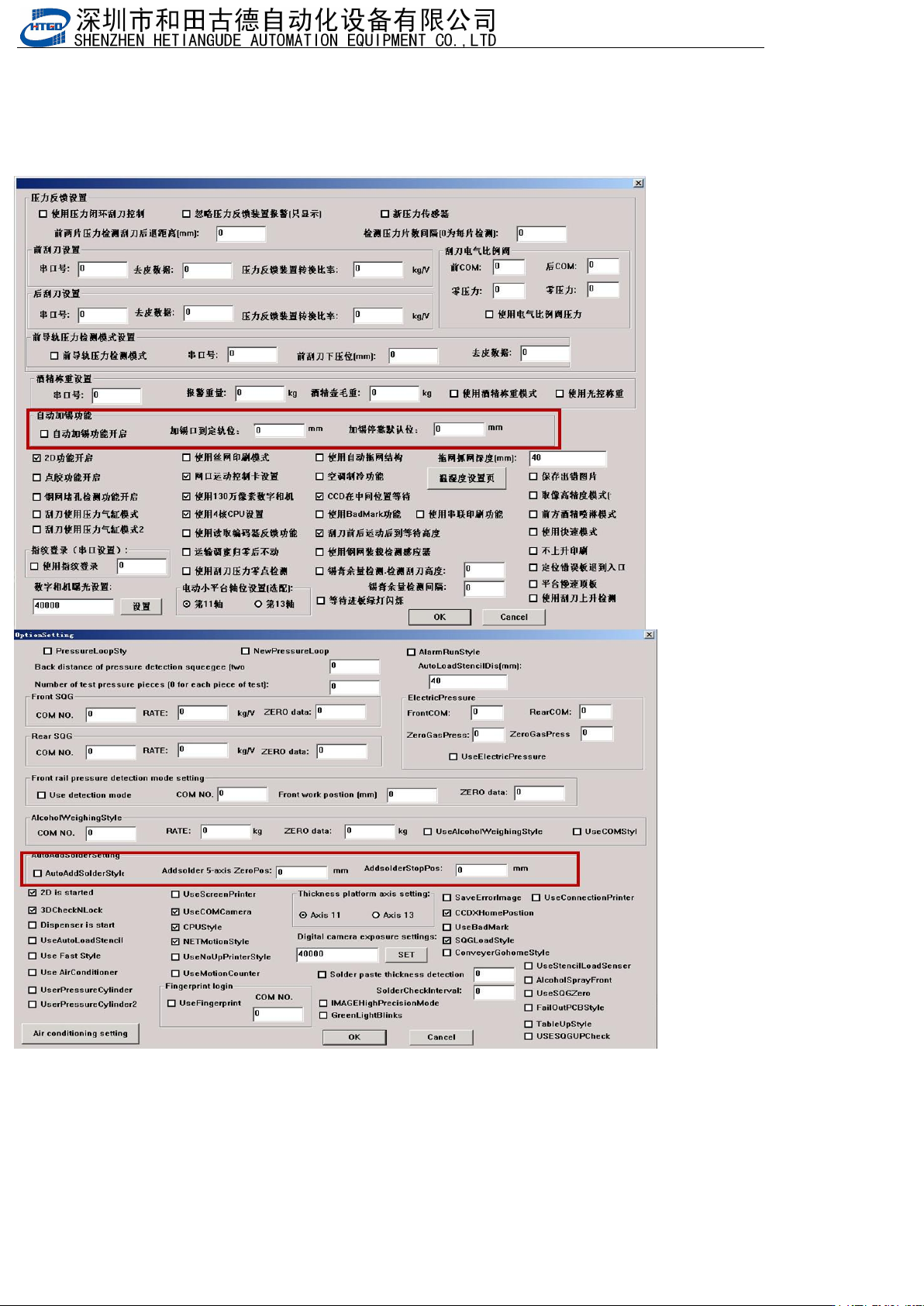

8.3自动加锡功能：Automatic tinning function

1.勾选

加锡功能，设置加锡口到定导轨位置，有旋转气缸的要设置加锡停靠默认位

Check the soldering function and set the soldering port to the fixed guide rail position. If there is a

rotating cylinder, set the default soldering stop position
