- 139
-

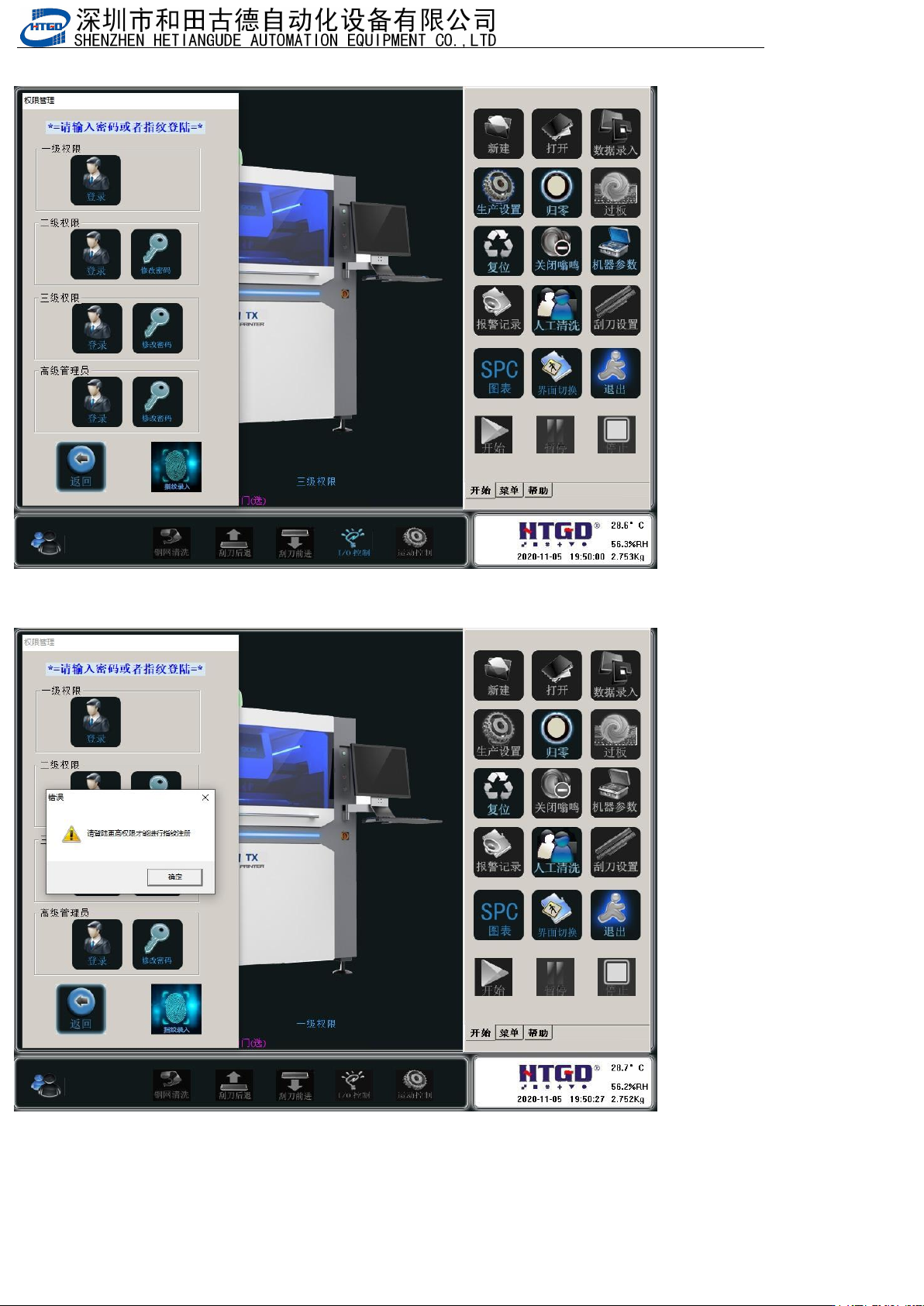

2.保存确定后，退出软件，重新进入软件，然后打开指纹录入
After saving and confirming, exit the software, re-enter the software, and then open fingerprint recording
3.如果提示这个，说明权限不够，要登入三级权限或以上
If this prompt appears, it means that the permissions are not sufficient and you need to log in with third level or
higher permissions
- 140
-
4.

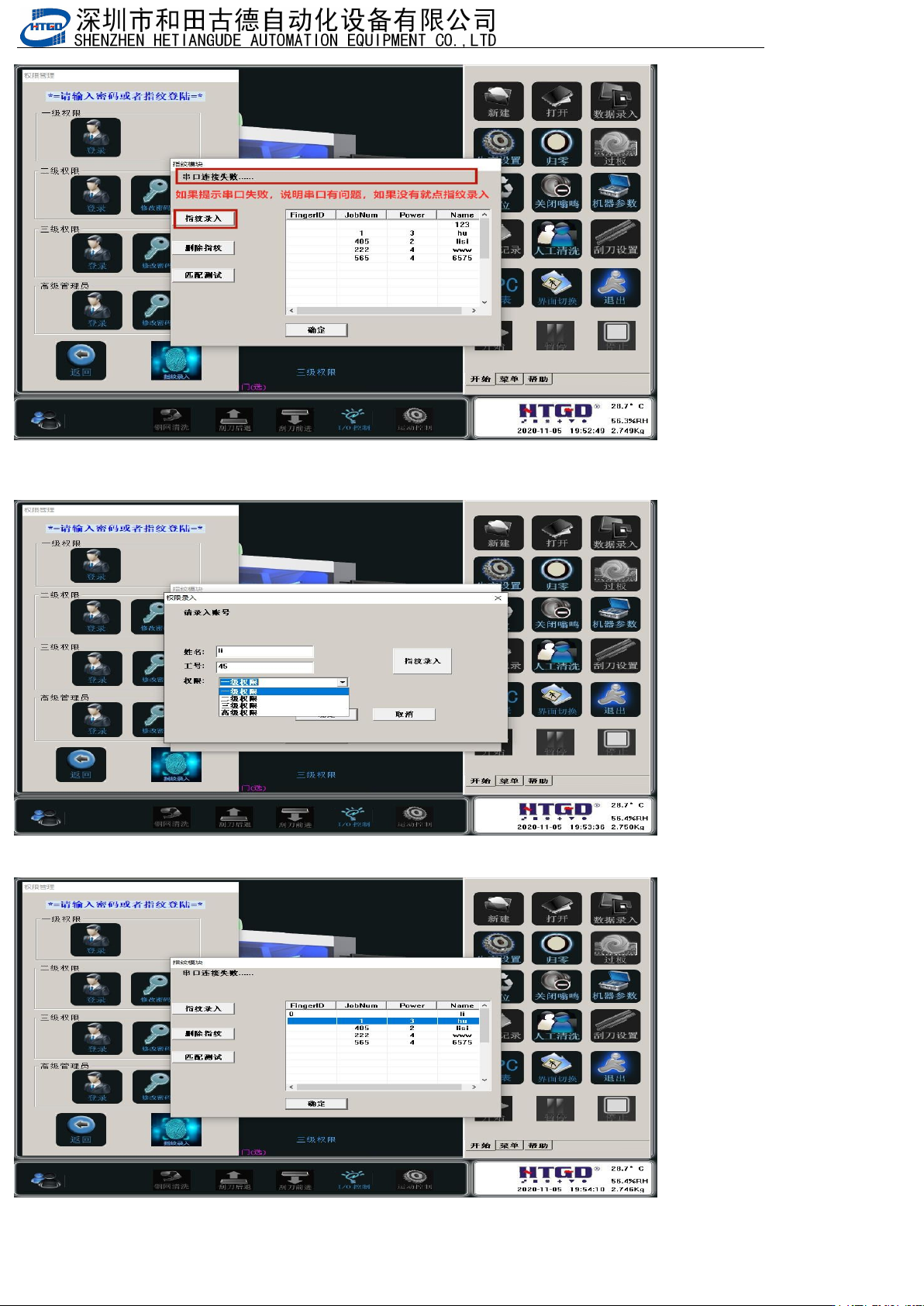

5.填入姓名，工号，选择权限等级，然后点击指纹录入，然后根据提示操作
Fill in your name, employee ID, select the permission level, then click on fingerprint input, and follow the prompts
to operate
6.删除指纹，选中哪个指纹删除哪个指纹，选中状态是
Delete fingerprint, select which fingerprint to delete, what is the selected status
- 141
-
8.8串联印刷机功能Serial printing machine function
锡膏印刷机串联生产功能，是两台印刷机在生产线上串联，两台机器间隔印刷。（第一块板过板机器1，到机器2印刷，第二
块板在机器1印刷，过板机器2）
The production function of solder paste printing machine in series is that two printing machines are
connected in series on the production line, and the two machines print at intervals. (The first board passes
through machine 1 and is printed on machine 2. The second board is printed on machine 1 and passed through
machine 2.)

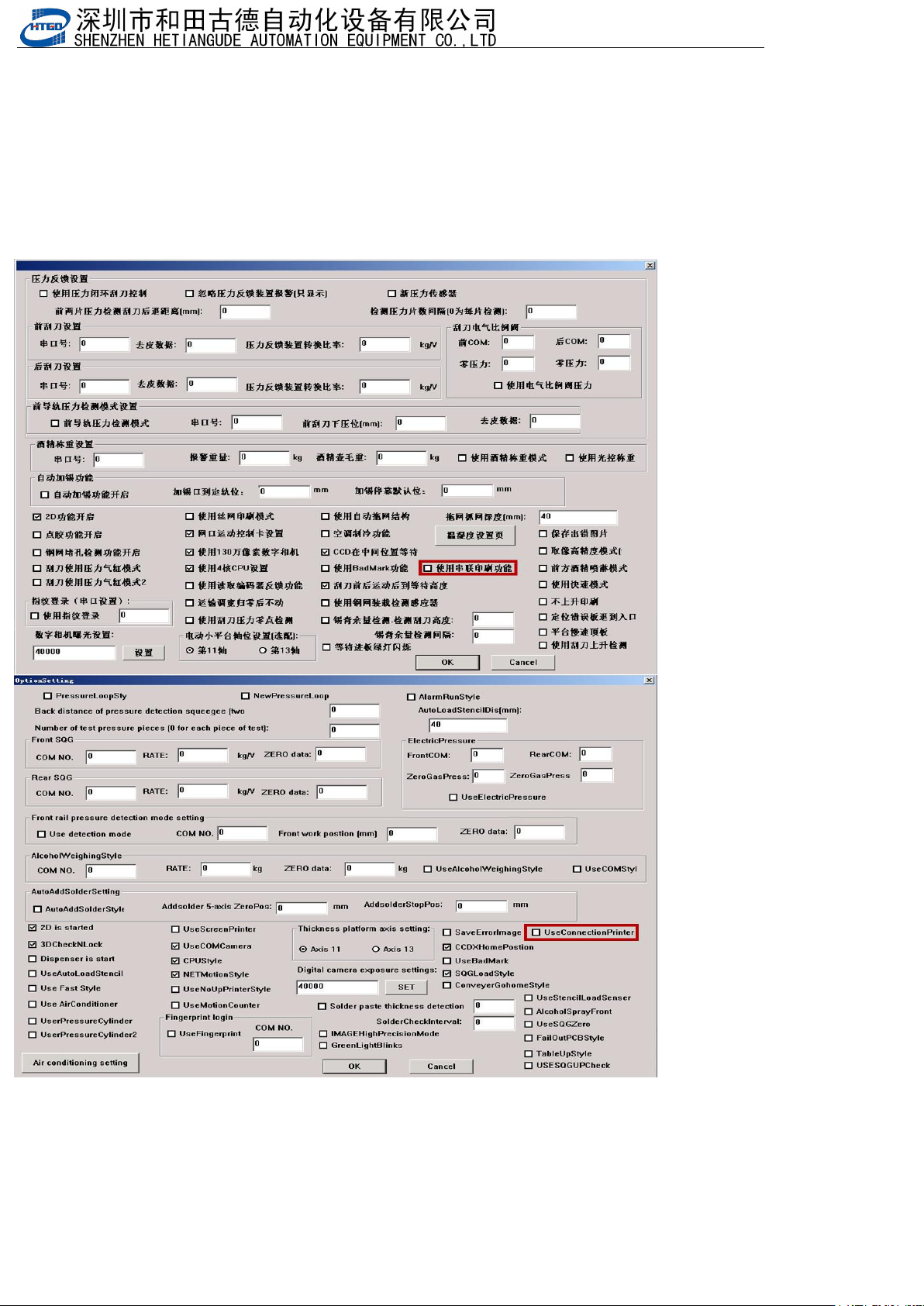

1.两台印刷机关掉标准SMEMA功能 Two printing machines have lost the standard SMEMA function
2.选配项勾选使用串联印刷功能 Select the option to use serial printing function
