- 53
-

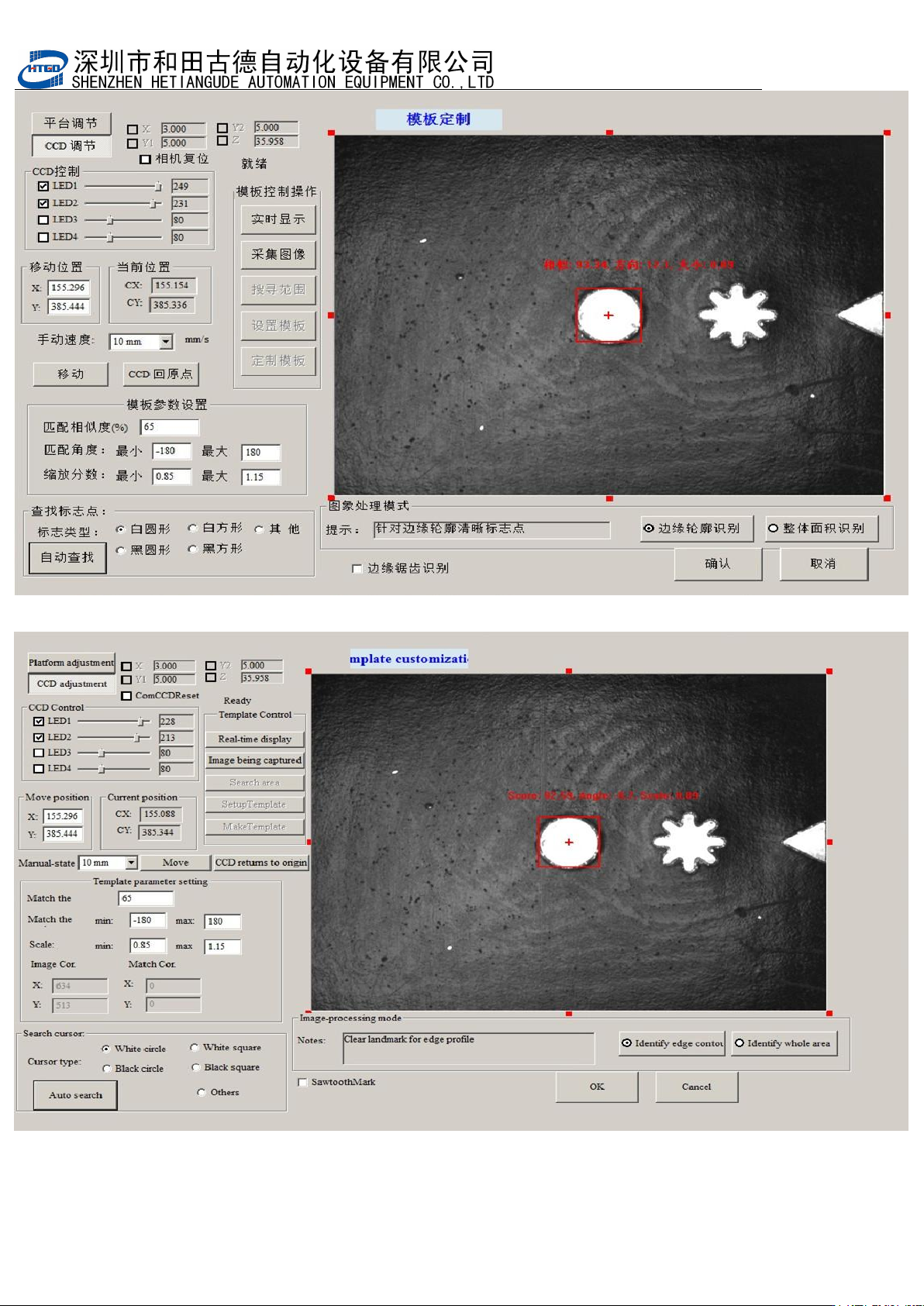

图
3-15
（点击自动查找）
Pix3-15 click “自动查找”(automaticsearching)button)
Pix 3-15 the PCB mark point will exist in the field of vision. Clicking
- 54
-
注：各按钮功能解释
Notice: The introduction of all the buttons.
A，[平台调节]：点击输入密码后调节平台的高度，平面位置等；
(platform adjustment): Adjust the height and position of the platform after clicking
“
输入密码
”
（
input password
）
button.
B，[CCD 调节]：移动 CCD 位置；
(CCD adjustment): Remove CCD.
C，[LED 1,2,3,4]：调节 LED 灯的亮度
[LED 1,2,3,4]: Adjust the brightness of the LED.
D
，
[
手动速度
]
：使用键盘上方向键移动
CCD
的速度；
(manual speed): Adjust the CCD speed by pressing the direction keys on the
keyboard.
E，[匹配相似度]：MARK 点质量匹配分数设定分数越高，Mark 点越难设别，精度越高；
反之反是；
(matching degree of similarity):The setting score is higher for the mark point
matching, it is more difficult to set mark and the accuracy is more higher. And
vice versa.
F
，
[
移动位置
]
：修改里面的参数后点
[
移动
]
，
CCD
会移动到对应的坐标上去；
(position change): Revise the parameter and click “移动”（move）button, the CCD
will move to the corresponding position.
G
，
[
当前位置
]
：显示当前
CCD
的坐标；
(current position): Show the current position of CCD.
H
，
[CCD
回位
]
：点击后
CCD
回到原点位置；
(CCD comes back to the origin): CCD will come back to origin after clicking this
button.
I, [
移动
]
：点击后
CCD
从
[
当前位置
]
移动到
[
移动位置
]
；
(move): CCD will move from origin to the changed position after clicking this
button.
- 55
-
J，[标志点类型]：5 种选项供勾选；
(remark type):There are five options for selecting.
K，[自动查找]：系统自动识别选定类型 Mark 点；
(automatic searching): The system will automatic searching the selected mark
point.
L，[模板控制操作]：设定搜索范围，并当自动查找失败时手动设置 MARK 点；
(template control operation): Specify the searching scope. When the automatic
searching fails, operator sets the mark point manually.
M
，
[
实时显示
]
：实时显示图像，手动设置
MARK
点使用；
(real-time display): Display the real-time image. Click this button when set the
mark point manually.
N
，
[
采集图像
]
：采集当前图像，手动设置
MARK
点使用；
(image capture): Capture the current image. Click this button when set the mark
point manually.
O，[搜索范围]：在视域中划出一个区域后点击该按钮设定搜索范围，系统只在该范围
中识别
Mark
点，该功能用在视域中有
2
个以上相似
Mark
点时。用于过滤掉不需
要识别的
Mark
点；
(searching scope): Click this button to set the searching scope after drawing a
region in the field of vision. System only identifies mark point in this scope. This
function can be used when there are above 2 similar marks in the field of vision
and it can filter the useless identified mark points.
P，[设定模板]：在视域中标示一个图像范围，点击『定制模板』系统将该范围中图形
识别为
Mark
点模板，
(template setting): Mark a image scope in the field of vision. Click “
定 制 模
板”(template customization) button and the system will identify the image in this
scope as the template of mark point.
Q，[定制模板]：将设定的图形范围作为 MARK 点模板；
(template customization): Setup the image in this scope as the template of
mark point.
