- 131 - 8.4 自动拖钢网功能（ Automatic dragging steel mesh function ）： 1. 勾选使用自动拖网结构，并设置抓网深度，进行抓网时不能推钢网，抓网装置固定钢网时要有间隙，所以抓网装置上的检测钢网的光感应器的位置就要设置合适位置 Check the option to use an automa tic trawl struc ture and…

- 130

2.设置加锡间隔

Set tin addition interval

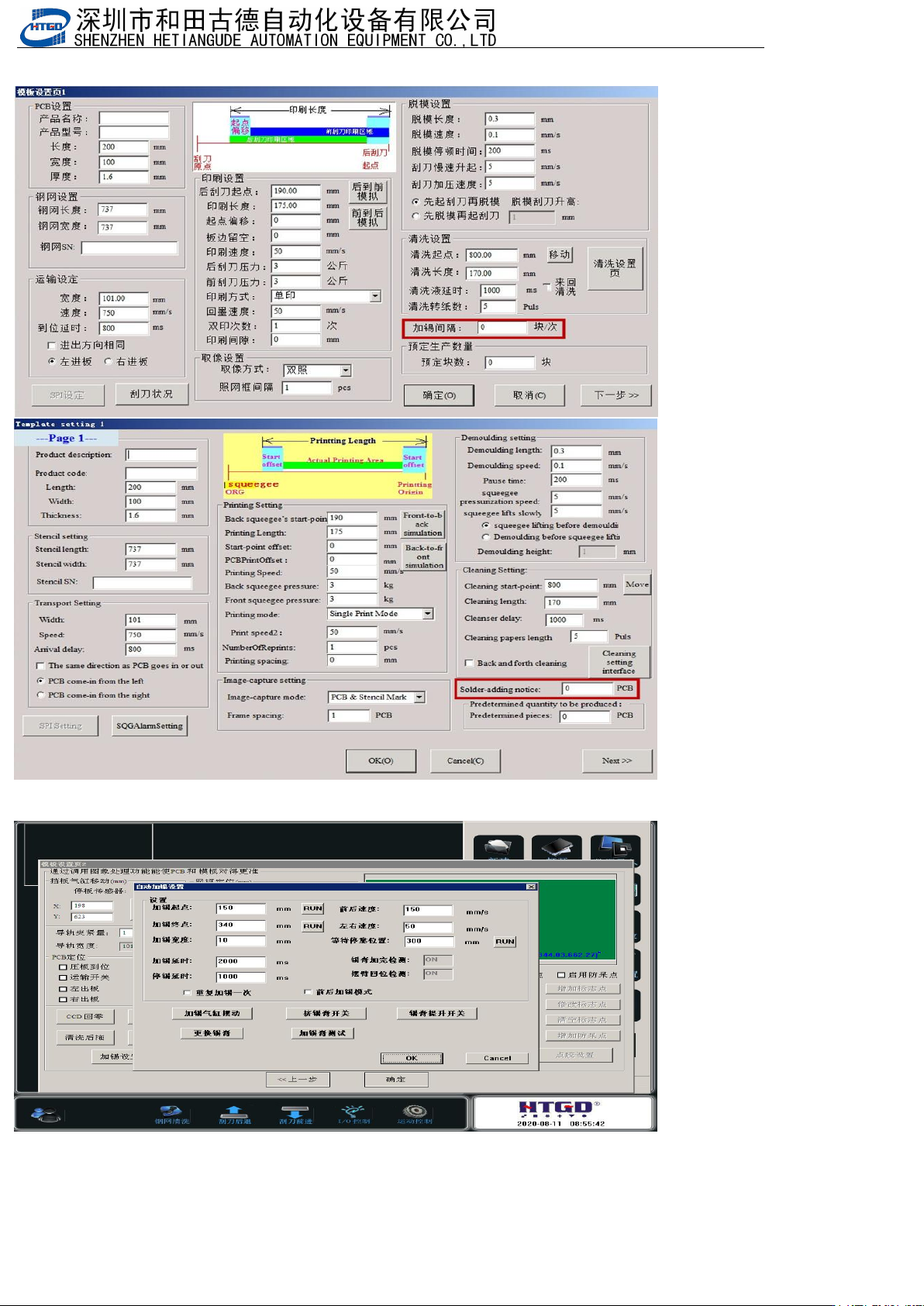

3.设置加锡起点，终点，停靠位置，锡膏厚度

Set the starting point, endpoint, stopping position, and solder paste thickness for soldering

- 131

8.4

自动拖钢网功能（

Automatic dragging steel mesh

function）：

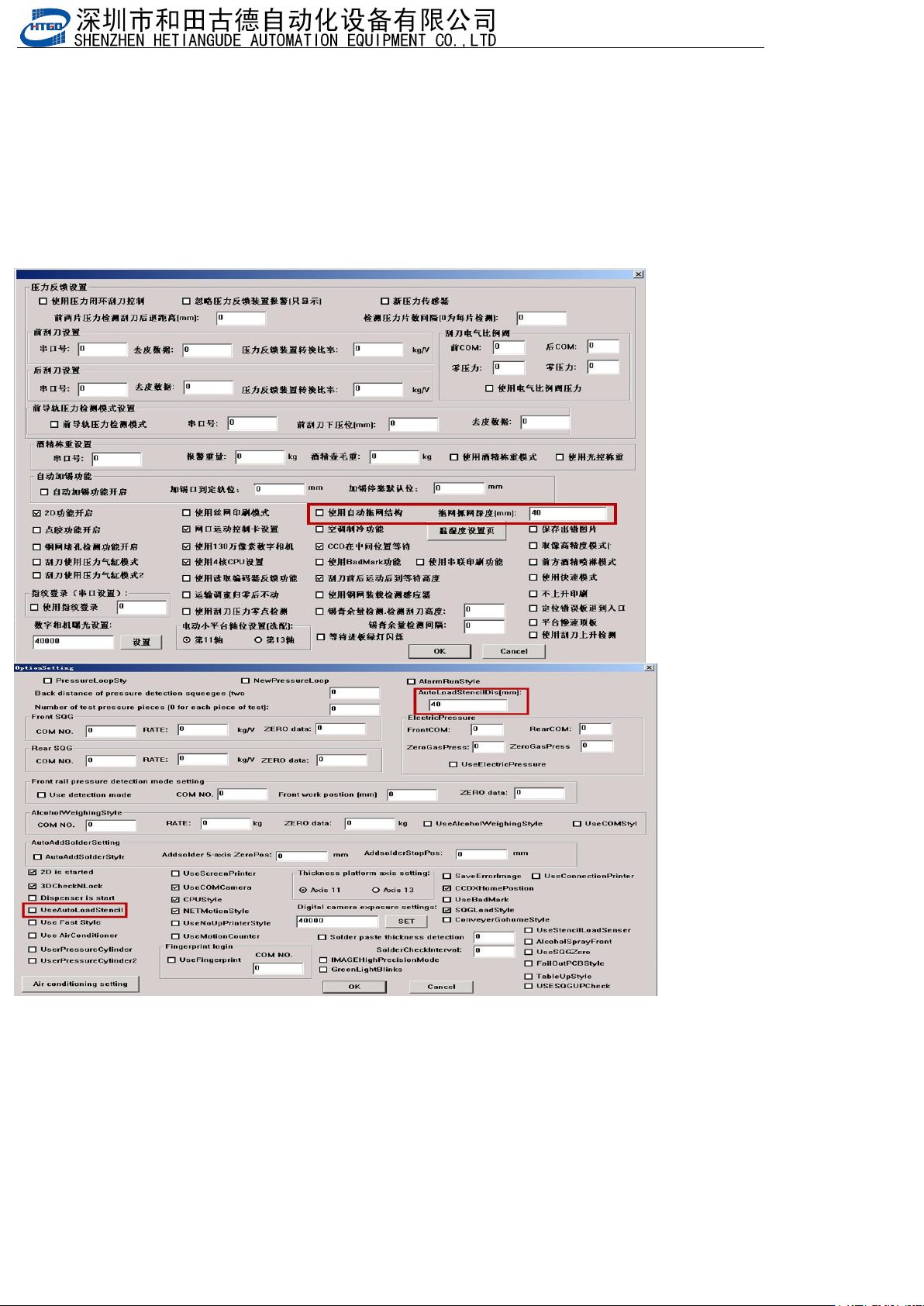

勾选使用自动拖网结构，并设置抓网深度，进行抓网时不能推钢网，抓网装置固定钢网时要有间隙，所以抓

网装置上的检测钢网的光感应器的位置就要设置合适位置

Check the option to use an automatic trawl structure and set the depth of the net. When grabbing the

net, do not push the steel net. There should be a gap when the net grabbing device fixes the steel net.

Therefore, the position of the photosensitive sensor for detecting the steel net on the net grabbing

device should be set to an appropriate position

- 132

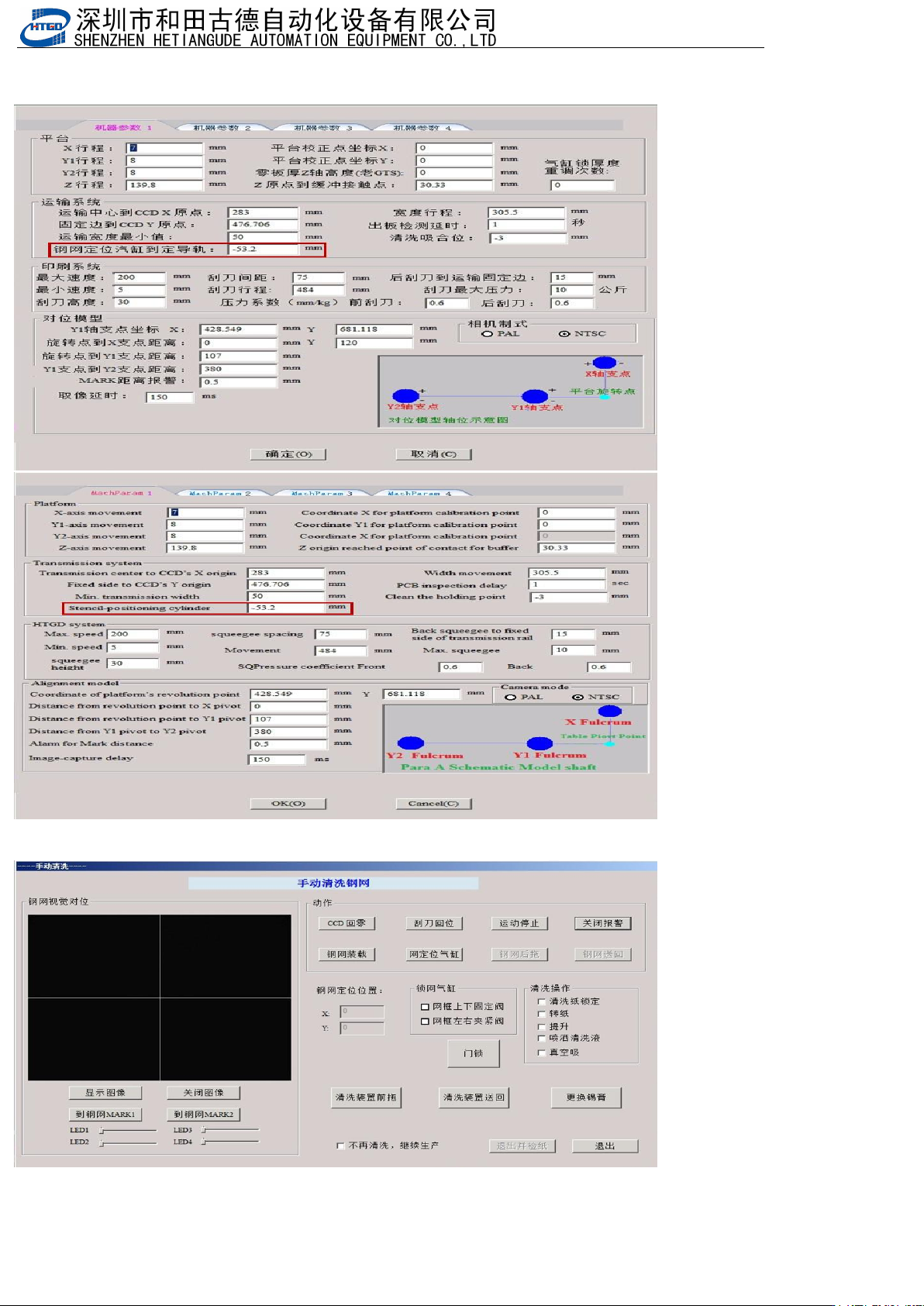

2.设置钢网定位气缸到定导轨距离，这样钢网送回去的位置才对

Set the distance between the steel mesh positioning cylinder and the fixed guide rail, so that the position where the

steel mesh is sent back is correct

3.生产清洗纸报警，钢网后拖，换清洗纸，钢网送回

Production cleaning paper alarm, dragging steel mesh back,changing cleaning paper, steel mesh returned
