- 75 - 图 4-6 （过板界面） Pix (board pass int erface)

- 74

项目有。

: Production setting. Clicking this button will display the interface of pix 3-18.

The settable items in the interface are as following:

生产设置：有很多选项，勾选后执行，反之不执行；

Production setting: Many options can be selected. Start execution after the selection

and vise versa.

平台补偿：输入平台补偿值；

Platform compensation: input the platform compensation value.

刮刀

向补偿：当机器对位精度达到要求时，印出来的锡膏是偏的，这时就要根据偏移

的数值输入相应的补偿。前后刮刀均不一样。

The Y direction compensation of the scraper: when the matching accuracy meets the

requirement and the printing solder paste is offset, the operator needs input the

corresponding compensation value according to the offset data. It is different for front and

back scraper

其他设置：同样有很多选项，勾选后执行，反之不执行；

Other settings: Many options can be selected. Start execution after the selection and

vise versa.

．：归零按钮。单击该按钮后按软件提示操作机器将执行归零动作。如图

，

3-3

，

3-4

所示。

: Return to zero. The print will do the movement of returning to zero

after clicking the button. See Pix 3-2，3-3，3-4.

．：过板功能。点击该按钮后出现图

4 - 6

界面。机器只执行过板功能，相当

于过板机使用。

: Pass board. The interface in the pix 4-6 will display by click this

button. The printer will pass the board and it can be used as a

equipment which can pass board.

- 75

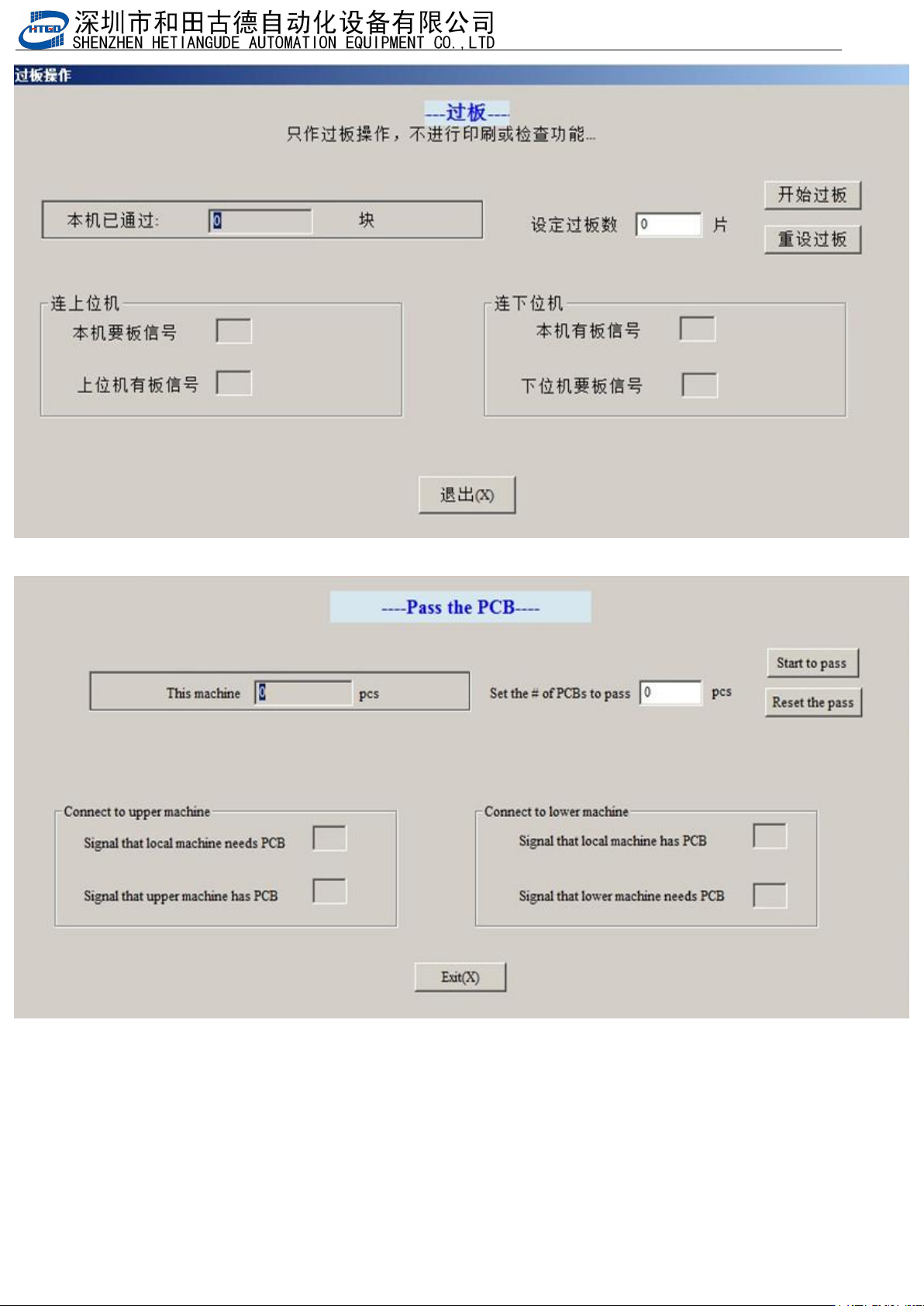

图 4-6（过板界面）

Pix (board pass interface)

- 76

7：

：复位按钮。单击该按钮后机器各信号复位。单击该按钮不会出现任何

界面。

: Reset. All signals will reset by clicking this button. There is no

interface display by clicking this button

8：：

关闭蜂鸣按钮，单击该按钮后报警声音关闭，单击改按钮不会出现任何界面

: Turn off buzzer. The alarm sound fades by clicking this button.There

is no interface display by clicking this button.

9．：机器参数设置。点击该按钮可以对机器个参数进行设置。如图

4-7，4-8，4-9，4-10。

: Printer parameter setting. Set the parameters by clicking this button.

See pix 4-7

，

4-8

，

4-9

，

4-10.

图 4-7（机器参数 1）
