- 97 - 图 5 -5 （请把门关闭） Pix 5-5(ple ase close the door) 6 清洗 纸 已 经 用 完 警 示 如图 5-6 所 示 The cleaning papers h ave been used up . See pix 5-6. 该对话框出现时，三色灯会变成红色，蜂鸣器会呜呜作响，同时机器停止运转。提示清洗
- 96
-
出现该报警，通常是伺服马达过载引起。首先按下
“
紧急按钮
”
断电状态下检查机器机械
部分，是否有干涉或运行不到位现象。如有类似现象，请找到原因后立刻排除；如机械部
分没有任何问题，请检查线路，是否有松动、接触不良等现象。最好重新拔插下与伺服电
机及其驱动器连接的插头。排除完所有的问题后将紧急按钮回弹，使机器上电，并复位、
归零、重新运行程序。
Usually it is caused by overload of the servo motor when this alarm occurs. Firstly press
the emergent button and check whether the mechanical section of the equipment at the
power down state has interfere or wrong running phenomenon. If there are such
phenomenons, please find the reason and exclude the fault. If the mechanical section is
good, please check whether the line is loose or disconnected. It is better to replug the plug
which connects the servo motor and servo driver. Rebounce the emergent button after
excluding all the faults. Turn on the power of the equipment, reset, and return to zero and
rerun the program.
5 门开关警示，如图 5-5 所示 。这是在生产设置（图 3-18）里面勾选了使用门开关后才会
出现的状况。当勾选了该功能时，前后门，任一个处在打开状态，机器都会停止工作，并提
示
“
请把门关闭
”
。这时我们把门闭，并依次按下机器右前面板上的
“
RESET
”
按钮和
“
START/STOP
”
按钮，机器正常工作。如不勾选该功能，则机器运行过程中开启前后门
系统会以
1/3
速度工作，很危险。所以建议生产的时候将该选项勾上。
The alarm of the open/close of door. See pix 5-5. This suitation will occur after selecting
the door switch function in the interface of production setting (pix 3-18). If select this
function, one of the front/back door is open, the equipment will stop working and reminder
“请把门关闭”(please close the door). Then operator needs close the door and press in turn
the “RESET” button and “START/STOP” button which is on the front right panel of the
equipment and the equipment can work normally. If do not select this function, open the
front or back door during the operation, the system will work at 1/3 speed. It is very
dangerous. So HTGD recommends selecting this function during the operation.
- 97
-
图 5-5（请把门关闭）
Pix 5-5(please close the door)

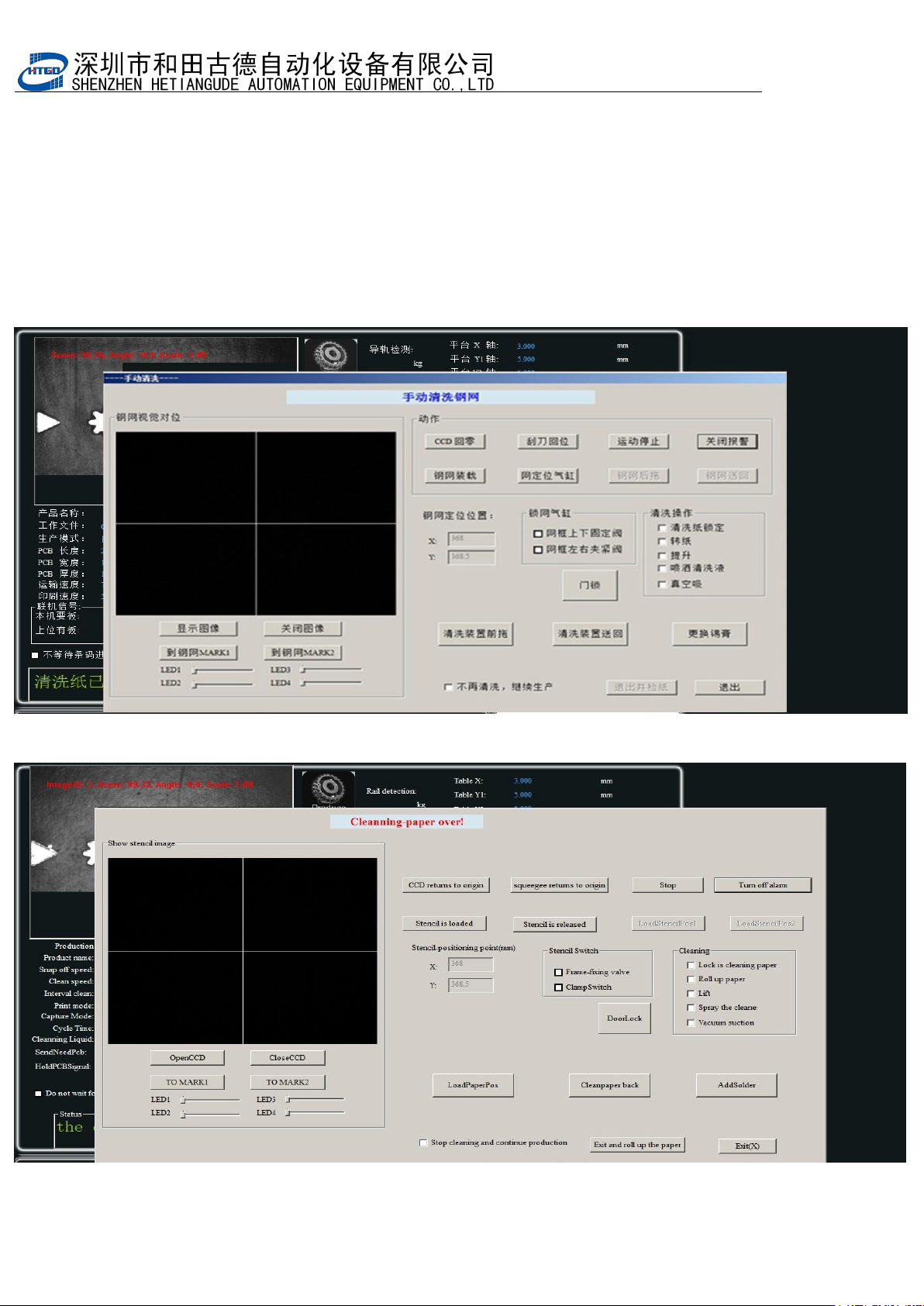

6
清洗纸已经用完警示如图
5-6
所示
The cleaning papers have been used up. See pix
5-6.
该对话框出现时，三色灯会变成红色，蜂鸣器会呜呜作响，同时机器停止运转。提示清洗
- 98
-
纸用完了。请打开机器后门更换新的清洗纸，更换完成后关闭后门，并依次按下机器右前面
板上的
“
RESET
”
按钮和
“
START/STOP
”
按钮，机器正常工作。
The tri-color light will become red and the buzzer will make whining noise and equipment
will stop working at the same time when this dialogue box displays. It means that the
cleaning papers have been used up. Please open the back door of the equipment to
replace the new cleaning papers. Close the back door after the replacement of the cleaning
papers and press in turn the “RESET” button and “START/STOP” button which is on the
front right panel of the equipment. Then equipment can work normally.
图
5-6
（清洗纸用完）
Pix 5-6(the cleaning papers have been used up)
