6 MACHINE CONTROL 6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 101 Connector Description I/O IO1 RH Auxiliary Conveyor - LH Board Sensor Input IO2 RH Auxiliary Conveyor - RH…
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
100 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
6.5.4.2 ESIO-2 (ESIO 15)
IO1
IO2
IO3
IO4
IO5
IO6
IO7
IO8
ENC2
ENC1
24VIO
ENCFAULT
21
GLink
24VL
IO9
IO10
IO11
IO12
IO13
IO14
IO15
IO16
IO1 - IO8IO9 - IO16
ENC2
ENC1
ADC/DAC
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 101
Connector Description I/O
IO1 RH Auxiliary Conveyor - LH Board Sensor Input
IO2 RH Auxiliary Conveyor - RH Board Sensor Input
IO3 Rear Foil In (APC Conveyors) Input
IO4 Conveyor Lift Safety Rear Input
IO5 Air Pressure Input
IO6 Spare Input
IO7 Vacuum Filter Blocked Input
IO8 Jog Right Input
IO9 Conveyor Width Home (OTC Conveyors) Input
IO10 Spare
IO11 Spare
IO12 Spare Output
IO13 Spare
IO14 Conveyor Width Brake Outer Output
IO15 Conveyor Width Brake Centre Output
IO16 Spare
ENC1 Conveyor Width Right Encoder and Home (APC Con-
veyors)
ENC2 Top Plate Encoder Rear (APC Conveyors)
ADC0 Board Lift Plate Pressure Monitor Analogue Input
ADC1 Spare Analogue Input
ADC2 Vacuum Tooling Level In Analogue Input
ADC3 Solvent Level Analogue Input
DAC0 Clamp Plate Flow Pressure Analogue Output
DAC1 Vacuum Tooling Pressure Analogue Output
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
102 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

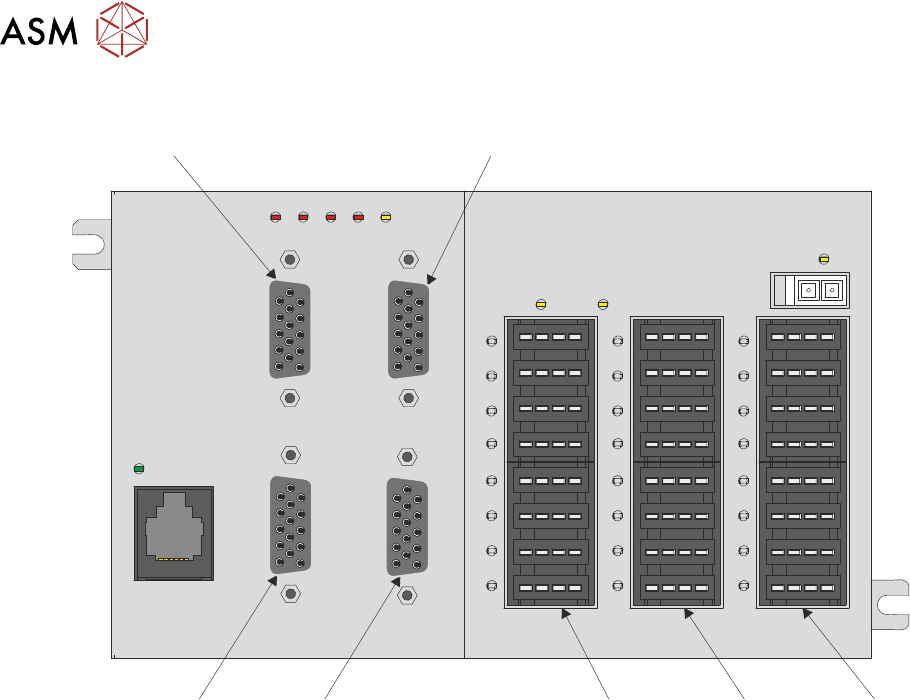

6.5.4.3 ESIO-3 (ESIO 12)
IO1
IO2
IO3
IO4
IO5
IO6
IO7
IO8
IO9
IO10
IO11
IO12
IO13
IO14
IO15
IO16
IO17
IO18
IO19
IO20
IO21
IO22
IO23
IO24
ENC4 ENC2
ENC3 ENC1
+24V3 +24V2
+24V1
ENCFAULT
4 3 2 1 +5V
IO1 - IO8IO9 - IO16IO17 - IO24ENC2ENC4
ENC3 ENC1
