6 MACHINE CONTROL 6.2 MACHINE CONTROLLER 76 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 6.2.3.4 USB The machine controller has USB 2 and USB 3.0 type connectors. The following graphic and table gives the connection details…
6 MACHINE CONTROL
6.2 MACHINE CONTROLLER
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 75

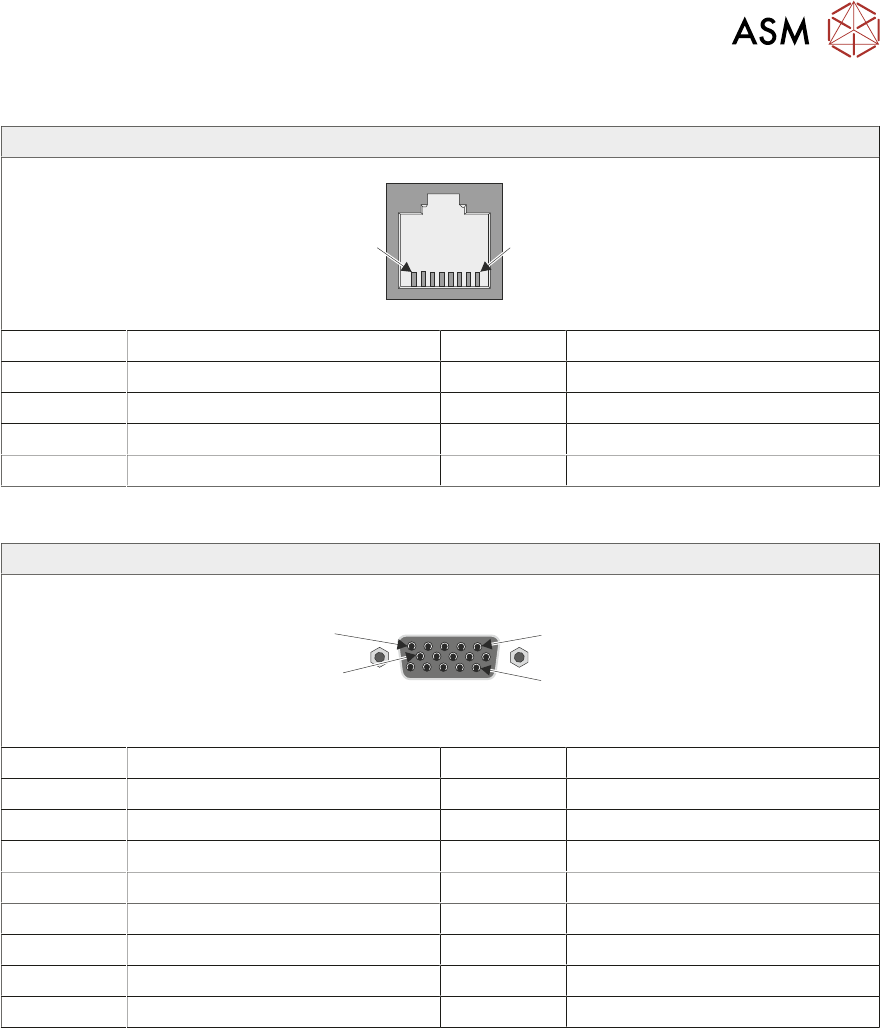

6.2.3.2 LAN Host Comms
RJ45
1
8
Pin No Signal Pin No Signal
1 +ve Transmit 5 N/C
2 -ve Transmit 6 -ve Receive
3 +ve Receive 7 N/C
4 N/C 8 N/C
6.2.3.3 SVGA Connector
15 Way Condensed D Type Socket
10
1
5
11
Pin No Signal Pin No Signal
1 Analogue Red 9 N/C
2 Analogue Green 10 V Sync GND
3 Analogue Blue 11 ID 0
4 ID 2 12 ID 1
5 H Sync GND 13 H Sync
6 Red GND 14 V Sync
7 Green GND 15 ID 3
8 Blue GND
6 MACHINE CONTROL
6.2 MACHINE CONTROLLER
76 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
6.2.3.4 USB
The machine controller has USB 2 and USB 3.0 type connectors.

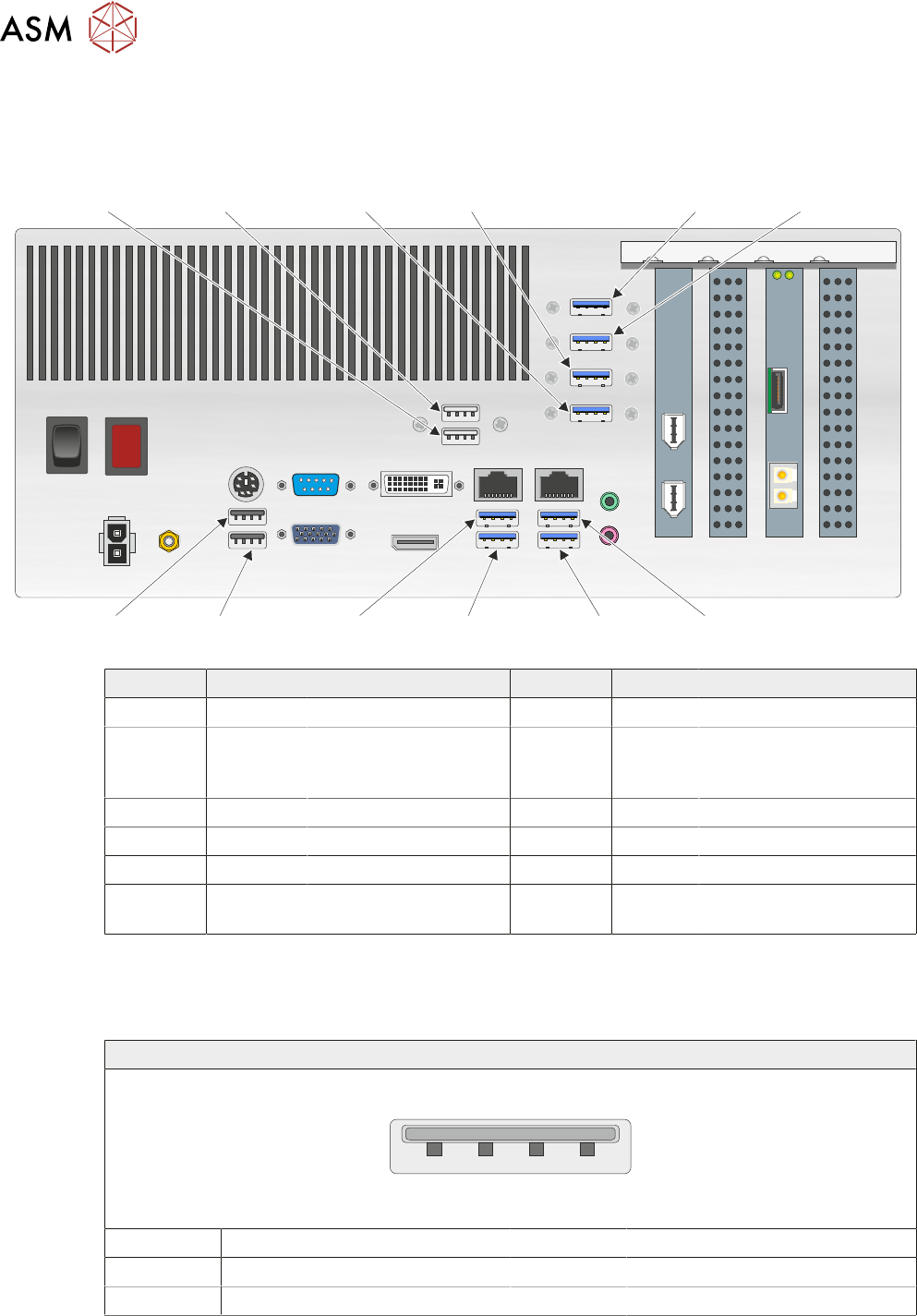

The following graphic and table gives the connection details for the USB ports:
USB 7
USB 6
USB 9
USB 2
USB 11
USB 3
USB 8
USB 5
USB 10
USB 1
USB 12
USB 4
Port Type Destination Port Type Destination
USB 1 USB 3.0 Cover Package Port 1 USB 7 USB 2 Keyboard and Trackball
USB 2 USB 3.0 Cover Package Port 2
(Handheld Barcode
Reader)
USB 8 USB 2 Power Monitor
USB 3 USB 3.0 Spare USB 9 USB 3.0 Spare
USB 4 USB 3.0 Spare USB 10 USB 3.0 Spare
USB 5 USB 2 Dongle USB 11 USB 3.0 Spare
USB 6 USB 2 Monitor Touchscreen USB 12 USB 3.0 RS232 Converter (Re-
mote Barcode Reader)
NOTE
Ensure that the correct USB ports are used. Manufacturers claim that USB 2 and USB 3.0 are
backward and forward compatible but there have been reported problems of some USB 2 devices
not working correctly in a USB 3.0 port.
USB 2 Type A Socket
1 2
3
4
Pin No Signal Pin No Signal
1 V Bus 3 Data +
2 Data - 4 GND
6 MACHINE CONTROL
6.2 MACHINE CONTROLLER
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 77
USB 3 Type A Socket
1 2
3
4
9 8 7 6 5
Pin No Signal Pin No Signal
1 V Bus 6 StdA_SSRX/TX+
2 Data - 7 GND_DRAIN
3 Data + 8 StdA_SSTX/RX-
4 GND 9 StdA_SSTX/RX+
5 StdA_SSRX/TX-

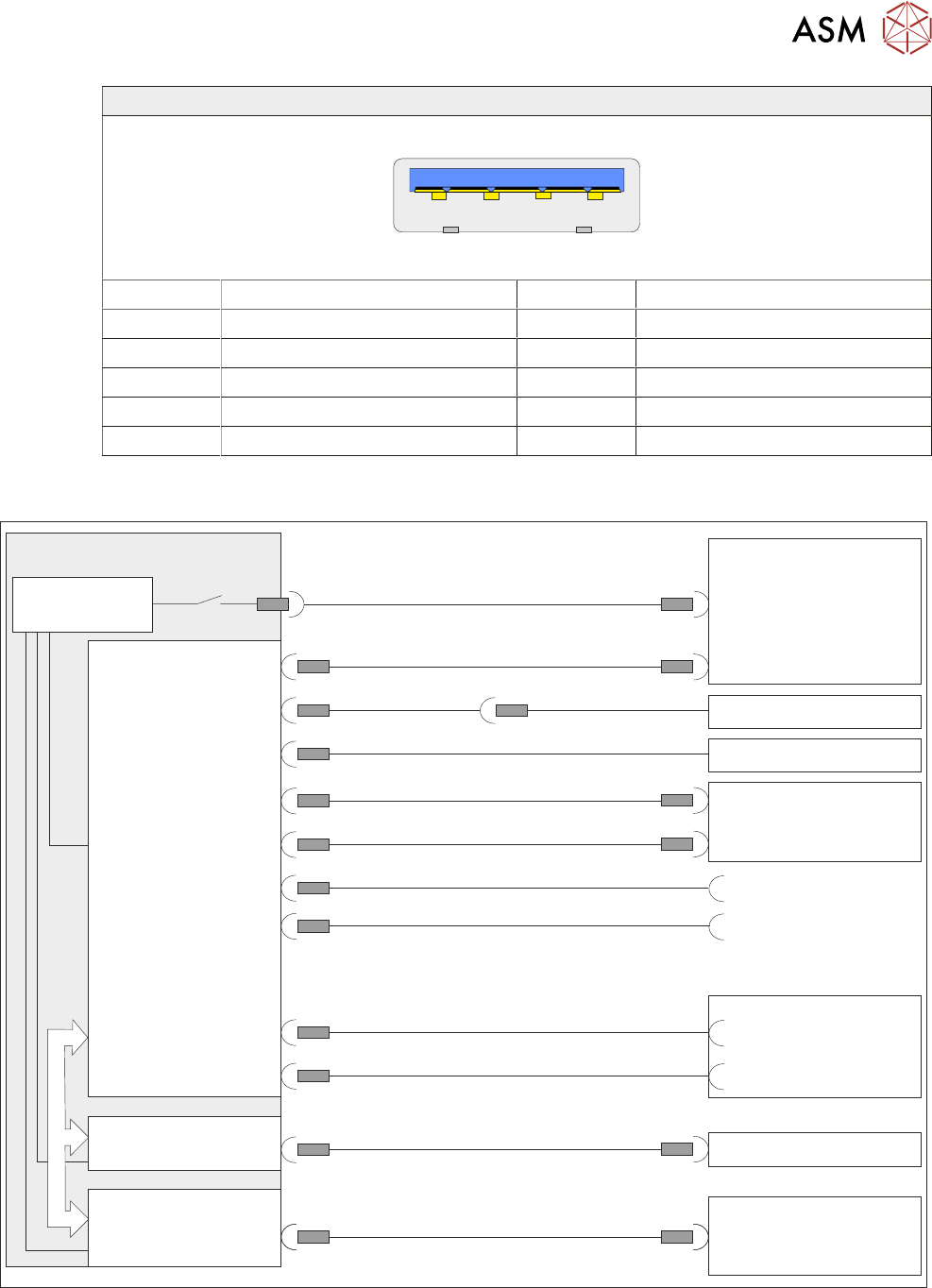

6.2.4 Schematic
Machine Controller (PC)
PCI Bus
Motherboard
DC to DC ATX
Power Supply
Firewire Card
NuMotion Card
M71 Power Supply
Enclosure
Cover Package Port 1
Cover Package Port 2
(Handheld Barcode
Reader Option)
Keyboard/Mouse
Camera
Monitor
Service Panel
NuMotion CPM
USB 8
M71PL30
PCPL15
M71PL43
24V US
Power Monitor
PCPL09
PCSK12
PCPL14
USB 7
FW 1
PCPL1 FL 1
SVGA
Touchscreen
LAN 2
LAN 1
USB 1
USB 2
Fibre Optic Links
USB 6
LAN 1
LAN 2
PCPL16
PCSK19
PCSK24
FW 2
Remote Barcode Reader
USB 12
