4 MACHINE OVERVIEW 4.1 MODULE OVERVIEWS TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 33 4.1.3 Machine Control Module The machine control system is the central hub controlling machine motion. This consists of: ● Machine Cont…
4 MACHINE OVERVIEW
4.1 MODULE OVERVIEWS
32 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

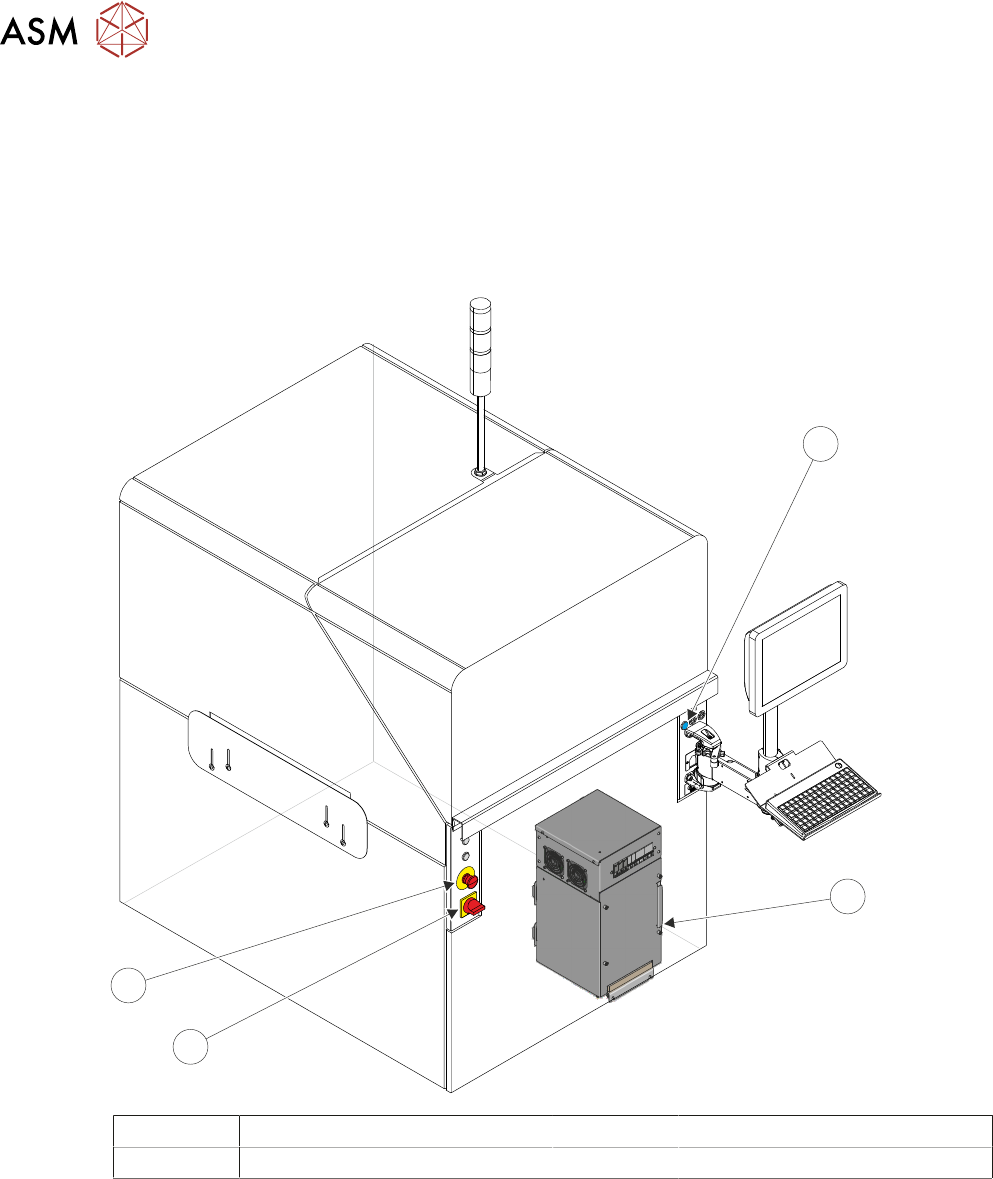

4.1.2 Power Supply Module
The power supply module fulfils the following functions:
●
Transform and rectify the mains voltage supply to the voltages required by the electrical sys-
tems throughout the machine.
●
Electrical safety - achieved by the use of emergency stop safety circuits (E Stop button and
cover safety switches). When an E Stop is activated, power is removed from selected areas of
the machine.
4
3
2
1
1 System Button 3 Mains Isolator Switch
2 Power Supply Enclosure 4 E Stop Button
4 MACHINE OVERVIEW
4.1 MODULE OVERVIEWS
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 33

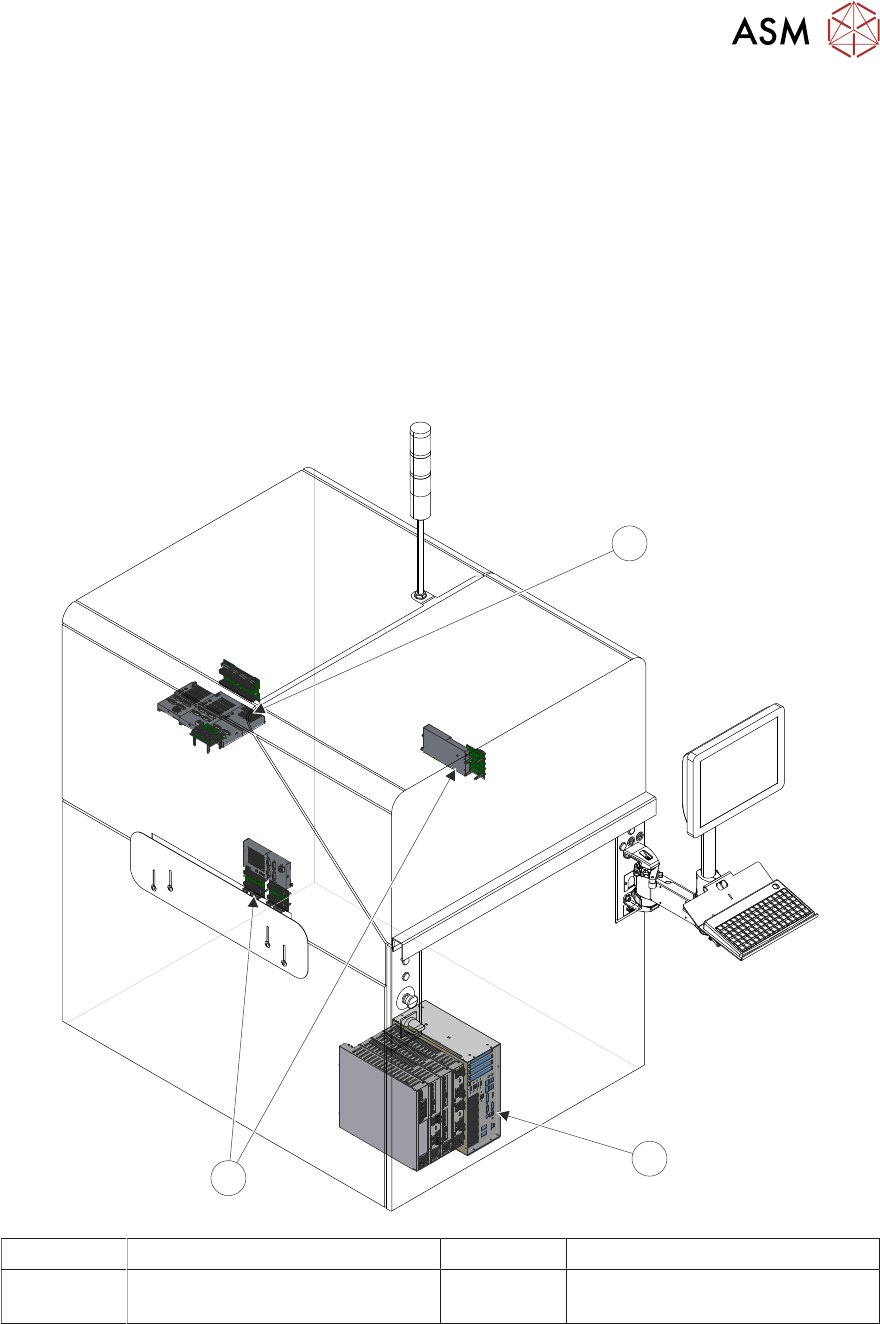

4.1.3 Machine Control Module
The machine control system is the central hub controlling machine motion. This consists of:
●
Machine Controller (PC)
●
Extended Power Module (EPM)
●
Controller Power Module (CPM)
●
Encoder Serial Input or Output (ESIO) Modules
Machine control is an interface between the software and:
●
Motors
●
Sensors
●
Switches and Solenoids
3
2
1
1 ESIOs (Upper Frame) 3 ESIOs (Lower Frame)
2 Control System
(PC, CPM and EPMs)
4 MACHINE OVERVIEW
4.1 MODULE OVERVIEWS
34 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
4.1.4 Print Carriage Module
The print carriage is the vehicle that transports the following:
●
Squeegee Module
●
Squeegee Drip Tray
●
Stencil Load Mechanism
●
Paste Roll Height Laser
●
Coplanarity Lasers
●
Temperature and Humidity Sensors
6
5
4
3
2
1
1 Squeegee Mechanism 4 Squeegee Drip Tray
2 Coplanarity Laser (in 2 positions) 5 Stencil Load Paddle
3 Paste Roll Height Laser 6 Temperature and Humidity Board
4.1.4.1 Squeegee Module
The function of the squeegee module is to apply the print material through the stencil image onto
the board in a controlled manner. Squeegee downward pressure is monitored during the print
stroke to optimize the print quality.
4.1.4.2 Stencil Load Mechanism
The stencil load mechanism automatically loads the stencil to the correct position in the chase.
