9 PASTE DISPENSER SYSTEM 9.4 REPLACEMENT PROCEDURES TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 153 23. Using an 4mm Allen key remove the two securing screws (2) to release the cartridge paste regulator assembly (1). 3 2 1…
9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
152 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
20. Lift (3) the cartridge dispenser assembly (1) off of the retaining dowels (2) on the mounting
then remove (4) from the machine.
4
2
1
3
2
1
21. Trace the paste low sensor cable (2) from the rear of the sensor (1) to the connector (3) on
the paste dispenser cover.
3
2
1
22. Disconnect the cartridge paste low sensor's electrical connector (3).
9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 153
23. Using an 4mm Allen key remove the two securing screws (2) to release the cartridge paste
regulator assembly (1).
3
2
1
24. Lift the cartridge paste regulator assembly up and remove the retaining clip (3) from the aper-
ture in the machine side plate.
25. Carefully store the cartridge dispenser and cartridge paste regulator assembly to prevent
damage.
26. Fit the jar paste regulator assembly (1) by locating its retaining clip (3) in the aperture in the
side plate.
3
2
1
9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
154 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

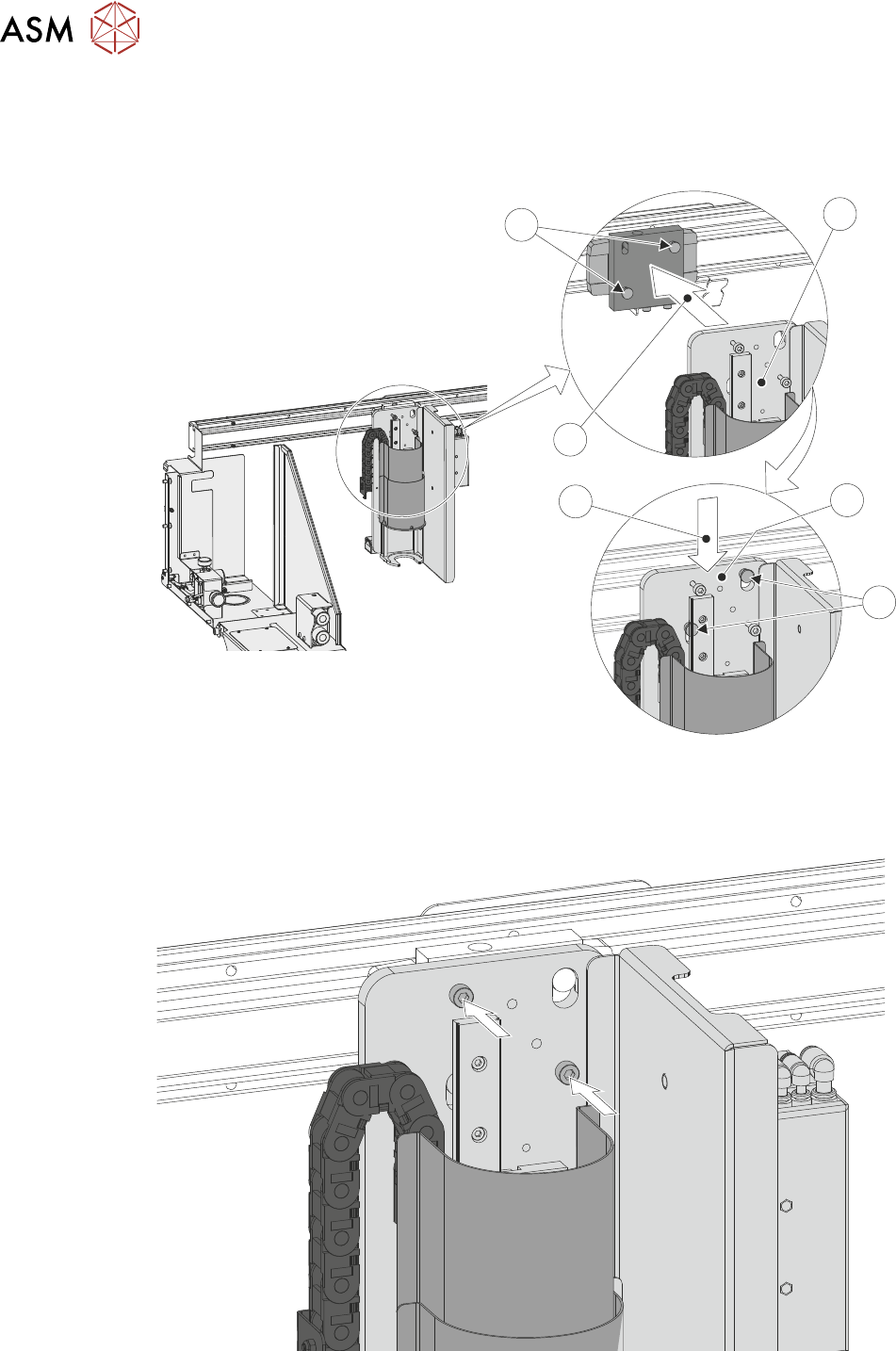

27. Using an 4mm Allen key secure the jar paste regulator assembly in place with two M5 socket
cap-head screws (2).
28. Fit the jar dispenser assembly by locating (4) the jar dispenser assembly (1) on the retaining
dowels (2) and lowering the assembly down (3).
4
2
1
3
2
1
29. Using an 4mm Allen key secure the assembly in place by tightening the two captive M5
socket cap-head screws.
