6 MACHINE CONTROL
6.2 MACHINE CONTROLLER
78 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
6.2.5 PCI Express Cards

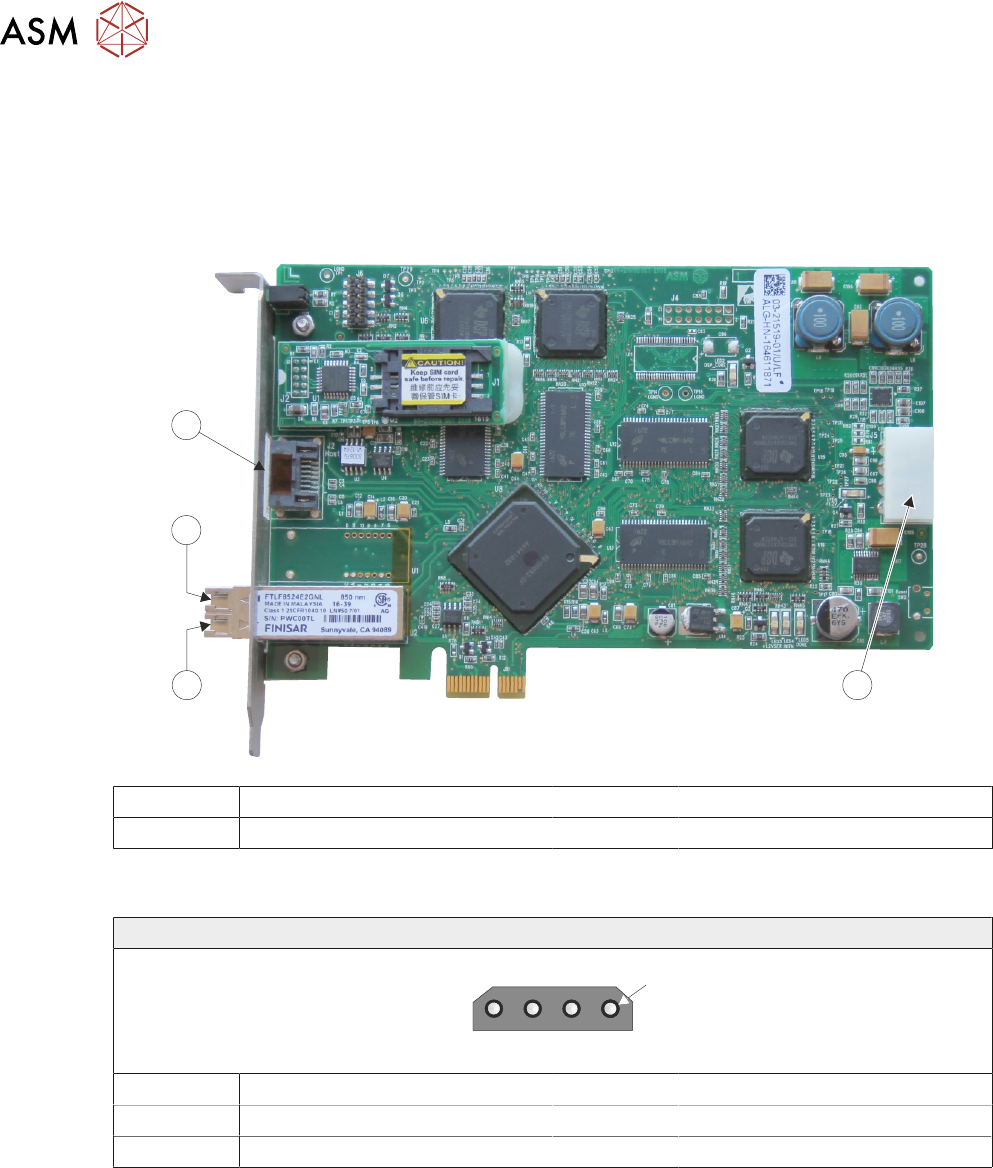

6.2.5.1 NuMotion Card
The machine uses a NuMotion control system to perform all the machine functions such as driving
motors and monitoring feedback from sensors and readers. The NuMotion card interfaces between
the software and the NuMotion system.
3
4
2 1
1 Power Supply Connector 3 Fibre Optic Input (Upline)
2 Fibre Optic Output (Downline) 4 JTAG Connector (Not Used)
The power supply connector on the NuMotion card connects to the machine controller’s internal
power supply providing 12V and 5V dc.
4 Way PC Peripheral Plug
1
Pin No Signal Pin No Signal
1 12V (Yellow) 3 Ground (Black)
2 Ground (Black) 4 5V (Red)
6 MACHINE CONTROL
6.2 MACHINE CONTROLLER
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 79

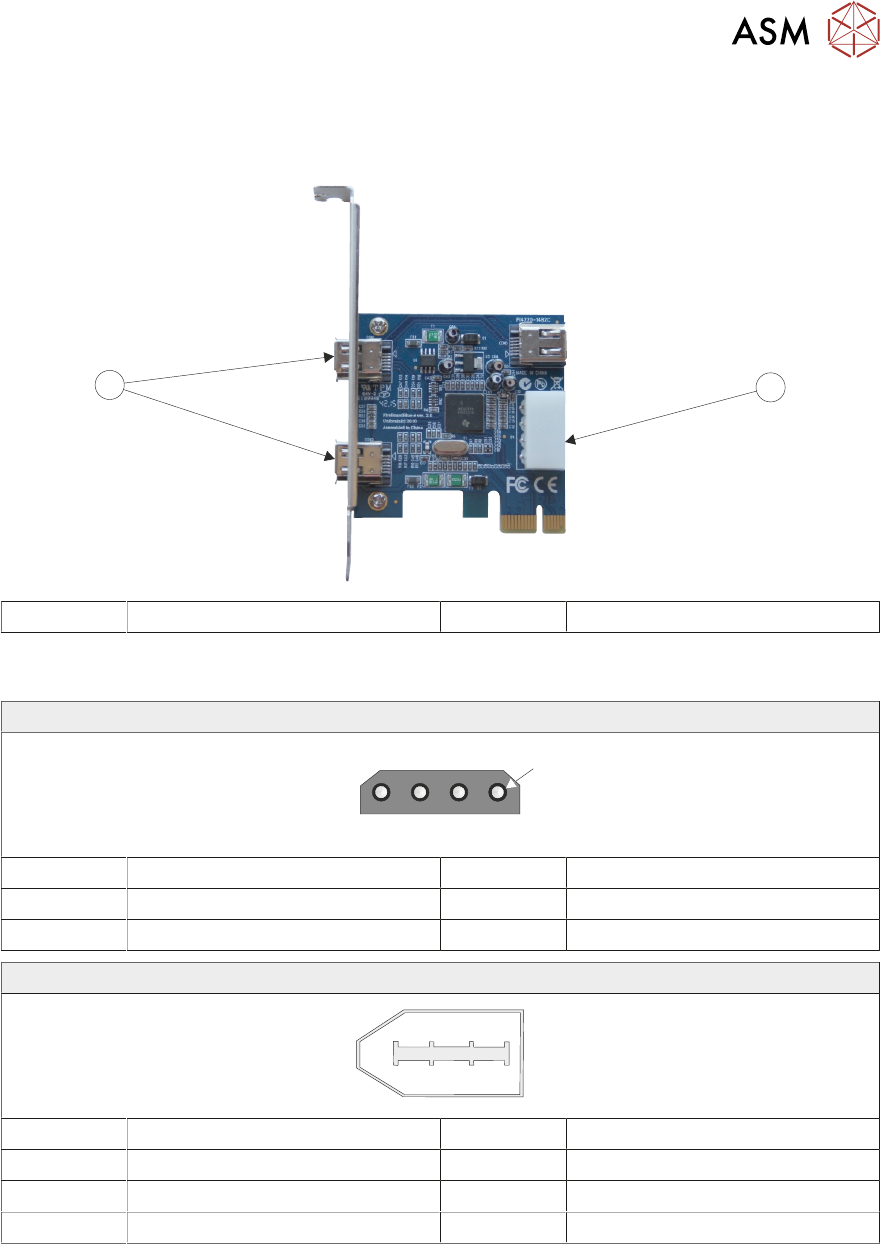

6.2.5.2 FireWire Card
The firewire card is a Unibrain Fireboard Blue PCI Express card with 2 firewire connectors for the
vision system.
2
1
1 Power Supply Connector 2 Firewire Connectors
The power supply connector on the firewire card connects to the machine controller’s internal
power supply providing 12V and 5V dc.
4 Way PC Peripheral Plug
1
Pin No Signal Pin No Signal
1 12V (Yellow) 3 Ground (Black)
2 Ground (Black) 4 5V (Red)
Firewire
1
5
2
6
3
4
Pin No Signal Pin No Signal
1 Power 4 Twisted Pair B+
2 Ground 5 Twisted Pair A+
3 Twisted Pair B- 6 Twisted Pair A+
6 MACHINE CONTROL
6.3 CONTROLLER POWER MODULE (CPM)
80 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

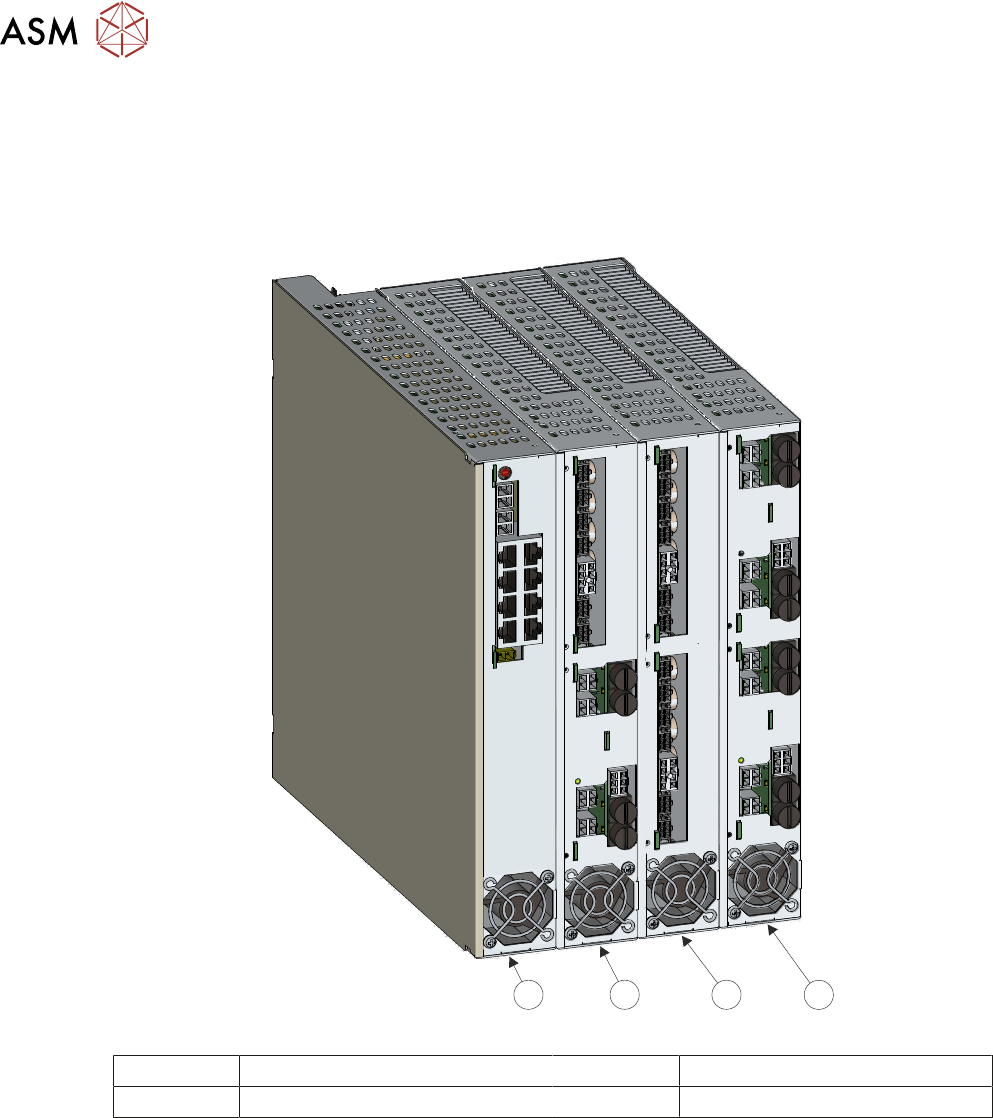

6.3 CONTROLLER POWER MODULE (CPM)
The CPM connects to the NuMotion control card in the machine controller using 2 fibre optic links.
The information coming from the machine controller is translated and the control signal directed to
either; one of the EPM’s or one of the ESIO’s. Feedback from sensors and positional readers are
fed back to the NuMotion control card via the fibre optic link.
4
3
2
1
1 Controller Power Module (CPM) 3 Extended Power Module (EPM) 2
2 Extended Power Module (EPM) 1 4 Extended Power Module (EPM) 3
NOTE
EPM 1 is only fitted if auto coplanarity or TCM option is fitted.
