6 MACHINE CONTROL 6.4 EXTENDED POWER MODULE (EPM) TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 85 EPM 2 Upper Connector Description J1-1 LH Auxiliary Conveyor Belt Motors J1-2 RH Auxiliary Conveyor Belt Motors J1-3 Centre S…
6 MACHINE CONTROL
6.4 EXTENDED POWER MODULE (EPM)
84 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

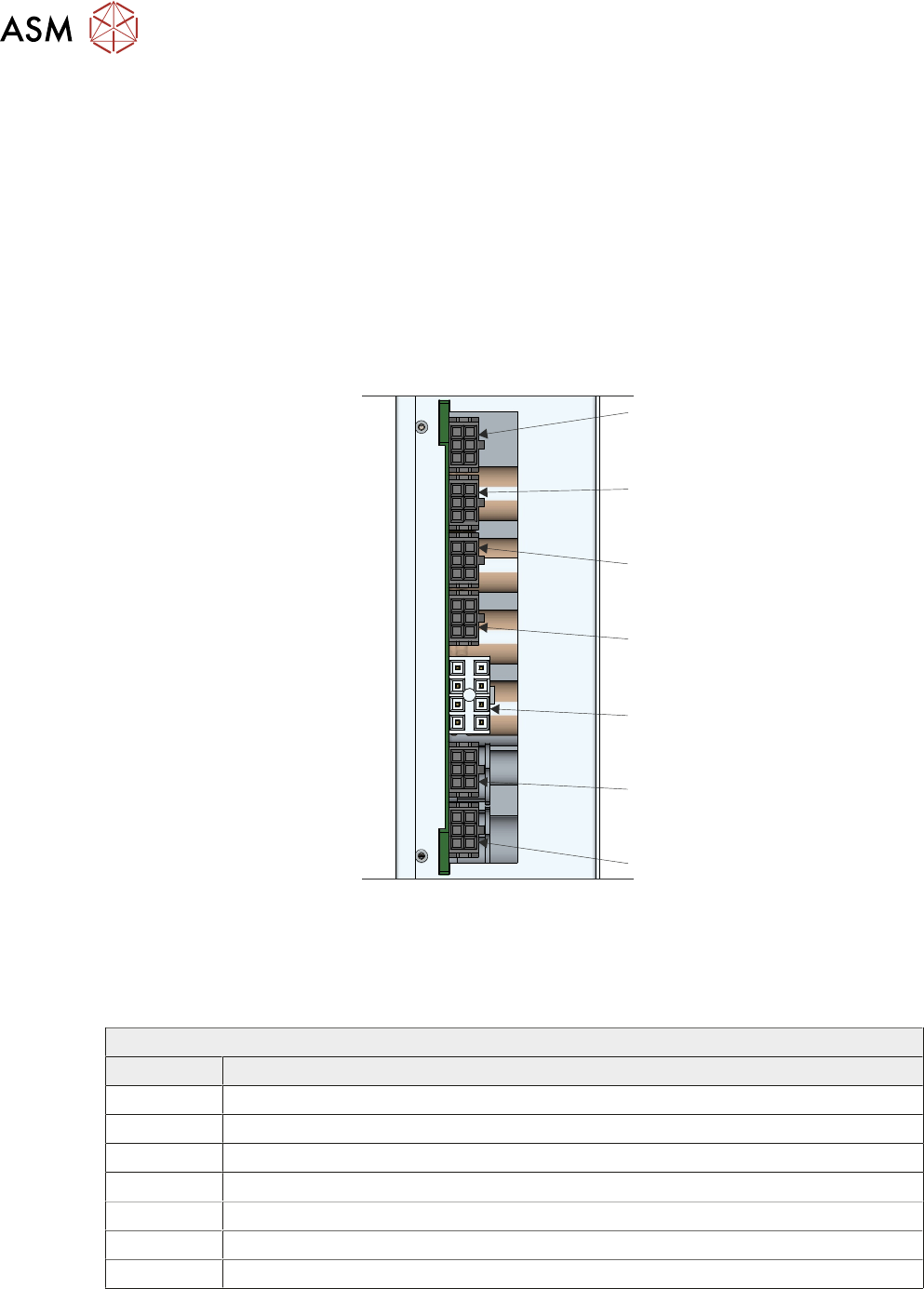

6.4.1 Stepper Drive Card
Stepper drive cards are used to drive the following stepper motors:
●
Transport Conveyors
●
Alignment Actuators
●
Coplanarity
●
Solvent Dispense
●
Paste Dispenser
●
Squeegees
●
Cleaner Fabric
6.4.1.1 Connectors
J*-1
J*-2
J*-3
J*-4
J*-5
J*-6
J*-7
Stepper Drive Card Connectors
NOTE
J* is either J1 if the drive card is in the upper position (top) or J2 if in the lower position (bottom) of
the EPM.
EPM 1 Upper
Connector Description
J1-1 Spare
J1-2 Spare
J1-3 Spare
J1-4 Spare
J1-5 Power Input
J1-6 Coplanarity Motor Left (Option)
J1-7 Coplanarity Motor Right (Option)
6 MACHINE CONTROL
6.4 EXTENDED POWER MODULE (EPM)
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 85

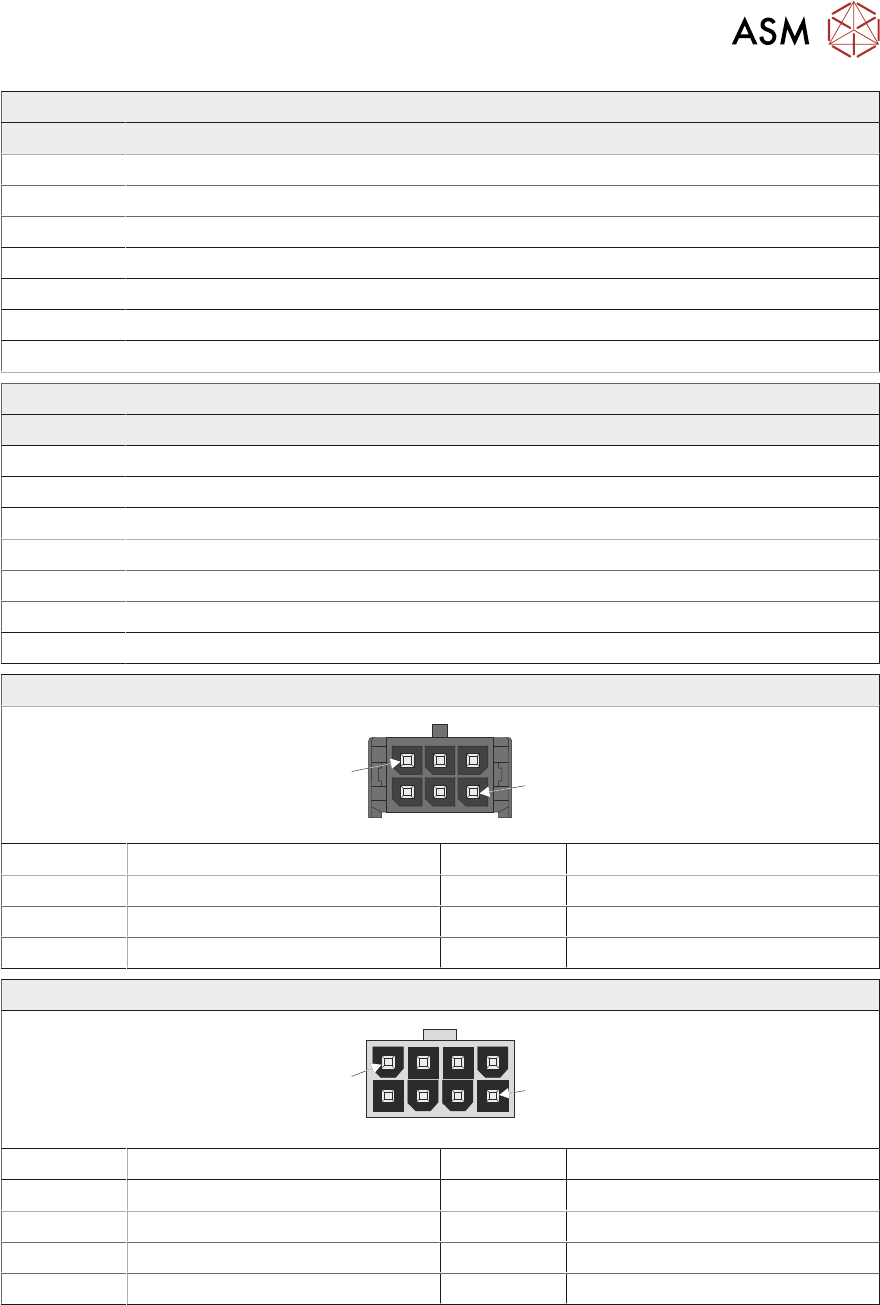

EPM 2 Upper
Connector Description
J1-1 LH Auxiliary Conveyor Belt Motors
J1-2 RH Auxiliary Conveyor Belt Motors
J1-3 Centre Section Conveyor Belt Motors
J1-4 Front Squeegee Motor
J1-5 Power Input
J1-6 Alignment Actuator X
J1-7 Alignment Actuator Y Left
EPM 2 Lower
Connector Description
J1-1 Conveyor Width Motor (OTC Conveyors)
J1-2 Paste Dispenser Drive
J1-3 Solvent Dispense Arm Drive Motor
J1-4 Rear Squeegee Motor
J1-5 Power Input
J1-6 Fabric Roll Drive
J1-7 Alignment Actuator Y Right
J*-1, J*-2, J*-3, J*-4, J*-6 and J*-7
1
6
Pin No Signal Pin No Signal
1 Not Used 4 Not Used
2 B+ 5 B-
3 A+ 6 A-
J*-5
1
8
Pin No Signal Pin No Signal
1 48V SW 5 48V SW
2 Not Used 6 Not Used
3 0V 7 24V US
4 0V 8 N/C
6 MACHINE CONTROL
6.4 EXTENDED POWER MODULE (EPM)
86 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

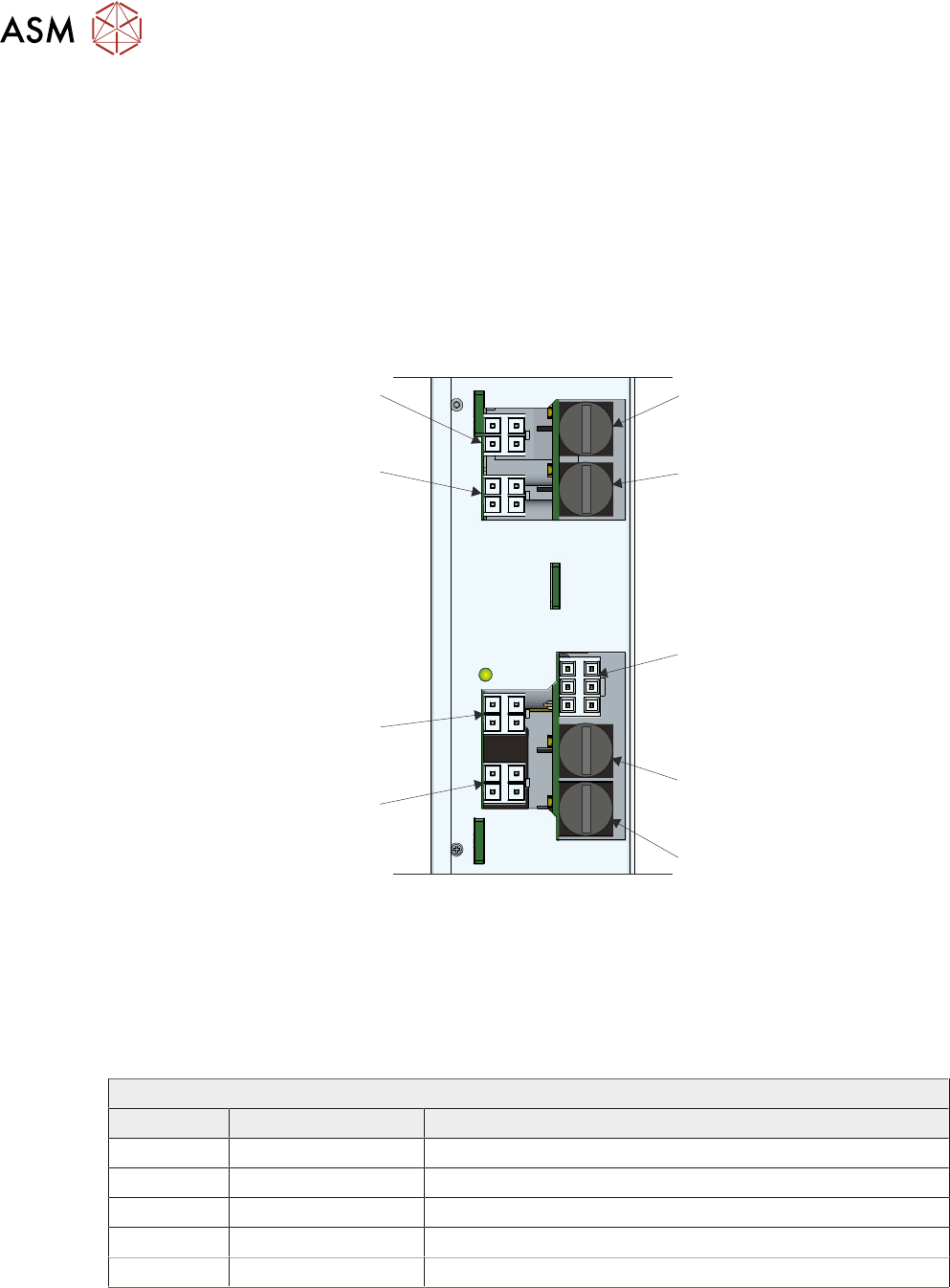

6.4.2 Servo Drive Card
Servo drive cards are used to drive the following servo motors:
●
Camera Y and X Drive
●
Tooling Table Lift
●
Conveyor Lift
●
Print Carriage Drive
●
Conveyor Width (APC Conveyors)
●
Under Stencil Cleaner
6.4.2.1 Connectors
J*-1
J*-2
J*-3
J*-4
J*-5
F*-3
F*-1
F*-4
F*-2
Servo Drive Card Connectors
NOTE
J* is either J1 if the drive card is in the upper position (top) or J2 if in the lower position (bottom) of
the EPM.
F* is either F1 if the drive card is in the upper position (top) or F2 if in the lower position (bottom) of
the EPM.
EPM 3 Upper
Connector Fuse Description
J1-1 F1-1 (2.5A) Tooling Table Lift
J1-2 F1-2 (2.5A) Conveyor Lift
J1-3 F1-3 (2A) Print Carriage Drive
J1-4 F1-4 (2A) Camera X Linear Drive
J1-5 Power Input
