6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
98 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

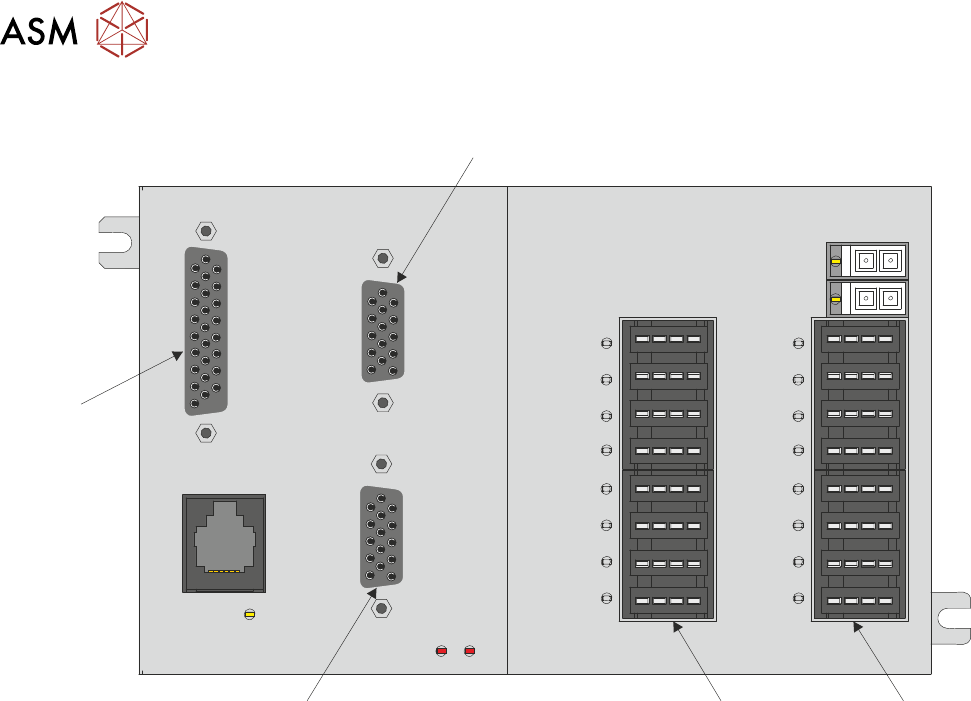

6.5.4 ESIO Connection Details
6.5.4.1 ESIO-1 (ESIO 12)
IO1
IO2
IO3
IO4
IO5
IO6
IO7
IO8
IO9
IO10
IO11
IO12
IO13
IO14
IO15
IO16
IO17
IO18
IO19
IO20
IO21
IO22
IO23
IO24
ENC4 ENC2
ENC3 ENC1
+24V3 +24V2
+24V1
ENCFAULT
4 3 2 1 +5V
IO1 - IO8IO9 - IO16IO17 - IO24ENC2ENC4
ENC3 ENC1
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 99
Connector Description I/O
IO1 Camera Trigger Output
IO2 Downline Failed Board Available Output
IO2 Upline Board Available Input
IO3 Downline Board Available Output
IO3 Upline Board Pass Input
IO4 Upline Ready To Receive Output
IO4 Downline Ready to Receive Input
IO5 Spare Input/Output
IO6 Spare Input/Output
IO7 Spare Input/Output
IO8 Spare Input/Output
IO9 ESIO-1: Breakout A I/O A Input/Output
IO10 ESIO-1: Breakout A I/O B Input/Output
IO11 ESIO-1: Breakout A I/O C Input/Output
IO12 ESIO-1: Breakout A I/O D Input/Output
IO13 ESIO-1: Breakout A I/O E Input/Output
IO14 ESIO-1: Breakout A I/O F Input/Output
IO15 ESIO-1: Breakout A I/O G Input/Output
IO16 ESIO-1: Breakout A I/O H Input/Output
IO17 ESIO-1: Breakout B I/O A Input/Output
IO18 ESIO-1: Breakout B I/O B Input/Output
IO19 ESIO-1: Breakout B I/O C Input/Output
IO20 ESIO-1: Breakout B I/O D Input/Output
IO21 ESIO-1: Breakout B I/O E Input/Output
IO22 ESIO-1: Breakout B I/O F Input/Output
IO23 ESIO-1: Breakout B I/O G Input/Output
IO24 ESIO-1: Breakout B I/O H Input/Output
ENC1 Tooling Table Lift Encoder
ENC2 Conveyor Lift Encoder
ENC3 Conveyor Width Left Encoder and Home (APC Con-
veyors)
ENC4 Top Plate Encoder Front (APC Conveyors)
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
100 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
6.5.4.2 ESIO-2 (ESIO 15)
IO1
IO2
IO3
IO4
IO5
IO6
IO7
IO8
ENC2
ENC1
24VIO
ENCFAULT
21
GLink
24VL
IO9
IO10
IO11
IO12
IO13
IO14
IO15
IO16
IO1 - IO8IO9 - IO16
ENC2
ENC1
ADC/DAC
