6 MACHINE CONTROL 6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES 112 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 111
6.5.5.3 ESIO-3: Breakout A
Connector I/P (Input) O/P (Output)
Channel A Stencil Present Cleaner Carriage Brake
Channel B Spare Stencil Present Enable
Channel C Spare Plenum Lift
Channel D SF_TH Conditioning Board Status 1 SF_TH Conditioning Board
Setting 1
Channel E SF_TH Conditioning Board Status 2 Spare
Channel F Spare Stencil Clamp Vacuum Retract
Channel G Spare Squeegee Mechanism Clamp
Channel H Spare Spare
6.5.5.4 ESIO-3: Breakout B
Connector I/P (Input) O/P (Output)
Channel A Alignment X Home Stencil Clamp
Channel B Alignment YL Home Chase Clamp
Channel C Alignment YR Home Light Tower Red
Channel D Spare Light Tower Amber
Channel E Spare Light Tower Green
Channel F Spare Light Tower Buzzer
Channel G Spare Reserved for Lighting
Channel H Spare Paste Barcode Reader
(Good Read)
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
112 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

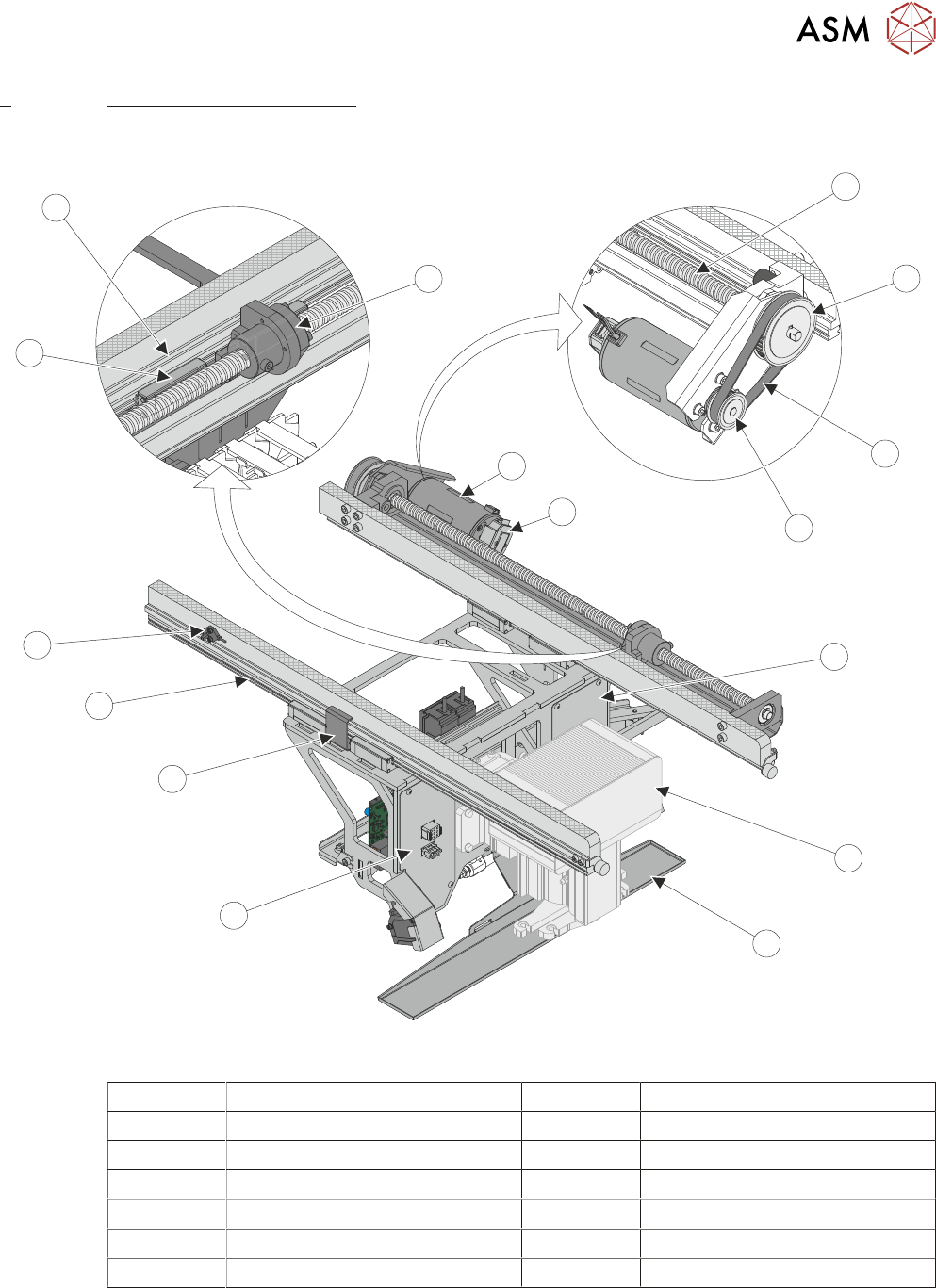

7 PRINT CARRIAGE MODULE
7.1 OVERVIEW
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 113
7 PRINT CARRIAGE MODULE
7.1 OVERVIEW
7
1
2
3
7
4
6
5
9
8
11
12
11
14
10
13
Belt and Pulleys Cover removed for clarity
1 Print Carriage Ball Screw 8 Squeegee Mechanism
2 Ball Screw Drive Pulley 9 Squeegee Drip Tray
3 Print Carriage Drive Belt 10 Home Sensor Vane
4 Motor Pulley 11 Linear Guide
5 Print Carriage Motor 12 Home Sensor
6 Rotary Encoder 13 Ball Screw Bearing
7 Electrical Connector Plate 14 Linear Bearing (4 Positions)
