6 MACHINE CONTROL

6.1 OVERVIEW

72 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

All machine functions are initiated by the DEK software installed on the machine controller (PC). It

incorporates a NuMotion control card which handles all requests from the software for the following

actions:

●

Monitoring of Safety Circuits (eg E Stop and Cover Safety Switches)

●

Motor and Actuator Drive Control

●

Motor and Actuator Positional Information (Feedback from Sensors and Encoders)

●

Mechanism Positional Information (Feedback from Sensors)

●

Activation of Electronic and Pneumatic Solenoids

●

Monitor of Analogue Sensors

●

Analogue Control Outputs

The NuMotion control card transmits and receives information via a fibre optic link to the Controller

Power Module (CPM).

The CPM uses two ribbon cables to connect to each of the three Extended Power Modules

(EPM’s). The CPM also uses RJ11 serial cables to connect to Encoder Serial Input or Output

(ESIO) modules which are located close to the mechanism that the ESIO is associated with.

The EPM’s consist of a combination of either two stepper drive cards, two servo drive cards or one

of each. The outputs of the drive cards connect directly to stepper or servo motors.

The ESIO modules provide digital inputs, digital outputs, analogue inputs and analogue outputs.

Each connector on an ESIO can provide an input or an output. An ESIO module can be connected

to an ESIO Breakout module which splits each I/O port to an independent input and output, effect-

ively doubling the capacity of the ESIO module.

6.1.1 Schematic

Machine

Controller (PC)

CPM

EPM 1

ESIO-1

ESIO-1:

Breakout A

ESIO-3:

Breakout A

ESIO-1:

Breakout B

ESIO-3:

Breakout B

ESIO-2

ADC/DAC

15-2 DIST

ADC/DAC

15-5 DIST

ADC/DAC

15-6 DIST

ESIO-3 ESIO-4 ESIO-5 ESIO-6

EPM 2

EPM 3

NuMotion

Control Card

Fibre

Optic

Links

Stepper Stepper ServoServo Stepper Servo

Stepper and Servo Motors

Ribbon Cables

RJ11 Serial Cables

6 MACHINE CONTROL

6.2 MACHINE CONTROLLER

TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 73

6.2 MACHINE CONTROLLER

The machine controller is a computer using the Windows 10 IoT Enterprise operating system to run

the DEK software which controls all the printer functions.

6.2.1 Motherboard

The motherboard houses the Central Processing Unit (CPU) which is an Intel® Celeron® Dual

Core processor G3900 2.8GHz and provides the master control of all machine functions.

The main features of the motherboard are:

External

●

SVGA, DVI-D and DisplayPort Video Outputs

●

12 USB Ports (4 x Type 2 and 8 x Type 3.0)

●

2 Ethernet 10/100Base-T output via an RJ45 connectors

●

RS232 Interface (COM1) Connector

●

6 Pin Mini Keyboard Connector

●

Line Out Connector

●

Microphone In Connector

Internal (Not Shown)

●

6 SATA HDD Controllers

●

4 PCI Express Bus Interface

●

4 DDR4 DIMM Sockets (RAM)

●

Lithium battery backup

6.2.2 CMOS Settings

The CMOS settings are password protected to prevent any settings being changed.

It is highly unlikely that the CMOS settings could be responsible for machine controller issues how-

ever, if the settings are strongly suspected, contact the local CSG office.

NOTE

If a USB drive is plugged in during power-up, the DEK software does not start as the printer tries to

boot from the USB drive. All USB drives should be removed prior to the machine being shut down.

6 MACHINE CONTROL

6.2 MACHINE CONTROLLER

74 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

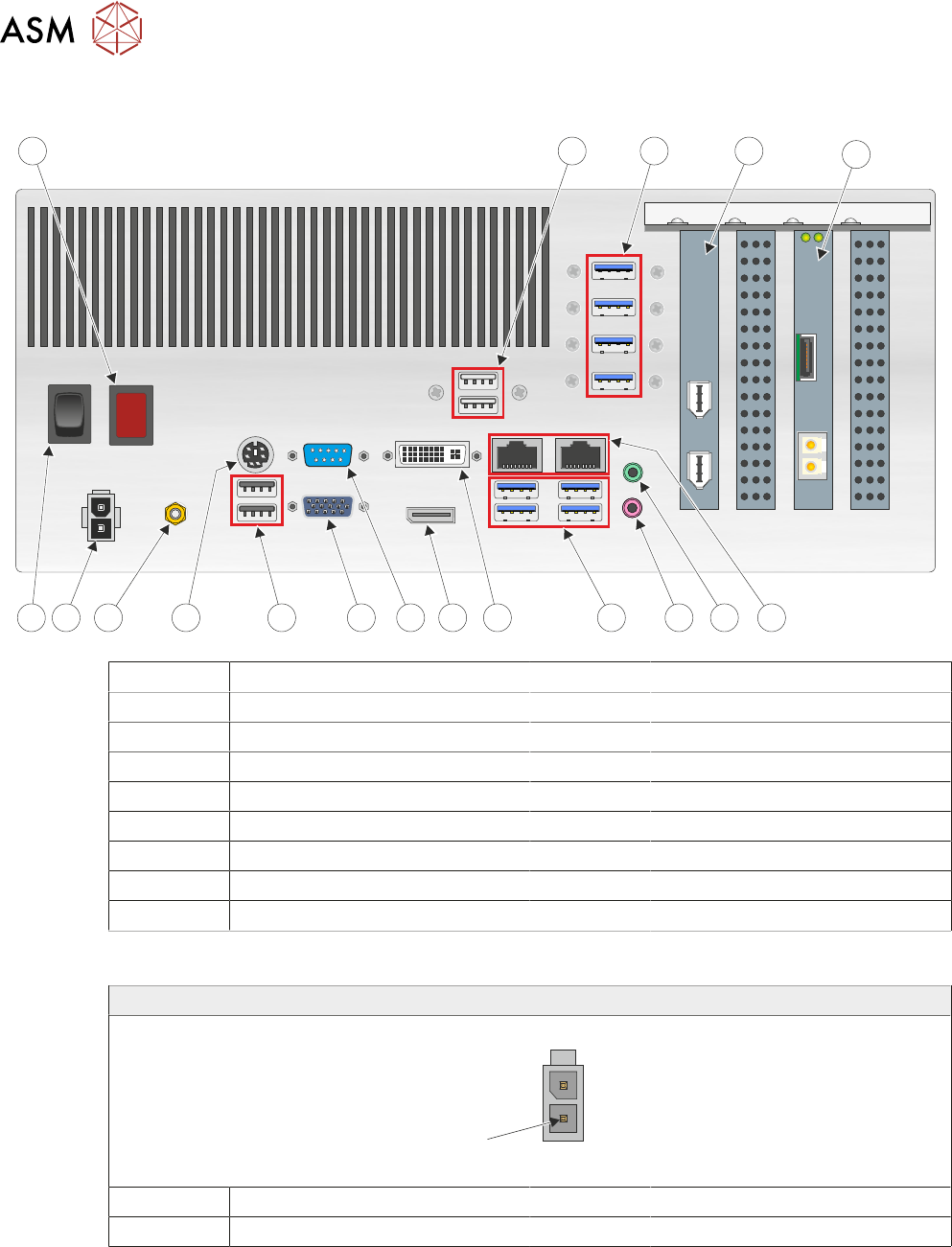

6.2.3 Connectors

1 2 3

89101112

14151617

1 USB (Type 2) 10 DisplayPort (Not Used)

2 USB (Type 3.0) 11 COM 1 Port (Not Used)

3 Firewire Card 12 SVGA Connector

4 NuMotion Card 13 USB (Type 2)

5 LAN Host Comms Connectors 14 Keyboard Connector (Not Used)

6 Line Out (Not Used) 15 Earth Stud

7 Microphone In (Not Used) 16 Power Connector (24V dc)

8 USB (Type 3.0) 17 Power Switch

9 DVI Connector (Not Used) 18 Reset Button

6.2.3.1 Power Connector

2 Way Mini Fit Molex

Pin No Signal Pin No Signal

1 24V dc 2 0V
