9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 161

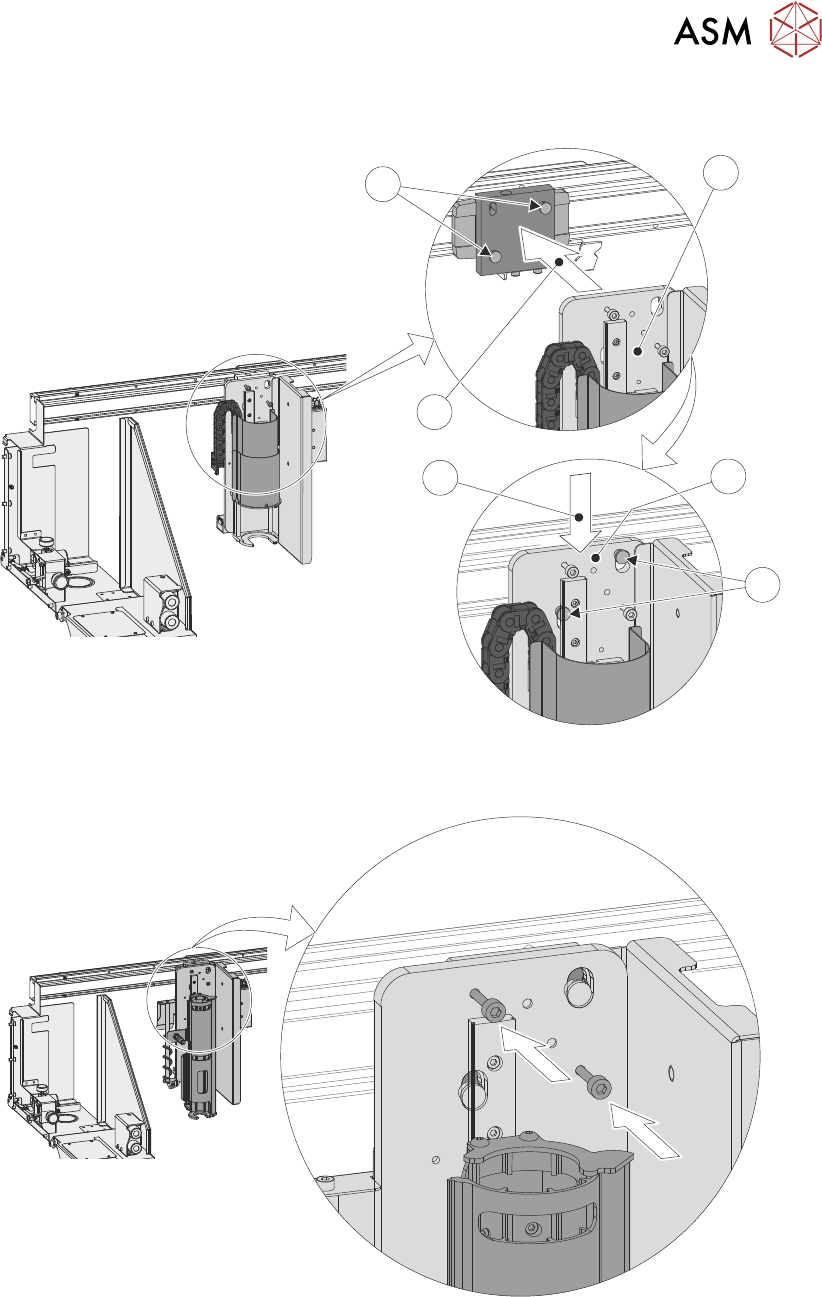

28. Fit the cartridge dispenser assembly by locating (4) the cartridge dispenser assembly (1) on
the retaining dowels (2) and pushing down (3).
4
2
1
3
2
1
29. Using a 4mm Allen key secure the assembly in place by tightening the two captive M5 socket
cap-head screws.
9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
162 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

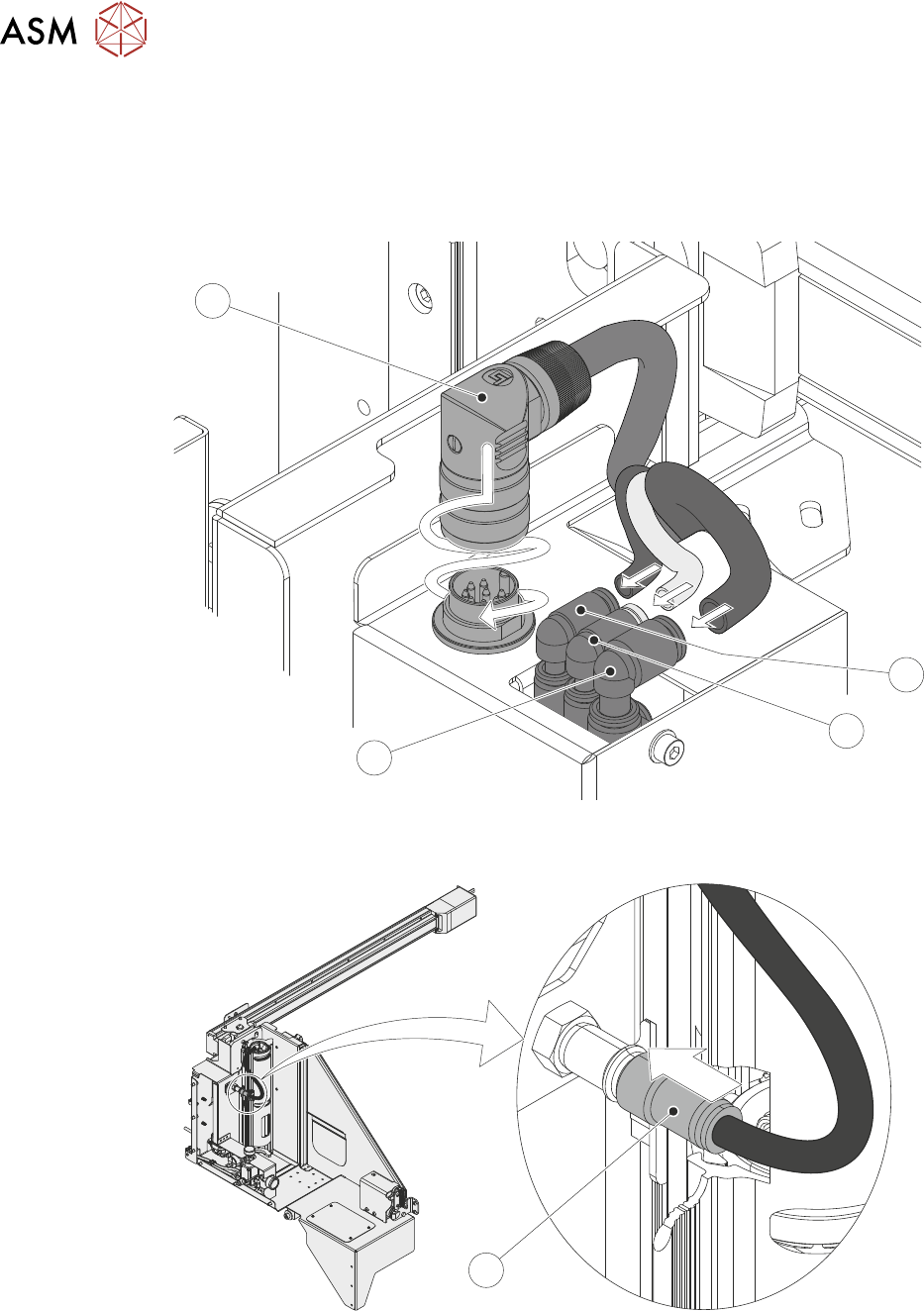

30. Connect the three pneumatic connectors (1-3) and the electrical connector (4) by locating it in
position and pushing down whilst tightening it up.
– Reconnect the down feed pneumatic tube (1) - 4mm tube labelled 1.
– Reconnect the up feed pneumatic tube (2) - 4mm tube labelled 2.
– Reconnect the paste pressure feed pneumatic tub (3) - 6mm tube.
4
3
2
1
31. Connect the paste cartridges cap pneumatic quick release connector (1) to the paste dis-
penser.
1
32. Fit the paste cartridge and cap into the paste dispenser.
33. Fit the stencil drip tray.
34. Fit the stencil.
9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 163
35. Place clean paste drip tray (1) in position beneath paste dispenser home position.
1
36. Refit upper left hand side panel.
37. Close front cover.
38. Switch the pneumatic isolator to SUP.
39. Refit front panel.
40. Switch the mains isolator to ON.
NOTE
During initialisation, the paste dispenser will return to its home position automatically.
