TRANSPORTATION
MACHINE POWER UP SEQUENCE
34.100 Technical Reference Manual Chapter Issue 7 Oct 06

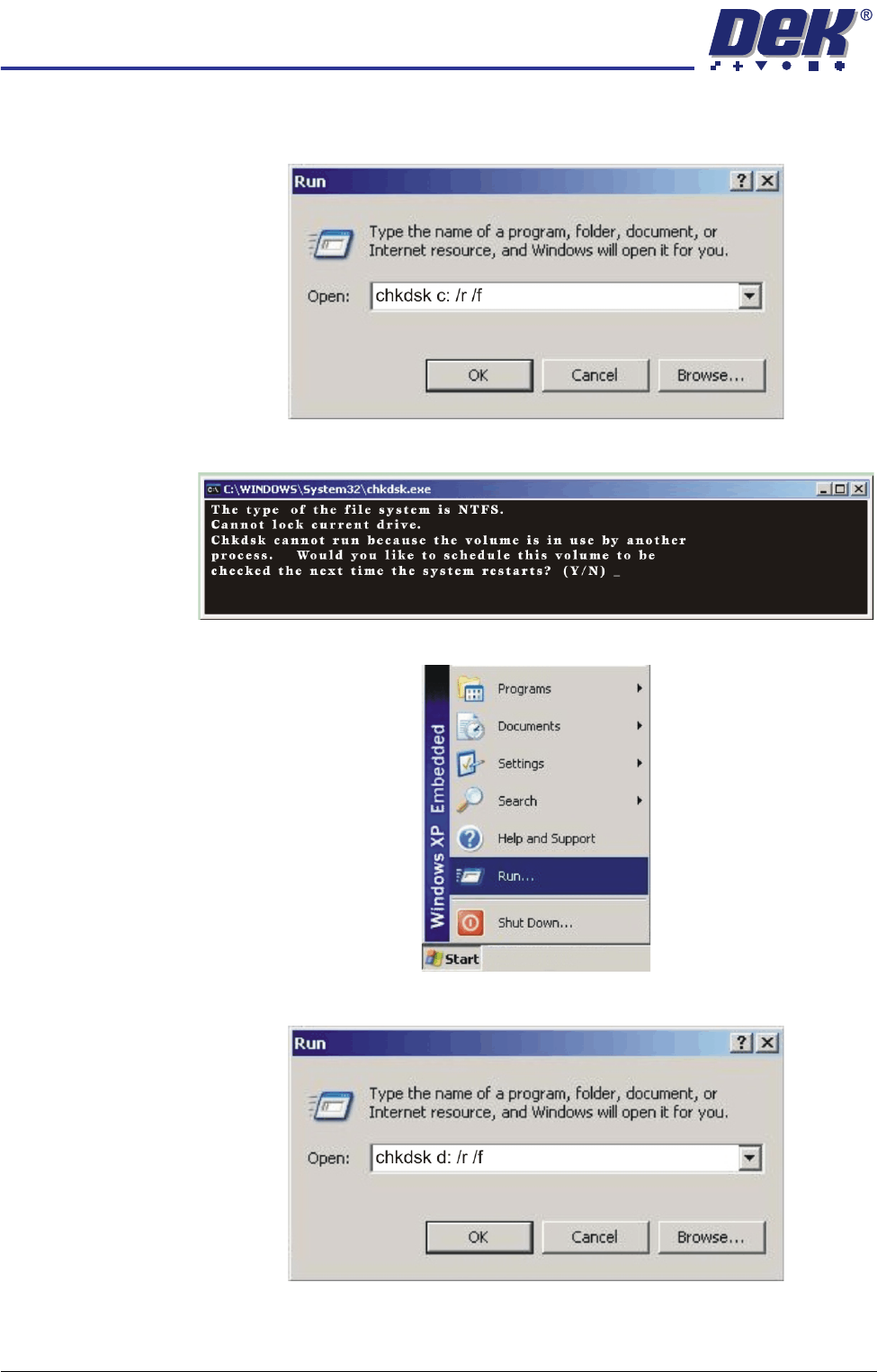

i. Using the keyboard/mouse (stowed inside the lower front cover of the
machine) click in the Open box, type chkdsk c: /r /f and select OK.
j. The Chkdsk program displays the following prompt. Select Y, En te r.
Checking Hard
Disk Partition D
k. When the DOS window closes, select Start on the taskbar, select Run....
l. Click in the open box, type chkdsk d: /r /f and select OK.
TRANSPORTATION
MACHINE POWER UP SEQUENCE
Chapter Issue 7 Oct 06 Technical Reference Manual 34.101

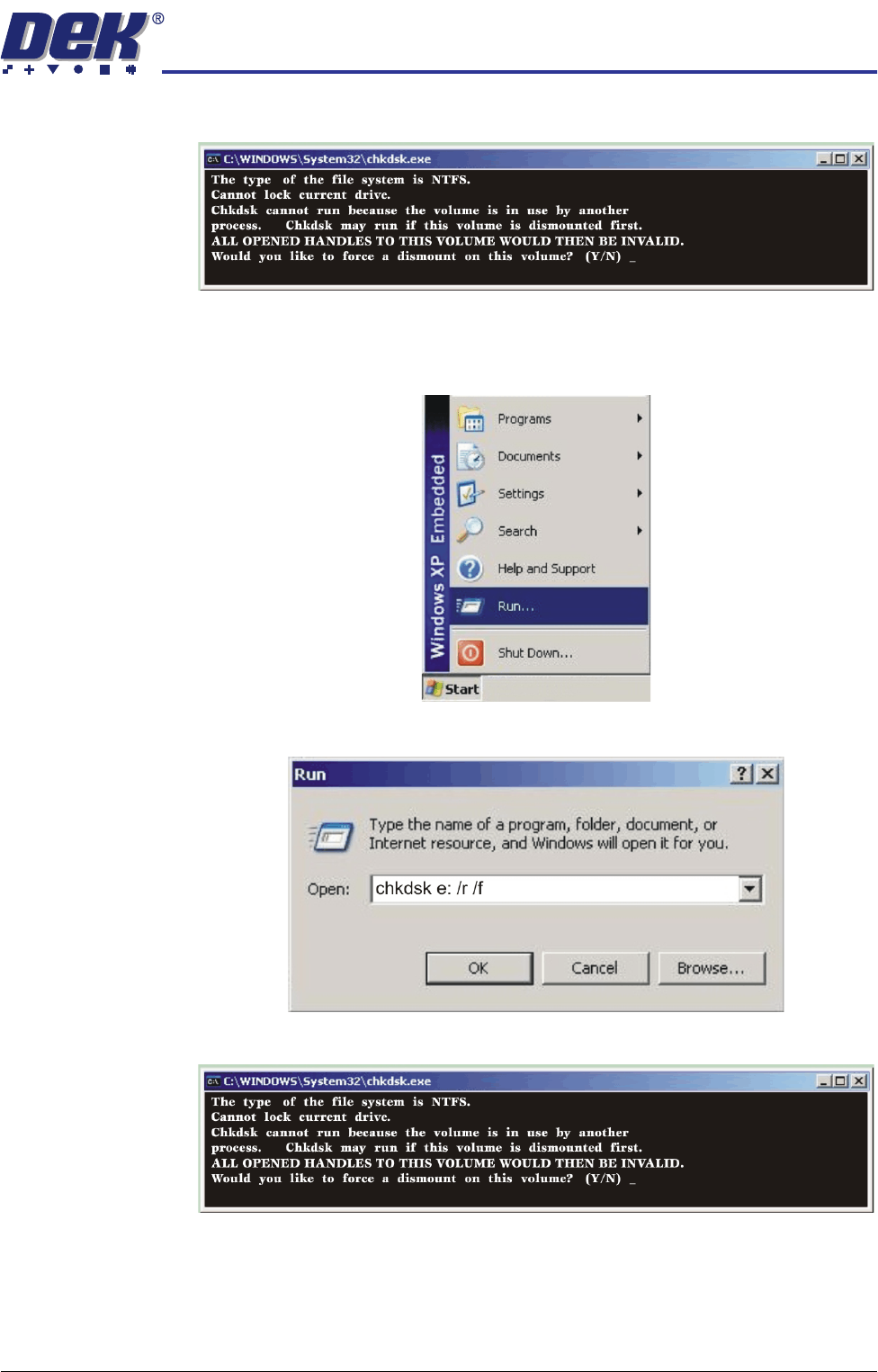

m. The Chkdsk program displays the following prompt. Select Y, Ente r.
n. The Chkdsk program executes and checks the D drive for errors.
Checking Hard
Disk Partition E
o. When the DOS window closes, select Start on the taskbar, select Run....
p. Click in the open box, type chkdsk e: /r /f and select OK.
q. The Chkdsk program displays the following prompt. Select Y, Ent e r.
r. The Chkdsk program executes and checks the E drive for errors.
TRANSPORTATION
MACHINE POWER UP SEQUENCE
34.102 Technical Reference Manual Chapter Issue 7 Oct 06

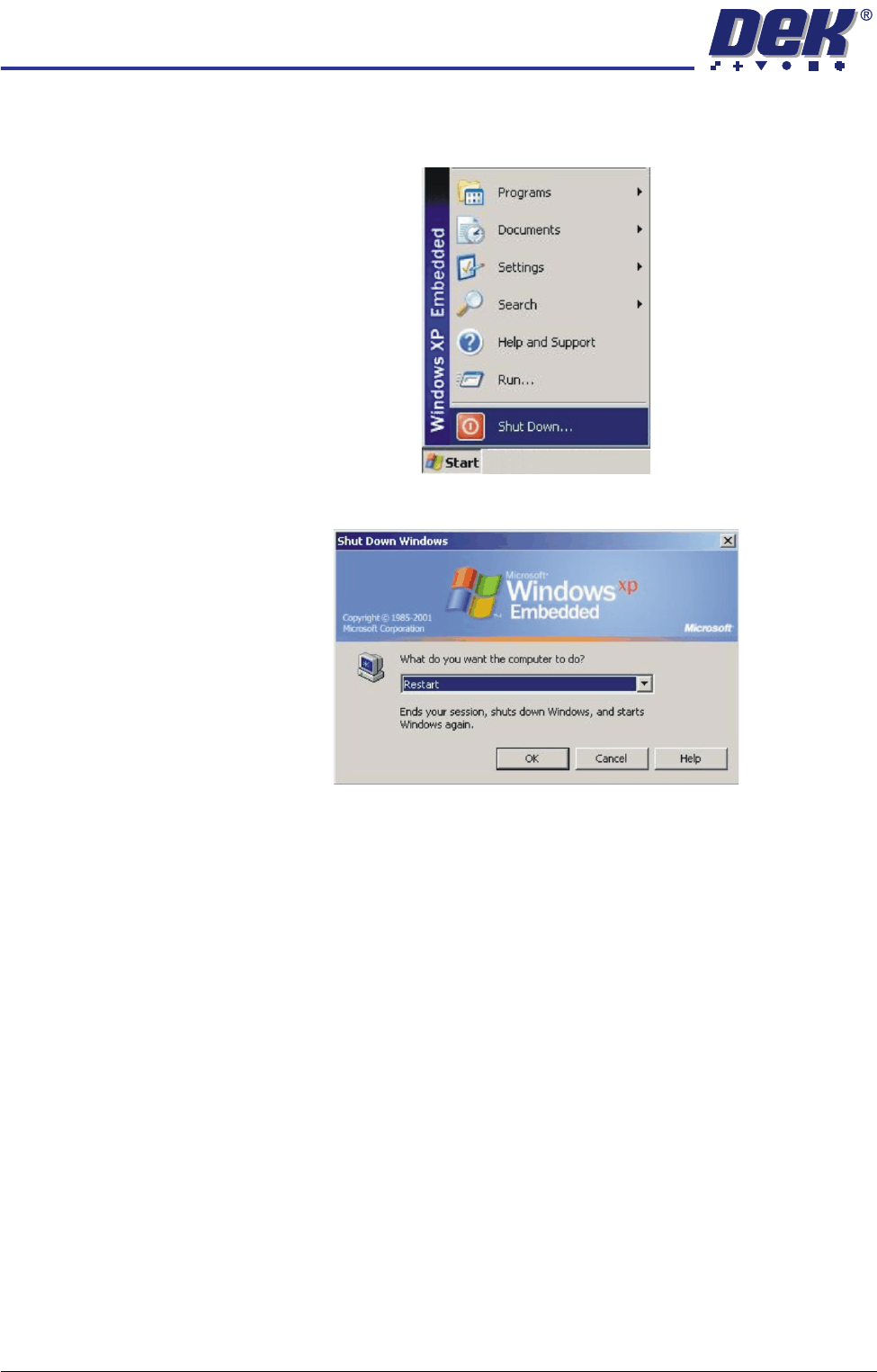

s. When the DOS window closes, select Start on the taskbar, select Shut
Down....
t. Select Restart from the drop down menu and select OK.
The system closes down and restarts. The Chkdsk program executes
and checks the C drive for errors. On completion of Chkdsk, Windows
starts in the standard way.
5. During the machine initialisation, press the System button when prompted.
6. To close the DEK program and display the Windows desktop, select Show
Classic to display the classic menu.
7. Select Maint..
8. Select Diagnost.
9. Ensure that System is highlighted and select Select Module.
10. Select the Previous button once to highlight Terminate Control Program.
11. Select Run Diagnost.
