TRANS PORTATION MAJOR RELO CATION Chapter Issue 7 Oct 06 Technical Reference Manual 34.47 Figure 34-13 Sliding Glass Cover Wi th HTC Footprint Pivot Point R 470 Max dimension from pivot point 362 1 150 T ransfer Height 9…

100%1 / 120
TRANSPORTATION
MAJOR RELOCATION
34.46 Technical Reference Manual Chapter Issue 7 Oct 06
Machine Footprints

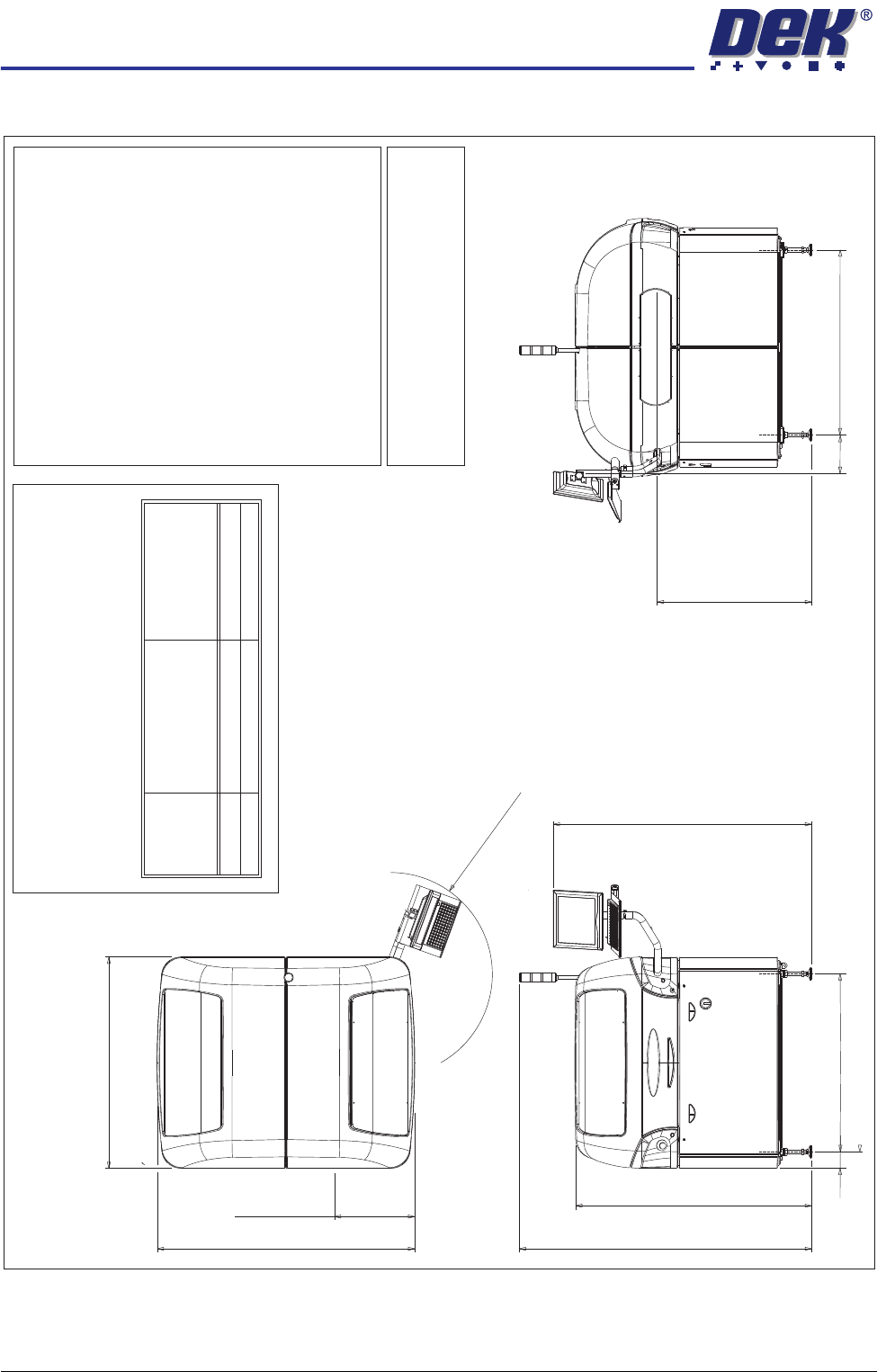

Figure 34-12 Sliding Glass Cover Footprint
R 470
Max dimension from
pivot point
Plan View
606
Front of board
1758
1334
(1352 min to 1492 max)
1472
(1665 min to 1805 max)
1785
Front View
114
1106
(1212 min to 1352 max)
1331
Side View (Right)
(840 min to
980 max)
Transfer Height 960
1150
362
Services Required
Voltage:
100V to 240V 10% Single Phase 50/60Hz±
Operating Envelope:
Temperature 10 - 35 C(50-95F)
Humidity 30 - 70% Relative Humidit
y
(non condensing)
00
Weight Boxed - 810kg, Unboxed - 660kg
Air Supply:
Air to ISO 8573.1
standard quality class 2.3.3
Pressure5-8Barat5
Litre/min
Current (with Vacuum Filtration Unit):
115V - 20 Amps
230V - 10 Amps
Current (without Vacuum Filtration Unit):
115V - 6 Amps
230V - 3 Amps
Note
All dimensions in millimetres
Board transfer height 840 - 980 mm
Screen load height 925 - 1065 mm
CAUTION
OVER CURRENT PROTECTION.
Magnetic/thermal over current protectors protect the
machines internal wiring and components from over
heating/fire during fault conditions. DEK require
additional machine suppl
y protection with the fitment of
an external circuit breaker and conforming to national/
federal regulations, .table below refers
Voltage
Value of
Circuit Breaker
(without Internal
Vac Unit)
Value of
Circuit Breaker
(with Internal
Vac Unit)
115V
230V
10 Amp
6 Amp
25 Amp
16 Amp
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.47
Figure 34-13 Sliding Glass Cover With HTC Footprint
Pivot Point
R 470
Max dimension from
pivot point
362
1150
Transfer Height 960
980 max)
(840 min to
Side View (Right)
1331
(1212 min to 1352 max)
1106
(1352 min to 1492 max)
104
Front View
1785
(1665 min to 1805 max)
1472
500
Plan View
606
68
Front of board
1758
134
Pivot
Point
1334
1582
Services Required
Voltage:
100V to 240V 10% Single Phase 50/60Hz±
Operating Envelope:
Temperature 10 - 35 C(50-95F)
Humidity 30 - 70% Relative Humidit
y
(non condensing)
00
Weight Boxed - 810kg, Unboxed - 660kg
Air Supply:
Air to ISO 8573.1
standard quality class 2.3.3
Pressure5-8Barat5
Litre/min
Current (with Vacuum Filtration Unit):
115V - 20 Amps
230V - 10 Amps
Current (without Vacuum Filtration Unit):
115V - 6 Amps
230V - 3 Amps
Note
All dimensions in millimetres
Board transfer height 840 - 980 mm
Screen load height 925 - 1065 mm
CAUTION
OVER CURRENT PROTECTION.
Magnetic/thermal over current protectors protect the
machines internal wiring and components from over
heating/fire during fault conditions. DEK require
additional machine suppl
y protection with the fitment of
an external circuit breaker and conforming to national/
federal regulations, .table below refers
Voltage
Value of
Circuit Breaker
(without Internal
Vac Unit)
Value of
Circuit Breaker
(with Internal
Vac Unit)
115V
230V
10 Amp
6 Amp
25 Amp
16 Amp
TRANSPORTATION
MAJOR RELOCATION
34.48 Technical Reference Manual Chapter Issue 7 Oct 06
Figure 34-14 Gull Wing Cover Footprint
1150
256
(840 min. to
980 max.)
Transfer Height 961
Side View (Right)
(1486 min. to 1626 max.)
1606
(1697 min. to 1837 max.)
1818
104
1106
(1346 nim. to 1486 max.)
1467
Front View
1314
1601
Front of board
499
R
max. dimension from
pivot point
632
Plan View
Services Required
Voltage:
100V to 240V 10% Single Phase 50/60Hz±
Operating Envelope:
Temperature 10 - 35 C(50-95F)
Humidity 30 - 70% Relative Humidit
y
(non condensing)
00
Weight Boxed - 810kg, Unboxed - 660kg
Air Supply:
Air to ISO 8573.1
standard quality class 2.3.3
Pressure5-8Barat5
Litre/min
Current (with Vacuum Filtration Unit):
115V - 20 Amps
230V - 10 Amps
Current (without Vacuum Filtration Unit):
115V - 6 Amps
230V - 3 Amps
Note
All dimensions in millimetres
Board transfer height 840 - 980 mm
Screen load height 925 - 1065 mm
CAUTION
OVER CURRENT PROTECTION.
Magnetic/thermal over current protectors protect the
machines internal wiring and components from over
heating/fire during fault conditions. DEK require
additional machine suppl
y protection with the fitment of
an external circuit breaker and conforming to national/
federal regulations, .table below refers
Voltage
Value of
Circuit Breaker
(without Internal
Vac Unit)
Value of
Circuit Breaker
(with Internal
Vac Unit)
115V
230V
10 Amp
6 Amp
25 Amp
16 Amp
