TRANSPORTATION
MAJOR RELOCATION
34.68 Technical Reference Manual Chapter Issue 7 Oct 06
13. Lock off all five mounting feet using the locknuts.
14. Recheck the machine is level.
15. Recheck the machine height has not been disturbed.
16. Remove the engineering level from the machine.
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.69
Machine Assembly Assemble the following machine components and assemblies:
Tricolour Beacon
(Sliding Glass Cover
Design)
1. Fit the tricolour beacon to the beacon bracket ensuring that the cable is not
trapped between the beacon and the cover frame.
2. Connect the tricolour beacon connection 14PL07 to 14SK07.
3. Cable tie the loose cable to the cover frame.
Tricolour Beacon
(Gull Wing and
Shutter Cover
Design)
1. Fit the tricolour beacon to the beacon bracket ensuring that the cable is not
trapped between the beacon and the cover frame.
2. Connect the tricolour beacon connection 14PL07 to 14SK07.
3. Cable tie the loose cable to the cover frame.
TRANSPORTATION
MAJOR RELOCATION
34.70 Technical Reference Manual Chapter Issue 7 Oct 06
Tricolour Beacon
(Metal Cover
Design)
1. Using a 3mm Allen key, remove the beacon bracket securing screws from
the machine cover.
2. Maintaining hold of the socket 14SK07 (to prevent the socket from falling
into the machine through the hole), lift the socket from its location.
3. Connect the tricolour beacon connection 14PL07 to 14SK07 and feed down
through the hole in the cover with any surplus cable.
4. Fit the beacon bracket to the machine cover using the four beacon bracket
securing screws ensuring that any cables are not trapped between the
beacon bracket and the cover.

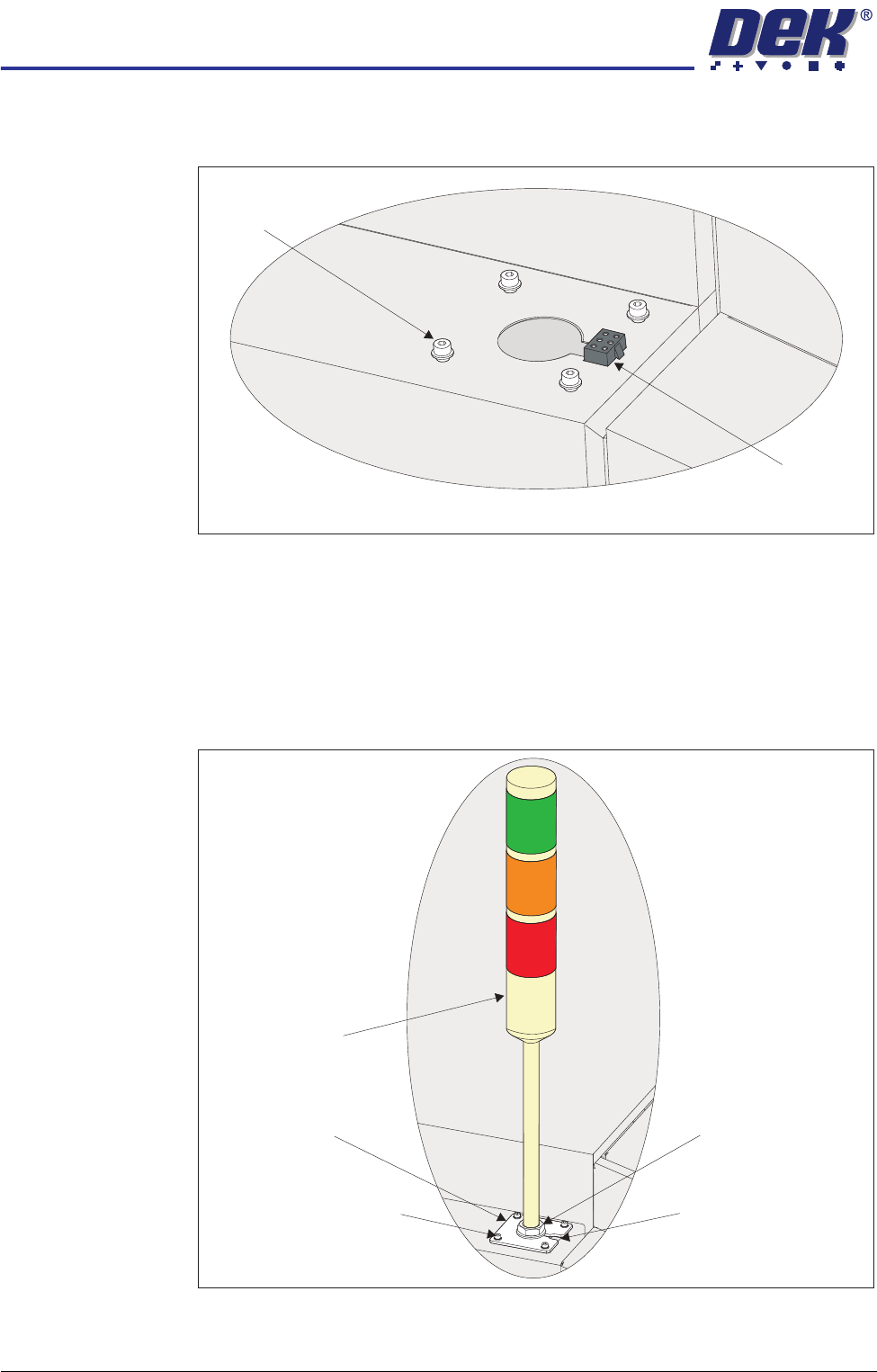

Beacon Bracket
Securing Screws
(in 4 positions)
Beacon Connector
(14SK07)
View on Right Hand Side of the Machine
Beacon Bracket
Tricolour Beacon
Beacon Securing Nut
Beacon Bracket Cut-Out
Beacon Bracket Securing
Screws (in 4 positions)
