TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.81
7. Connect the following to the right hand auxiliary conveyor:
• M27PL17 to M27SK17 on the rear rail
• M27PL16 to M27SK16 on the front rail
• Clip M27SK14 into its bracket on the front rail and connect M27PL14 to
M27SK14
• Electrical connection to M27SOL01 (pneumatic solenoid) on the front rail
• Electrical connection to M27SOL03 (pneumatic solenoid) on the front rail
• Pneumatic feed to the input connector of M27SOL03
• M27SK24 to M27PL24 and M27SK25 to M27PL25 of the belt speed motor
controllers. Fit two cable ties to secure the cables to the mounting bracket
• 8SK21 to 8PL21 and 8SK23 to 8PL23 of the belt speed motor controllers
8. Cable tie any loose cables together to prevent them catching or rubbing on
any moving parts.
The following sections must be completed to align the auxiliary conveyors:
• Auxiliary Conveyor to Print Station Gap
• Auxiliary Conveyor Levelling
• Auxiliary Conveyor Front Rail Parallelism
• Auxiliary Conveyor Rear Rail Parallelism
• Auxiliary Conveyor Height Setting
TRANSPORTATION
MAJOR RELOCATION
34.82 Technical Reference Manual Chapter Issue 7 Oct 06
Auxiliary Conveyor
to Print Station Gap
To check and if required adjust the gaps between the print station rails and the
auxiliary conveyors carry out the following procedure:
NOTE
To carry out this procedure on the front rail, the board stops between the print
station and the auxiliary conveyors must be removed.
1. Using feeler gauges, ensure that the gap between the print station and the
auxiliary conveyors (in four positions) is between 3.5mm ±0.5mm.

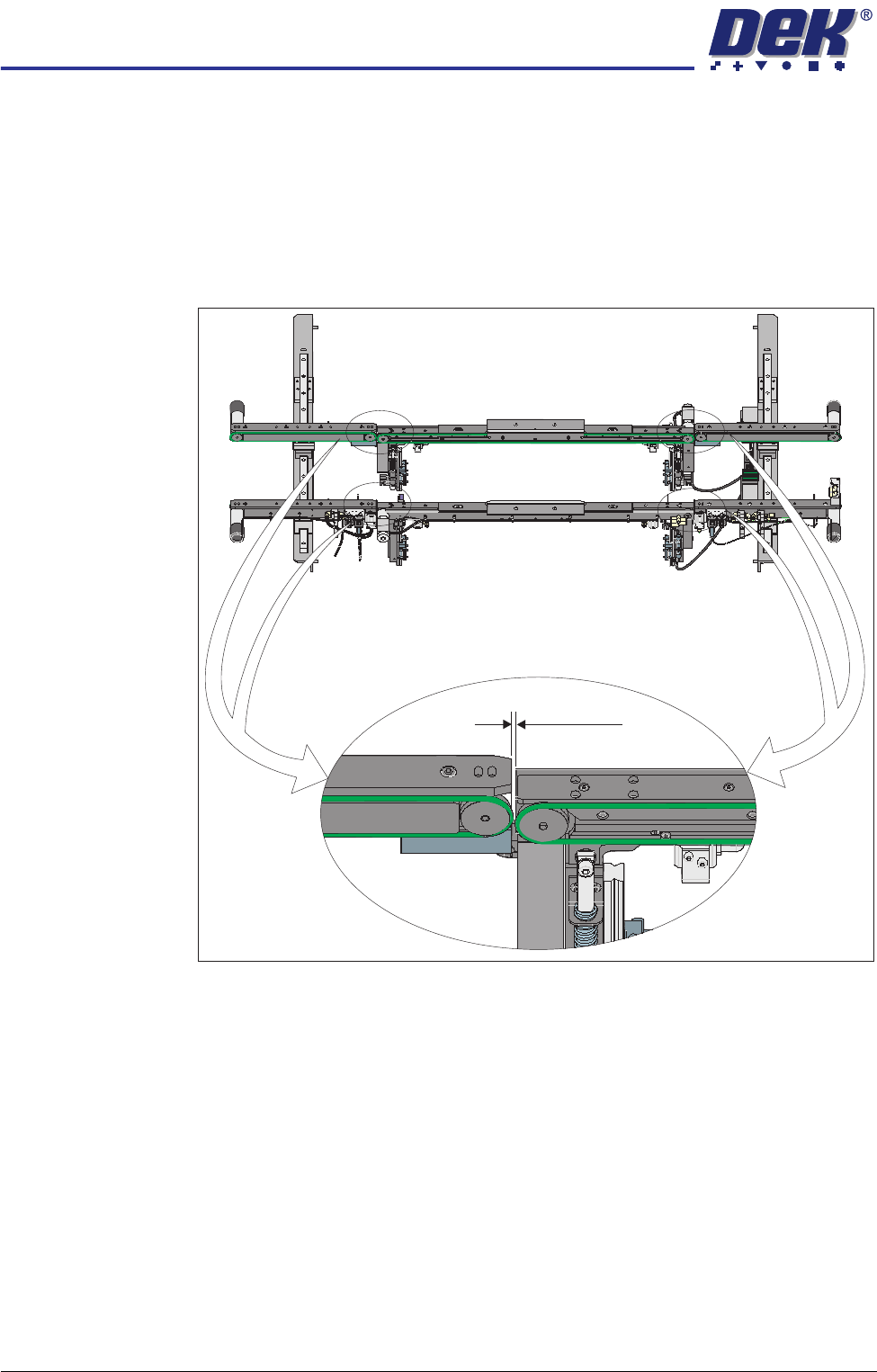

Front View of HTC Rails
3.5 ±0.5mm
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.83
2. If adjustment is required, loosen the locking nuts on the two auxiliary
conveyor height adjustment bolts.
3. Adjust the position of the conveyor to obtain the 3.5mm ±0.5mm gap
between the front and rear rails of the auxiliary conveyor and the front and
rear rails of the print station.
4. Re-tighten the locking nuts disturbed in Step 2 and recheck the measure-
ment.
Auxiliary Conveyor
Levelling
To check and if required adjust the levelling of the auxiliary conveyors, carry out
the following procedure:
1. Manually adjust the auxiliary conveyor rail width to 250mm.
2. Place a Board Clamp Setting Plate Pt No 140403 onto the auxiliary conveyor
transport belts.

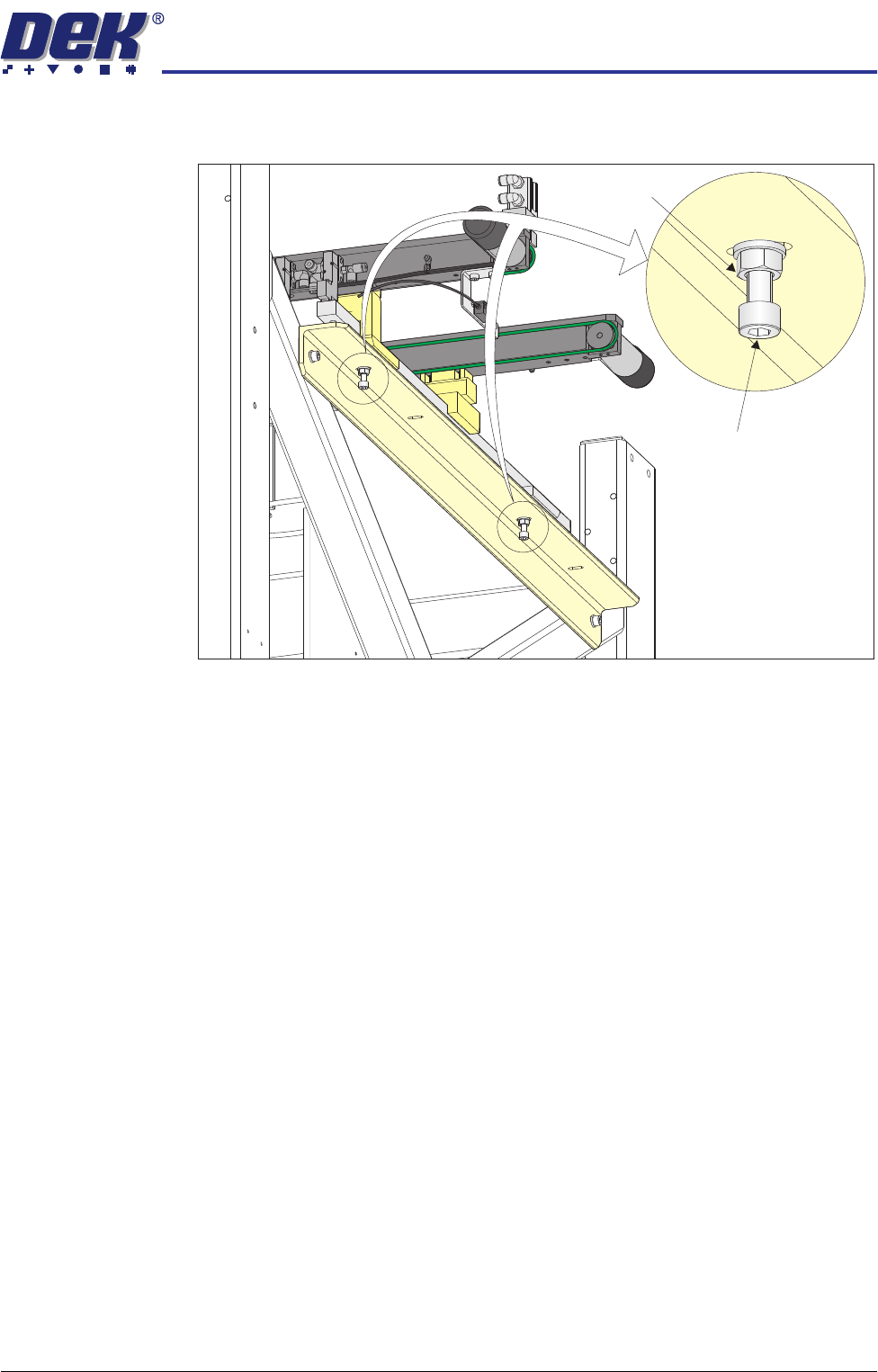

Auxiliary Conveyor
Height Adjustment
Bolt
Locking Nut
