TRANSPORTATION
MAJOR RELOCATION
34.56 Technical Reference Manual Chapter Issue 7 Oct 06
Figure 34-21 Transit Bracket and Screw Location
Rear Chase Transit Bracket
Paste Dispenser Transit Screw
View on Right Hand Underside
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.57
Figure 34-22 Transit Bracket and Screw Location (Camera Linear Drive)
View on Right Hand Underside
Camera Transit Screw
Camera Transit Screw
TRANSPORTATION
MAJOR RELOCATION
34.58 Technical Reference Manual Chapter Issue 7 Oct 06
Removal
Procedure
To remove the transit brackets and screws from the machine, remove/open the
rear printhead cover. On sliding cover machines remove the two upper side
panels as detailed in the Covers chapter.
Chase Transit
Brackets
The chase transit brackets include the following:
• Front Transit Bracket
• Rear Transit Bracket
• Rear Chase Transit Bracket
The following procedure must be adhered to and care must be taken to ensure
that the chase/ASM is released in a controlled manner to prevent damage to
the roller bearings or the actuators.
To remove the chase transit brackets, carry out the following procedure:
1. Using a 13mm spanner, loosen the four M8 nuts (3) directly below the front
and rear transit brackets (2), Chase Transit Brackets figure refers.
2. Slowly loosen the four M8 nuts (3) above the front and rear transit brackets
(2) to lower the roller counter plates onto the rollers bearings.
3. Using a 4mm Allen key, remove the M5 cap head screws (9) and washers
(10) that attach the adaptor bracket (8) at each end of the front and rear
transit brackets (2) to the left and right printheads.
4. Remove the four M8 nuts (3) and washers (4) above the front and rear transit
brackets (2).
5. Remove the front and rear transit brackets (2) from the M8 chase studs (1).
6. Loosen the transit adjustment screw lock nut (6) on the front and rear transit
brackets (2).

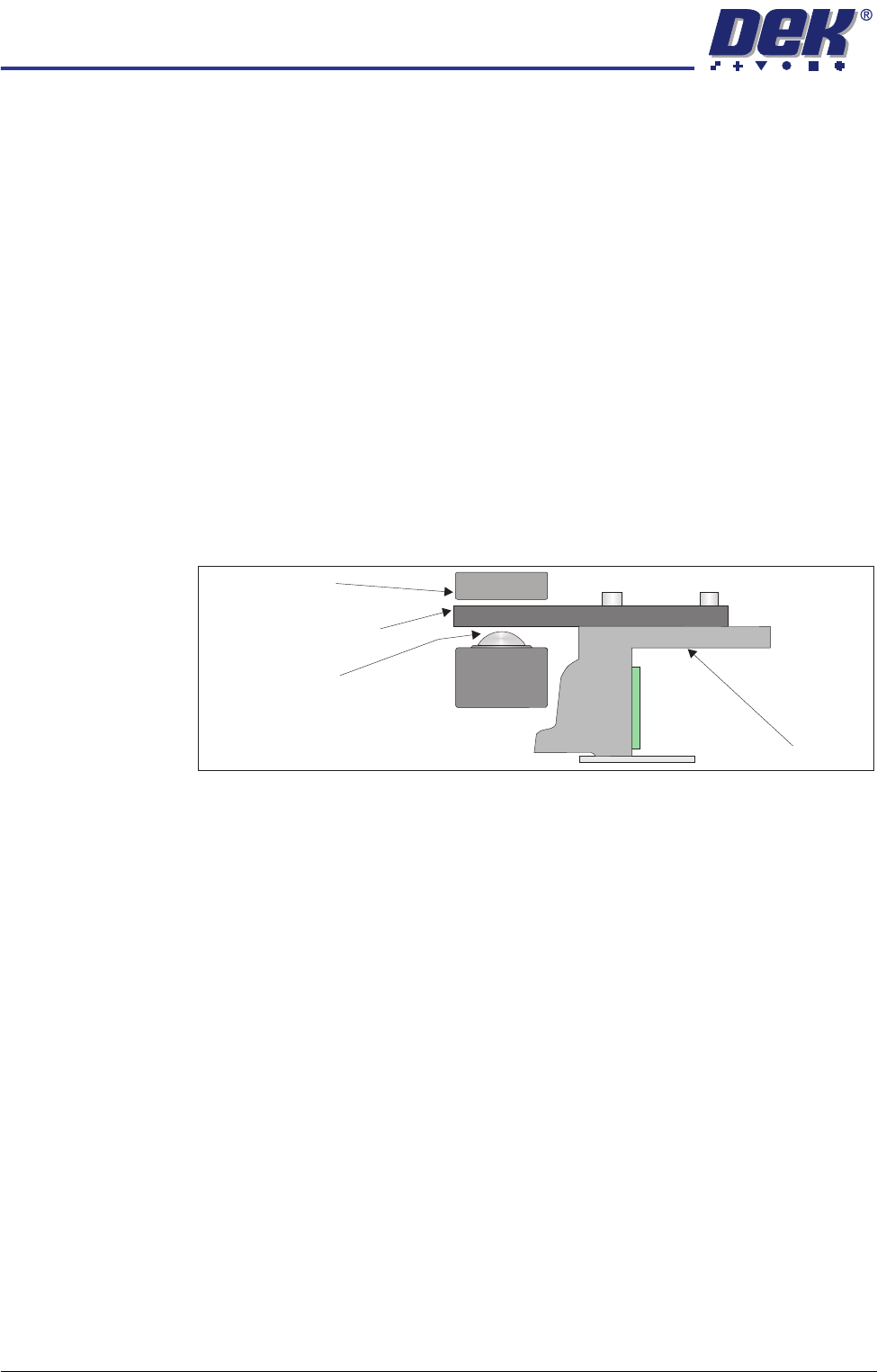

Chase
Chase Clamp
Roller Bearing
Roller Counter Plate
