TRANSPORT ATION MAJOR RE LOCATION 34.18 Technical Reference Manual Chapter Issue 7 Oct 06 Camera T ransit Screws (Rot ary Drive) 1. Manually pul l the camera beam to the fron t of the machine. 2. Align the t hreaded hole…
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.17
Figure 34-8 Transit Bracket and Screw Location (Camera Linear Drive)
Under Screen
Cleaner
1. Place a piece of card (300mm x 180mm approximately) onto the top of the
screen cleaner.
2. Join three large cable ties together and secure the card and the cleaner to
the carriage by fitting them around the whole cleaner assembly.
View on Right Hand Underside
Camera Transit Screw
Camera Transit Screw
TRANSPORTATION
MAJOR RELOCATION
34.18 Technical Reference Manual Chapter Issue 7 Oct 06
Camera Transit
Screws (Rotary
Drive)
1. Manually pull the camera beam to the front of the machine.
2. Align the threaded hole in the camera Y drag chain bracket with the hole in
the right hand printhead and fit the M8 transit screw.
3. Align the threaded hole in the camera beam with the hole in the camera X
drag chain bracket (below the camera beam) and fit the M8 transit screw
downwards through the camera beam.
Note
Camera X Drag Chain Bracket is hidden
from view by the Camera Beam
Transit Screws
Camera Beam
Right Hand Printhead
Camera Y Drag
Chain Bracket
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.19

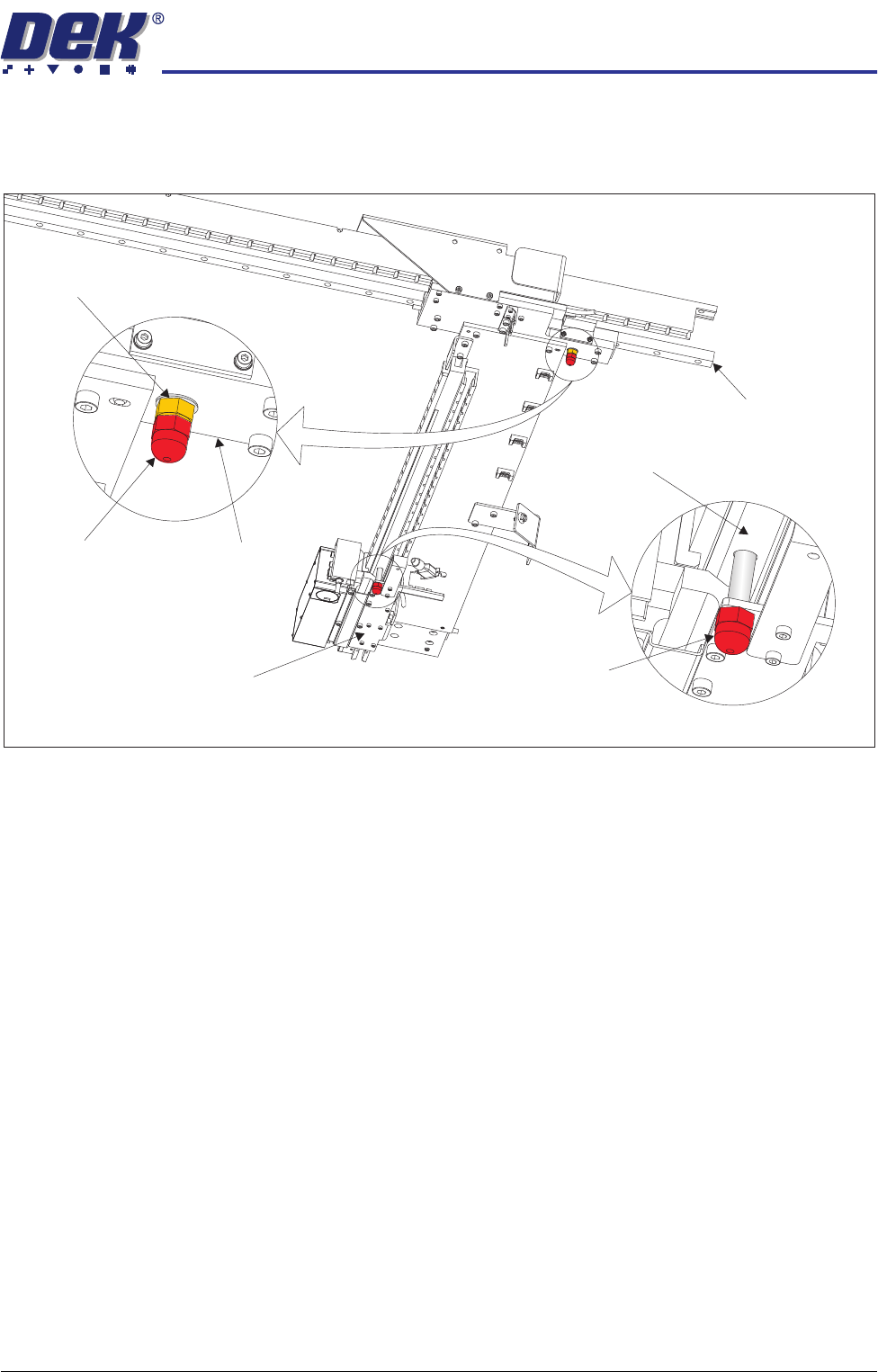

Camera Transit
Screws (Linear
Drive)
1. Align the threaded hole in the camera X drag chain bracket with the hole in
the camera beam extrusion and fit the M8 transit screw.
2. Align the threaded hole in the camera Y plate with a spare hole in the camera
Y linear bearing at the rear of the machine and fit the M8 transit screw
ensuring that the transit screw is fitted with a lock nut and crinkle washer.
3. Tighten the locking nut on to the camera Y plate to prevent the transit screw
vibrating loose during transportation.
View on Right Hand Underside of Camera Beam
Transit Screw
Transit Screw
Camera Y Plate
Camera Y Linear Bearing
Camera X Drag Chain Bracket
Camera Beam Extrusion
Lock Nut and
Crinkle Washer
