TRANSPORTATION
MAJOR RELOCATION
34.26 Technical Reference Manual Chapter Issue 7 Oct 06
Grease Protection If the machine is being relocated to another site or placed into storage, bare
metal surfaces must be greased to protect against corrosion. Using a small
brush or cloth, apply LM grease to the following areas:
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
• Print carriage linear bearing guides (above the printheads)
• Camera linear bearing guides (below the printheads)
• Rear moving rail linear bearing guides (either side of the rising table)
• Top face of both clatter bars (either side of the rising table)
• Actuator striker plates (in 3 positions)
• Front and rear board clamps

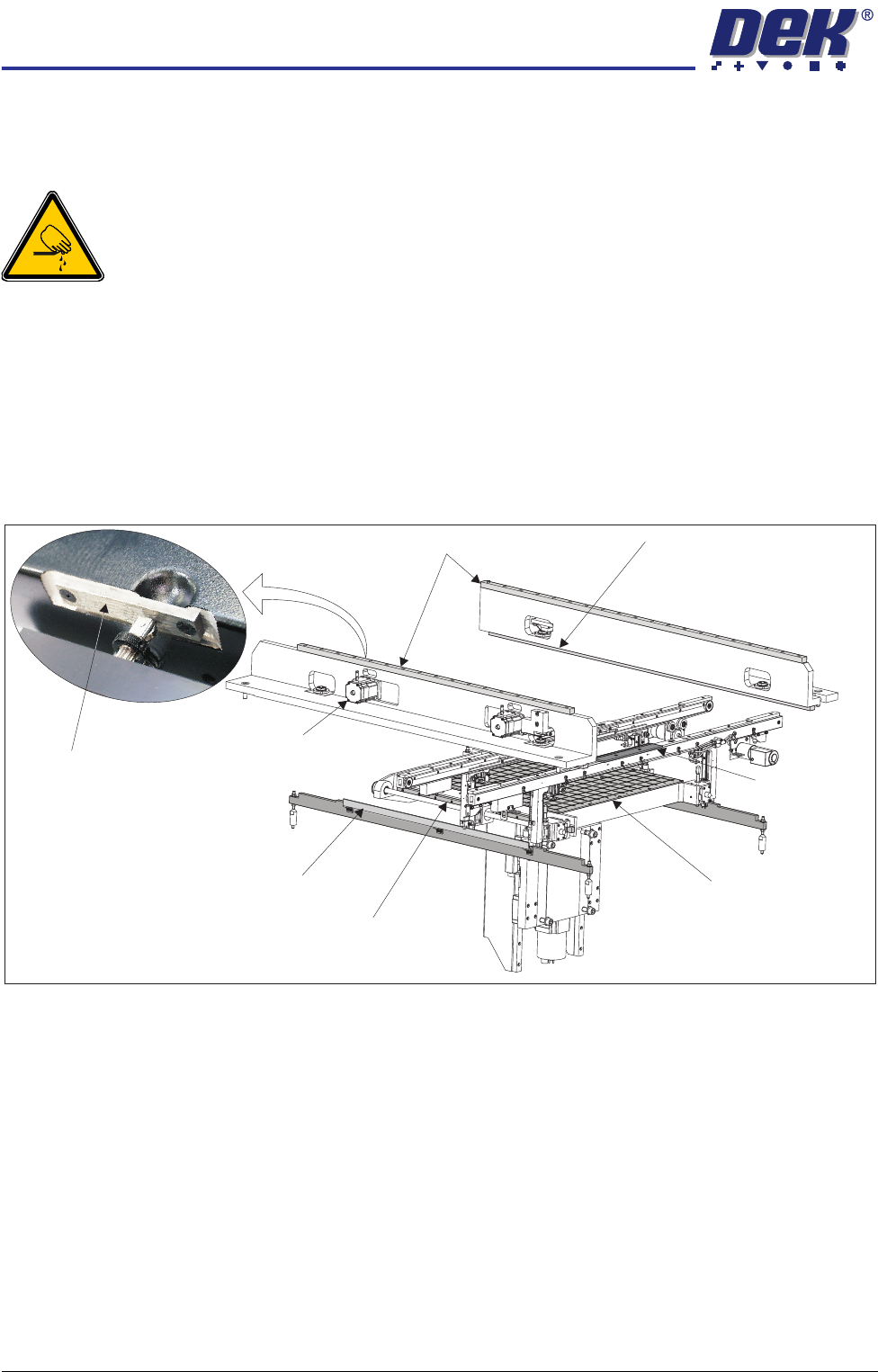

Figure 34-11 Grease Protection
Coat the manual tooling plate with WD40 or similar product to protect the
manual tooling plate from corrosion.
Print Carriage Linear Bearing Guides
Moving Rail Linear Bearing Guide (in 2 positions)
Clatter Bar (in 2 positions)
Board Clamp
(in 2 positions)
Camera Linear Bearing Guide
(in 2 positions)
Manual Tooling Plate
Actuator (in 3 positions)
Actuator Striker Plate
(in 3 positions)
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.27
Dismantling To ensure the machine is not damaged during transportation it is recommended
that the following components are removed:
• Barcode readers
• Interactiv headset
• Paste cartridge
• Squeegees
• Tooling
Tricolour Beacon
(Sliding Glass Cover
Design)
1. Disconnect the tricolour beacon connection 14PL07 from 14SK07.
2. Remove the tricolour beacon from the beacon bracket by undoing one of the
nuts and sliding the beacon out of the cut-out on the beacon bracket.
3. Cable tie the loose cable to the cover frame.
TRANSPORTATION
MAJOR RELOCATION
34.28 Technical Reference Manual Chapter Issue 7 Oct 06
Tricolour Beacon
(Gull Wing and
Shutter Cover
Design)
1. Disconnect the tricolour beacon connection 14PL07 from 14SK07.
2. Remove the tricolour beacon from the beacon bracket by undoing one of the
nuts and sliding the beacon out of the cut-out on the beacon bracket.
3. Cable tie the loose cable to the cover frame.
Tricolour Beacon
(Metal Cover
Design)
1. Using a 3mm Allen key, remove the beacon bracket from the machine cover.
2. Pull the cable up through the hole to reveal the connector.
Beacon Bracket
Tricolour Beacon
Beacon Securing Nut
Beacon Bracket Cut-Out
Beacon Bracket Securing
Screws (in 4 positions)
