TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.29
3. Maintaining hold of the socket 14SK07 (to prevent the socket from falling
into the machine through the hole), disconnect the tricolour beacon connec-
tion 14PL07 from 14SK07.
4. Place the socket 14SK07 in the cut-out on the cover.
5. Refit the four beacon bracket securing screws.
Beacon Bracket
Securing Screws
(in 4 positions)
Beacon Connector
(14SK07)
View on Right Hand Side of the Machine
TRANSPORTATION
MAJOR RELOCATION
34.30 Technical Reference Manual Chapter Issue 7 Oct 06
Removal of the MMI
Assembly (Sliding
Glass Cover)
If the machine is being relocated in a DEK machine crate, the MMI assembly
must be wrapped securely in bubble wrap or removed from the machine using
the following procedure:
1. Remove the following connections on the rear of the monitor:
• Monitor Power Cable (DC)
• VGA Cable
• Touchscreen Cable (USB)
2. Remove the IR receiver unit (secured with velcro) from the bracket above
the monitor.
3. Remove the touchscreen stylus from the monitor arm.
4. Remove the monitor from the monitor arm by removing the four fixing
screws.
5. Remove the monitor arm by removing the three screws that secure the
monitor arm to the machine.
6. Locate the 4 port USB hub secured to the left side of the mains isolator
switch bracket.

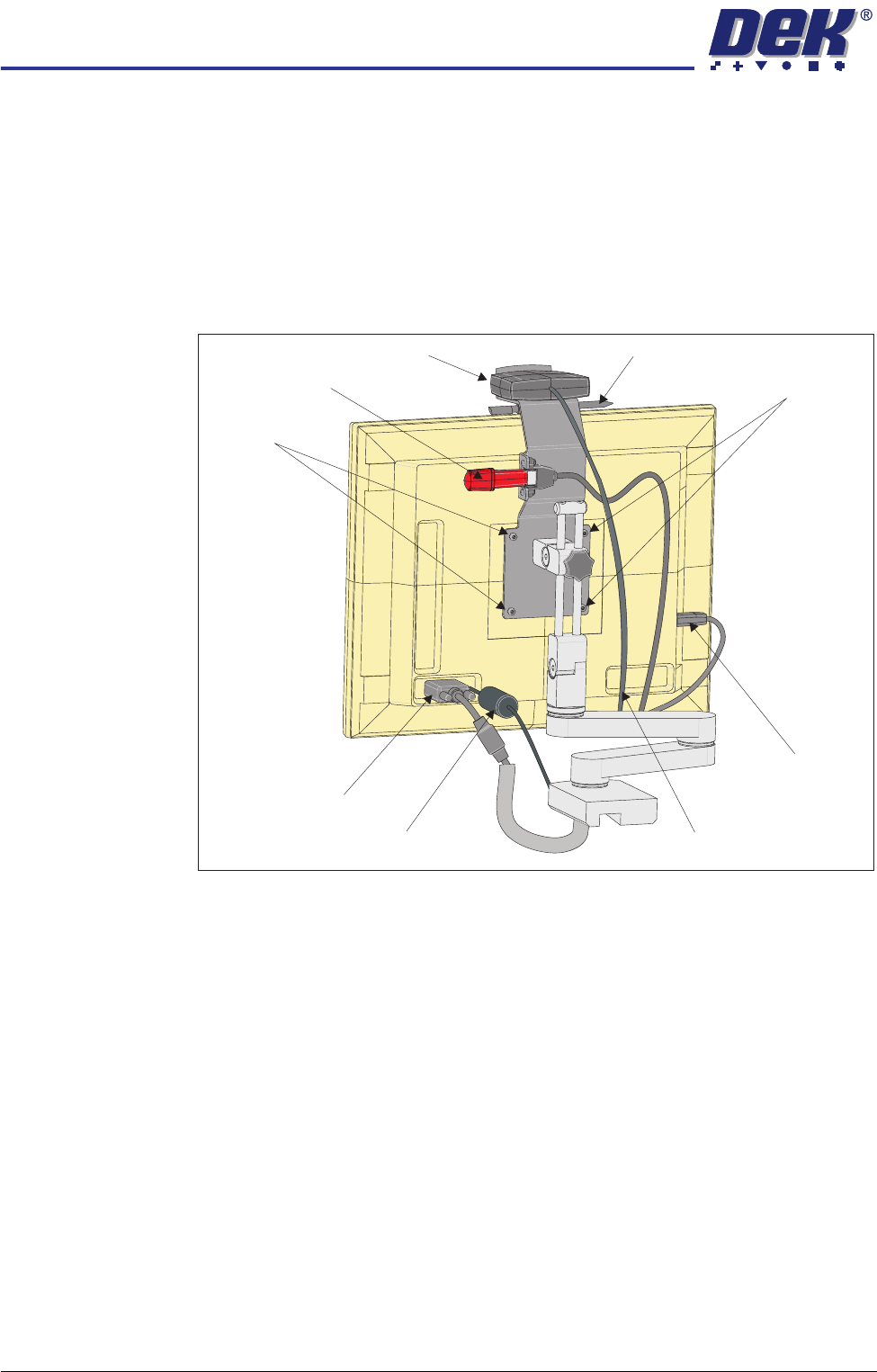

Monitor Fixing Screws
Monitor Fixing
Screws
Touchscreen Stylus
IR Receiver Unit
DC Connection
Touchscreen
Connection
(USB)
IR Receiver Unit Cable
VGA Connection
USB Flash Drive
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.31

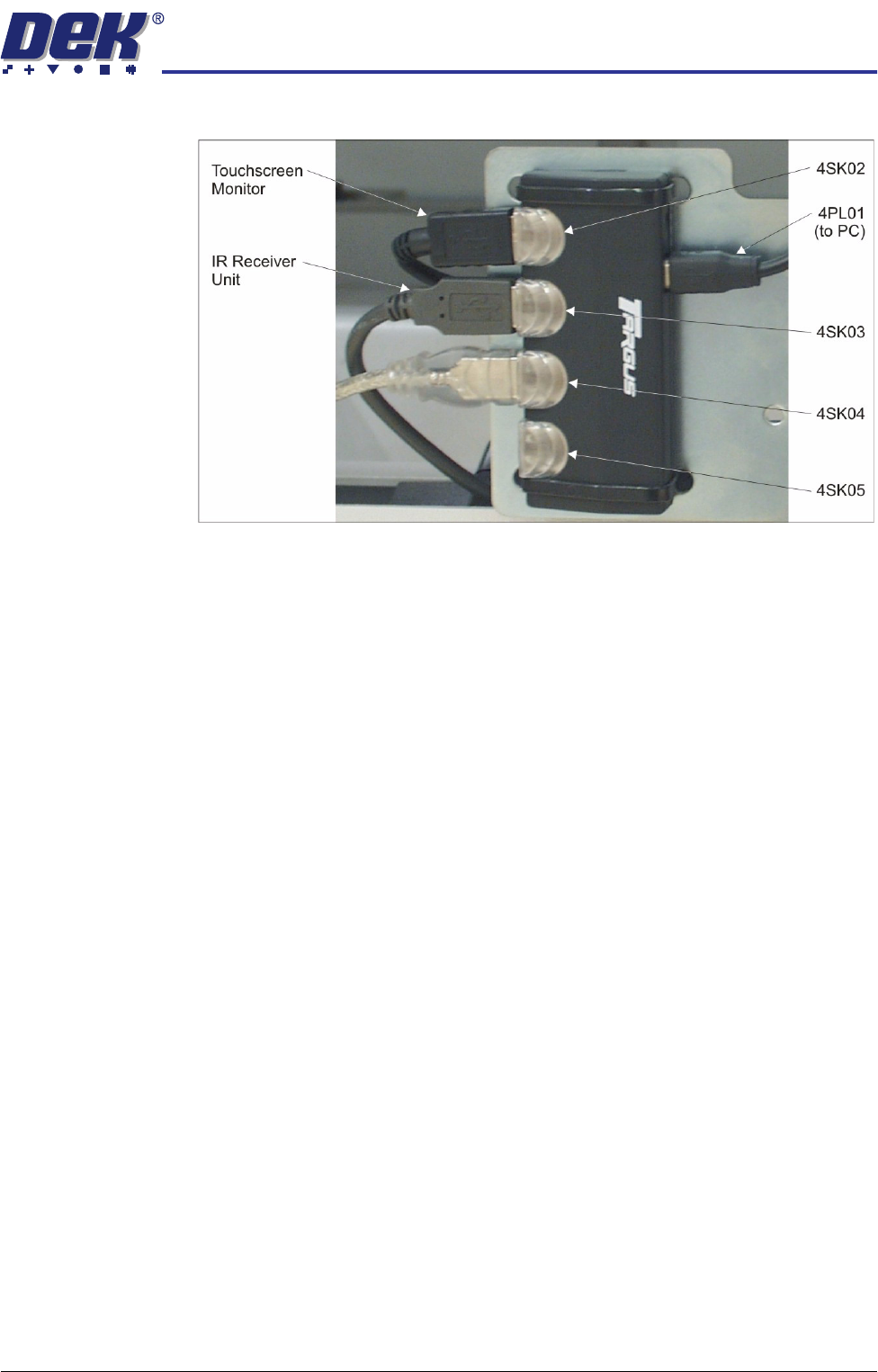

7. Disconnect the IR Receiver Unit from 4SK03 on the 4 port USB hub.
8. Remove the IR Receiver Unit from the machine.
9. Stow the following cables neatly inside the machine:
• Monitor Power Cable
• VGA Cable
• Touchscreen Monitor Cable
10. Refit all the covers.
