TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.45
8. Replace the studs with four mounting feet.
NOTE
For machines with the anti-vibration mounting feet option, four anti-vibration
feet and one standard foot is supplied. Ensure the anti-vibration feet are
fitted to the four corners of the machine.
9. Between (and slightly forward of) the two rear mounting feet, locate the hole
and fit the fifth mounting foot.
10. Adjust the height of each foot to approximately the same height, secure in
place by tightening the nuts.
11. Move the machine to its designated position.
TRANSPORTATION
MAJOR RELOCATION
34.46 Technical Reference Manual Chapter Issue 7 Oct 06
Machine Footprints

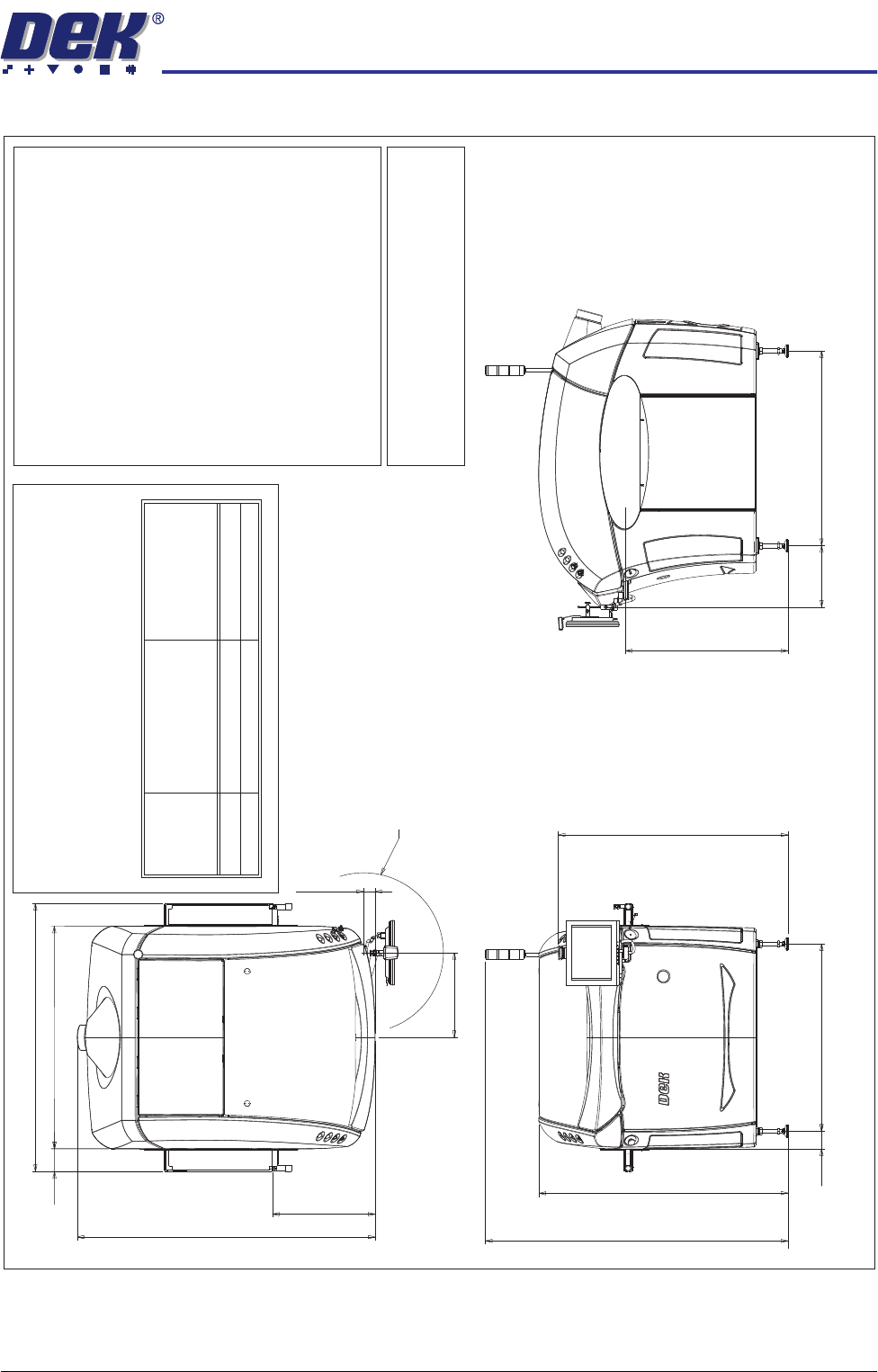

Figure 34-12 Sliding Glass Cover Footprint
R 470
Max dimension from
pivot point
Plan View
606
Front of board
1758
1334
(1352 min to 1492 max)
1472
(1665 min to 1805 max)
1785
Front View
114
1106
(1212 min to 1352 max)
1331
Side View (Right)
(840 min to
980 max)
Transfer Height 960
1150
362
Services Required
Voltage:
100V to 240V 10% Single Phase 50/60Hz±
Operating Envelope:
Temperature 10 - 35 C(50-95F)
Humidity 30 - 70% Relative Humidit
y
(non condensing)
00
Weight Boxed - 810kg, Unboxed - 660kg
Air Supply:
Air to ISO 8573.1
standard quality class 2.3.3
Pressure5-8Barat5
Litre/min
Current (with Vacuum Filtration Unit):
115V - 20 Amps
230V - 10 Amps
Current (without Vacuum Filtration Unit):
115V - 6 Amps
230V - 3 Amps
Note
All dimensions in millimetres
Board transfer height 840 - 980 mm
Screen load height 925 - 1065 mm
CAUTION
OVER CURRENT PROTECTION.
Magnetic/thermal over current protectors protect the
machines internal wiring and components from over
heating/fire during fault conditions. DEK require
additional machine suppl
y protection with the fitment of
an external circuit breaker and conforming to national/
federal regulations, .table below refers
Voltage
Value of
Circuit Breaker
(without Internal
Vac Unit)
Value of
Circuit Breaker
(with Internal
Vac Unit)
115V
230V
10 Amp
6 Amp
25 Amp
16 Amp
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.47

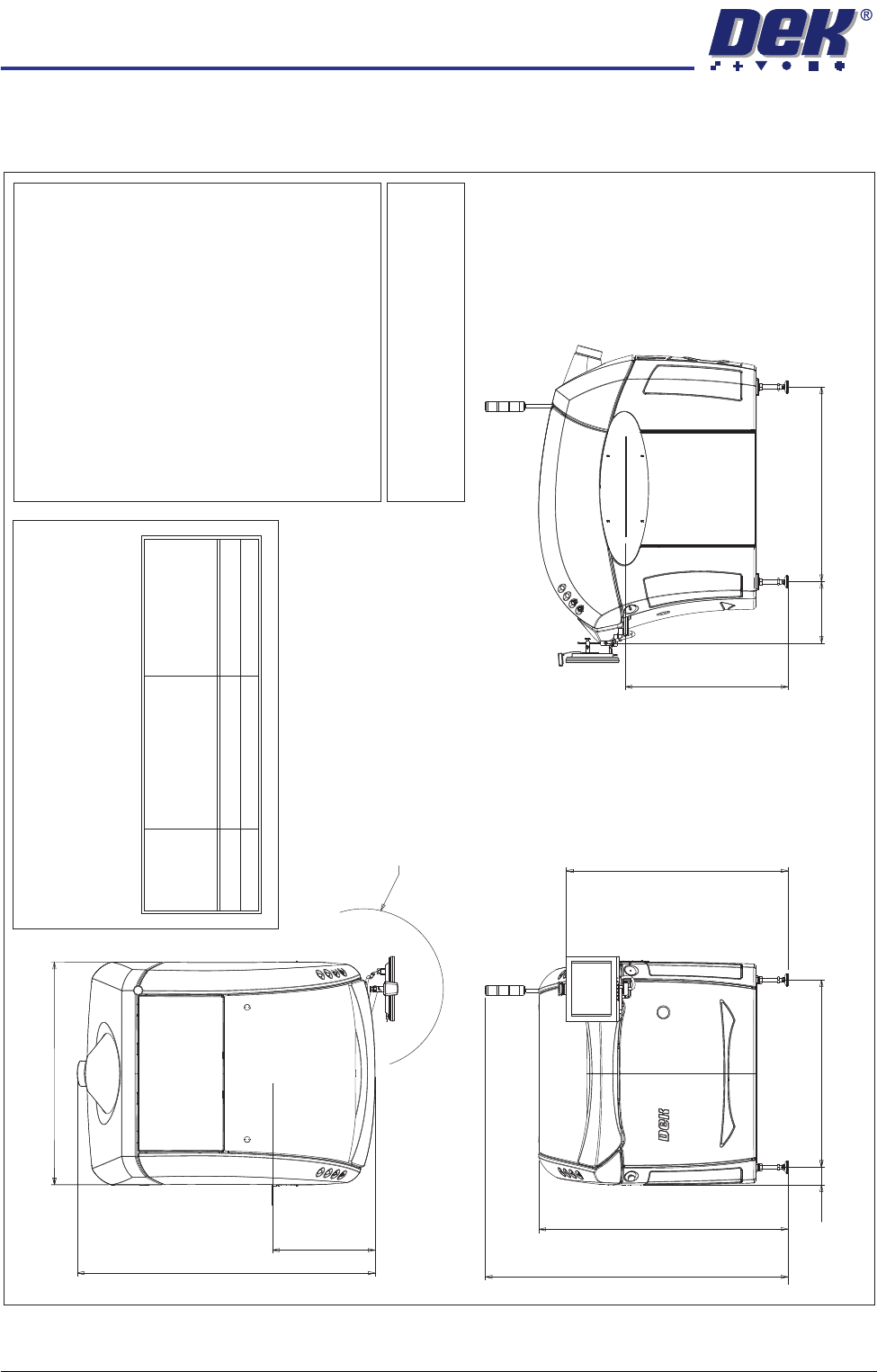

Figure 34-13 Sliding Glass Cover With HTC Footprint
Pivot Point
R 470
Max dimension from
pivot point
362
1150
Transfer Height 960
980 max)
(840 min to
Side View (Right)
1331
(1212 min to 1352 max)
1106
(1352 min to 1492 max)
104
Front View
1785
(1665 min to 1805 max)
1472
500
Plan View
606
68
Front of board
1758
134
Pivot
Point
1334
1582
Services Required
Voltage:
100V to 240V 10% Single Phase 50/60Hz±
Operating Envelope:
Temperature 10 - 35 C(50-95F)
Humidity 30 - 70% Relative Humidit
y
(non condensing)
00
Weight Boxed - 810kg, Unboxed - 660kg
Air Supply:
Air to ISO 8573.1
standard quality class 2.3.3
Pressure5-8Barat5
Litre/min
Current (with Vacuum Filtration Unit):
115V - 20 Amps
230V - 10 Amps
Current (without Vacuum Filtration Unit):
115V - 6 Amps
230V - 3 Amps
Note
All dimensions in millimetres
Board transfer height 840 - 980 mm
Screen load height 925 - 1065 mm
CAUTION
OVER CURRENT PROTECTION.
Magnetic/thermal over current protectors protect the
machines internal wiring and components from over
heating/fire during fault conditions. DEK require
additional machine suppl
y protection with the fitment of
an external circuit breaker and conforming to national/
federal regulations, .table below refers
Voltage
Value of
Circuit Breaker
(without Internal
Vac Unit)
Value of
Circuit Breaker
(with Internal
Vac Unit)
115V
230V
10 Amp
6 Amp
25 Amp
16 Amp
