TRANSPORTATION
MINOR RELOCATION
34.6 Technical Reference Manual Chapter Issue 7 Oct 06
8. Adjust the angle of the rear chase transit bracket (12) to align the transit
adjustment screw (11) to the centre of the chase/ASM. Tighten the M6 cap
head screw (13).
9. Adjust the transit adjust screw (7), on both the left chase transit brackets (5),
and the transit adjustment screw (11) on the rear chase transit bracket (12),
so that the chase is moved approximately 5mm away from all three actuator
shafts.
10. Lock the transit adjustment screws in position with the transit adjustment
screw lock nuts (6) and (15).
11. Place the front and rear transit brackets (2) over the M8 chase studs (1).
12. Loosely attach the adaptor bracket (8) at each end of the front and rear
transit bracket (2) to the left and right printheads using an M5 cap head
screw (9) and M5 washer (10).
13. Screw an M8 nut (3) and M8 washer (4) onto each of the four M8 chase
studs (1) and adjust so that the front and rear transit brackets are nipped
between the nuts and washers, ensuring that the chase is not lifted at this
time.
14. Fully tighten the M5 cap head screws (9) left loose in Step 12.
15. Slacken the M8 nuts (3) directly below the front and rear transit brackets (2).
16. Adjust the M8 nuts (3) above the front and rear transit brackets (2) to lift the
chase off the roller bearings (in all four positions), ensuring that the roller
counter plates are not touching the chase clamps.
17. Tighten the M8 nuts (3) directly below the front and rear transit brackets (2).
18. Refit/close any disturbed covers.

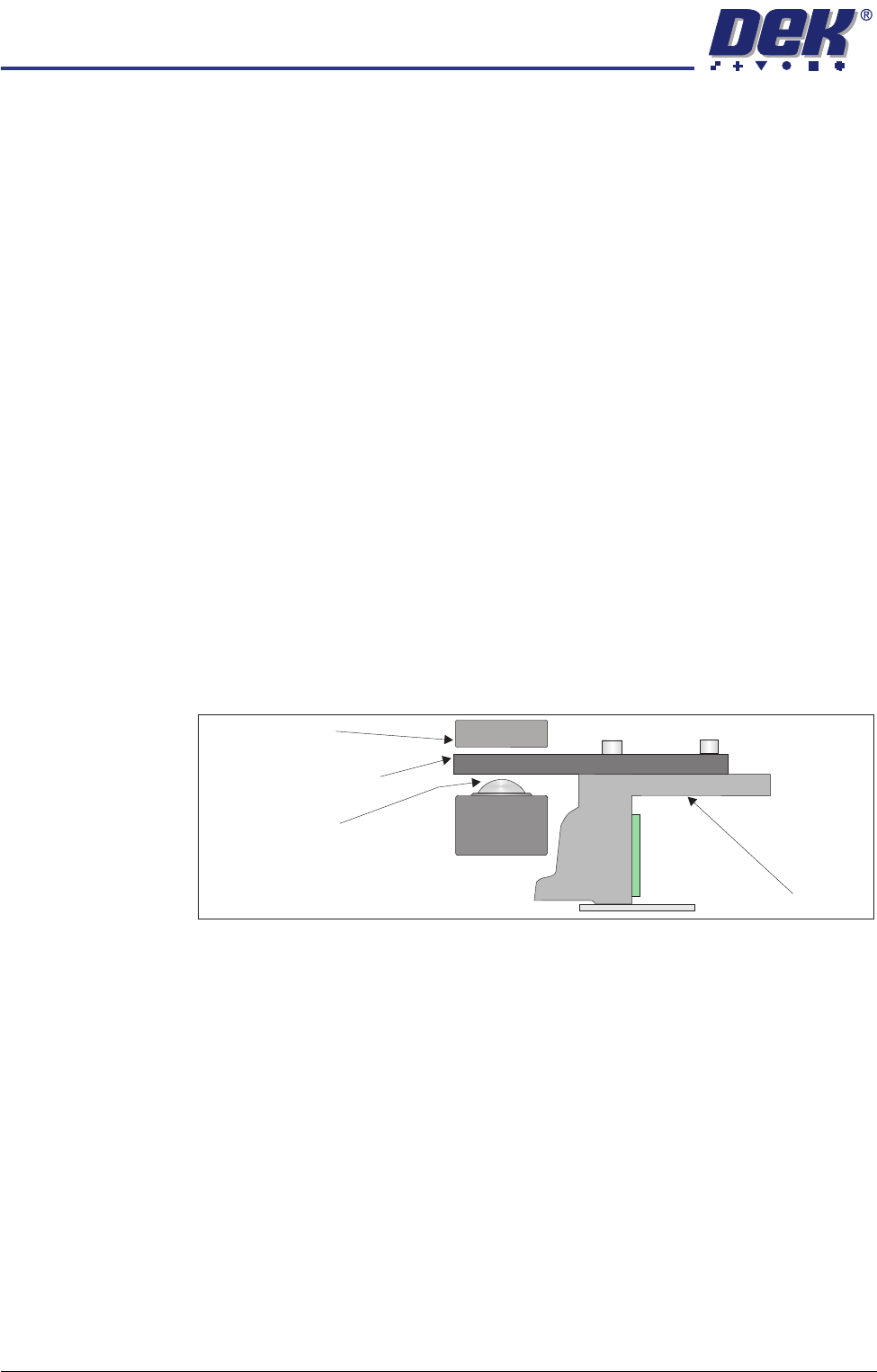

Chase
Chase Clamp
Roller Bearing
Roller Counter Plate
TRANSPORTATION
MINOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.7
Transportation
WARNING
MACHINE LIFTING. TO PREVENT SERIOUS INJURY TO PERSONNEL, DURING
LIFTING AND TRANSPORTATION OPERATIONS, ENSURE THE MACHINE IS
LIFTED AND TRANSPORTED IN ACCORDANCE WITH INSTRUCTIONS
DETAILED IN THIS SECTION.
CAUTION
MACHINE DAMAGE.
Damage to the machine will occur if the machine is
lifted:
• Using lifting strops
• From the sides
The machine may be lifted using a pallet truck or similar manually operated
machine that meets the following criteria:
• Minimum fork length of 1219mm (48 inches)
• Fork span >686mm (27 inches) and <914mm (36 inches)
• Fork Height (thickness) <50mm (2 inches)
• Lifting capability of 2000kg
1. Locate the forks under the machine base so the weight of the machine is
taken evenly on the front and rear cross members.
NOTE
Height of machine feet may have to be adjusted to allow the pallet truck to
raise the machine clear of the floor.
2. Raise the machine and carefully transport into position.
Figure 34-5 Machine on Pallet Truck
TRANSPORTATION
MINOR RELOCATION
34.8 Technical Reference Manual Chapter Issue 7 Oct 06
Transit Bracket
Removal
To remove the transit brackets and screws from the machine, remove/open the
rear printhead cover. On sliding cover machines remove the two upper side
panels as detailed in the Covers chapter.
Chase Transit
Brackets
The chase transit brackets include the following:
• Front Transit Bracket
• Rear Transit Bracket
• Rear Chase Transit Bracket
The Front and Rear Transit Bracket Location and Rear Chase Transit Bracket
Location figures earlier in this chapter refers.
The following procedure must be adhered to and care must be taken to ensure
that the chase/ASM is released in a controlled manner to prevent damage to
the roller bearings or the actuators.
To remove the chase transit brackets, carry out the following procedure:
NOTE
The numbers in brackets refer to the items in the Chase Transit Brackets and
Rear Chase Transit Bracket figures earlier in this chapter.
1. Using a 13mm spanner, loosen the four M8 nuts (3) directly below the front
and rear transit brackets (2).
2. Slowly loosen the four M8 nuts (3) above the front and rear transit brackets
(2) to lower the roller counter plates onto the roller bearings.
3. Using a 4mm Allen key, remove the M5 cap head screws (9) and washers
(10) that attach the adaptor bracket (8) at each end of the front and rear
transit brackets (2) to the left and right printheads.
4. Remove the four M8 nuts (3) and washers (4) above the front and rear transit
brackets (2).
5. Remove the front and rear transit brackets (2) from the M8 chase studs (1).
6. Loosen the transit adjustment screw lock nut (6) on the front and rear transit
brackets (2).
7. Loosen the transit adjustment screw lock nut (15) on the rear chase transit
bracket (12).
8. Using a 6mm Allen key, loosen the transit adjustment screw (7), on both the
left chase transit brackets (5), and the transit adjustment screw (11) on the
rear chase transit bracket (12), so that the chase comes into contact with
the three actuator shafts.
Chase
Chase Clamp
Roller Bearing
Roller Counter Plate
