TRANS PORTATION MINOR RELO CATION Chapter Issue 7 Oct 06 Technical Reference Manual 34.3 Figure 34-2 Rear Chase T ransit Bracket Location Rear Chase T ransit Bracket View on Right Hand Underside

TRANSPORTATION

MINOR RELOCATION

34.2 Technical Reference Manual Chapter Issue 7 Oct 06

MINOR RELOCATION

The following procedure is utilized when:

• The machine is brought out of line for servicing or fault rectification.

• The machine is being relocated a short distance from its original position,

ie within the confines of the factory utilizing a pallet truck or similar

manually operated machine.

Machine

Preparation

1. With power applied to the machine, home the screen actuators.

2. Switch off and disconnect the electrical power.

3. Disconnect the pneumatic supply.

4. Remove/open the rear printhead cover as detailed in the Covers chapter.

5. On sliding cover machines remove the two upper side panels as detailed in

the Covers chapter.

Transit Bracket Installation

Chase Transit

Brackets

The chase transit brackets include the following:

• Front Transit Bracket

• Rear Transit Bracket

• Rear Chase Transit Bracket

Figure 34-1 Front and Rear Transit Bracket Location

Rear Transit Bracket

Front Transit Bracket

TRANSPORTATION

MINOR RELOCATION

Chapter Issue 7 Oct 06 Technical Reference Manual 34.3

Figure 34-2 Rear Chase Transit Bracket Location

Rear Chase Transit Bracket

View on Right Hand Underside

TRANSPORTATION

MINOR RELOCATION

34.4 Technical Reference Manual Chapter Issue 7 Oct 06

The figure below shows the chase transit brackets fully assembled for part

location, only assemble the chase transit brackets as detailed in the following

procedure:

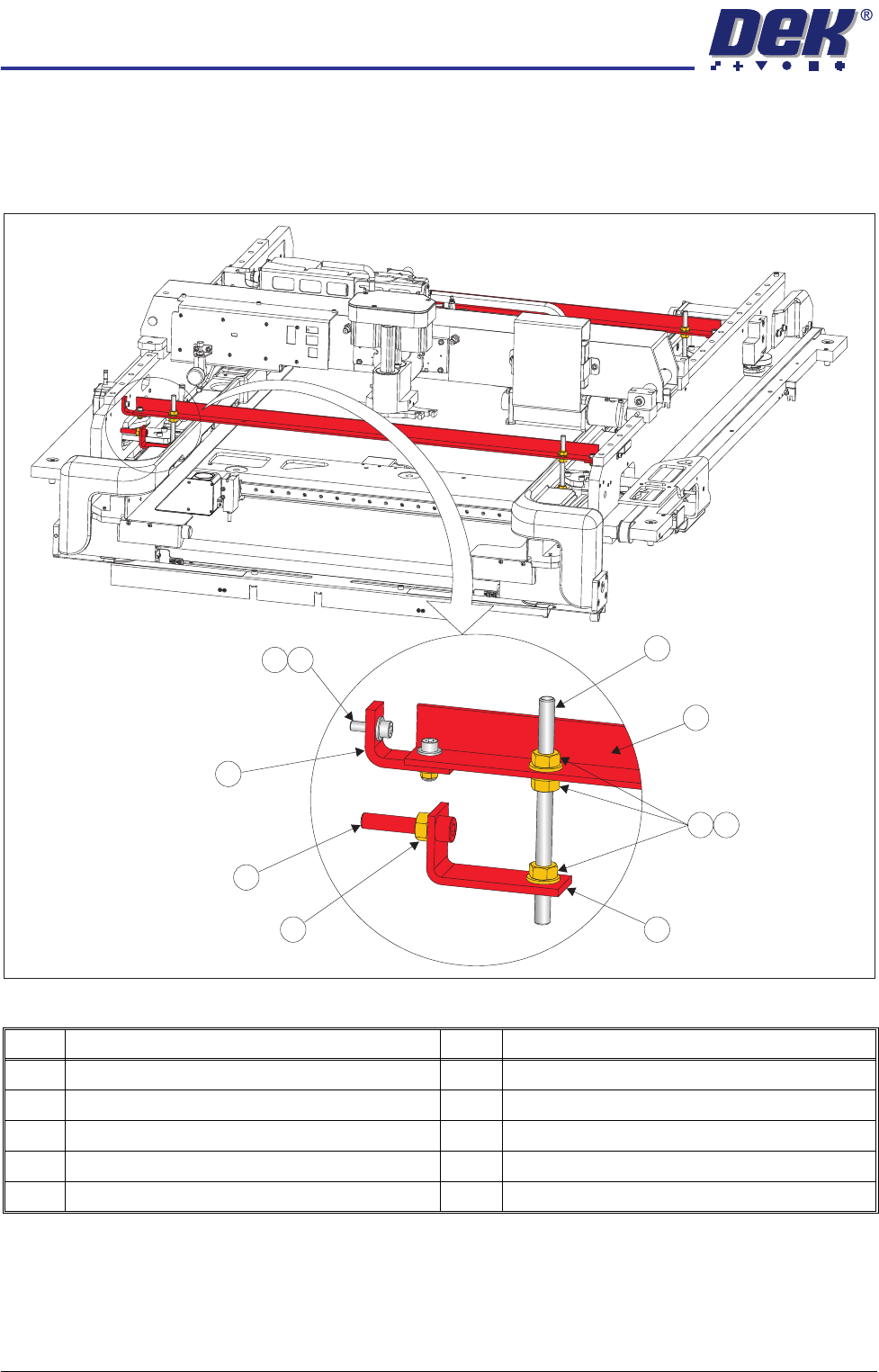

Figure 34-3 Chase Transit Brackets

1. Screw two M8 chase studs (1) into the right hand side of the chase,

engaging approximately 15mm of thread and secure with M8 nuts (3) and

M8 washers (4).

2. Place a left chase transit bracket (5) over the hole on the left hand side of

the chase aligned to the front X actuator.

Item Description Item Description

1 M8 Chase Stud 6 Transit Adjustment Screw Lock Nut

2 Front/Rear Transit Bracket 7 Transit Adjustment Screw

3 M8 Nut 8 Adaptor Bracket

4 M8 Washer 9 M5 Cap Head Screw

5 Left Chase Transit Bracket 10 M5 Washer
