TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.71
Fitting of MMI
Assembly (Sliding
Glass Cover)
If the machine was not packaged in a DEK machine crate, it was recommended
that the touchscreen monitor and monitor arm were removed from the machine.
1. Remove the front panel.
2. Locate the following cables stowed within the machine and feed the cables
downwards through the hole of the monitor arm support bracket:
• Monitor Power Cable
• VGA Cable - 14PL04
• Touchscreen Cable (USB) - 14PL03
3. Feed the IR receiver unit cable upwards through the hole of the monitor arm
support bracket.

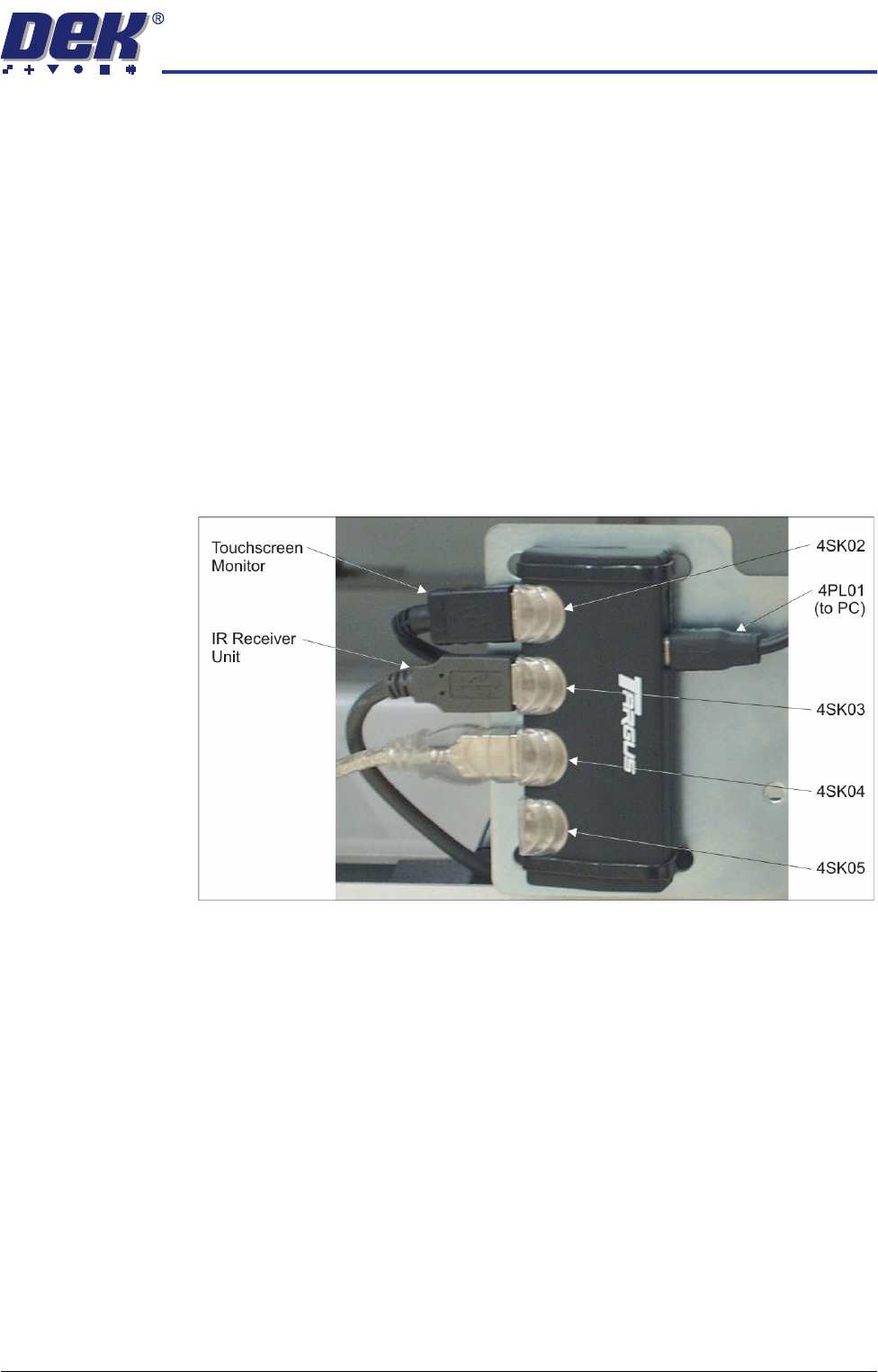

4. Locate the 4 port USB hub secured to the left side of the mains isolator
switch bracket.
5. Connect the IR Receiver Unit to 4SK03 of the 4 port USB hub.
6. Cable tie the cables inside the machine ensuring that the cables do not
come into contact with any moving parts.
TRANSPORTATION
MAJOR RELOCATION
34.72 Technical Reference Manual Chapter Issue 7 Oct 06

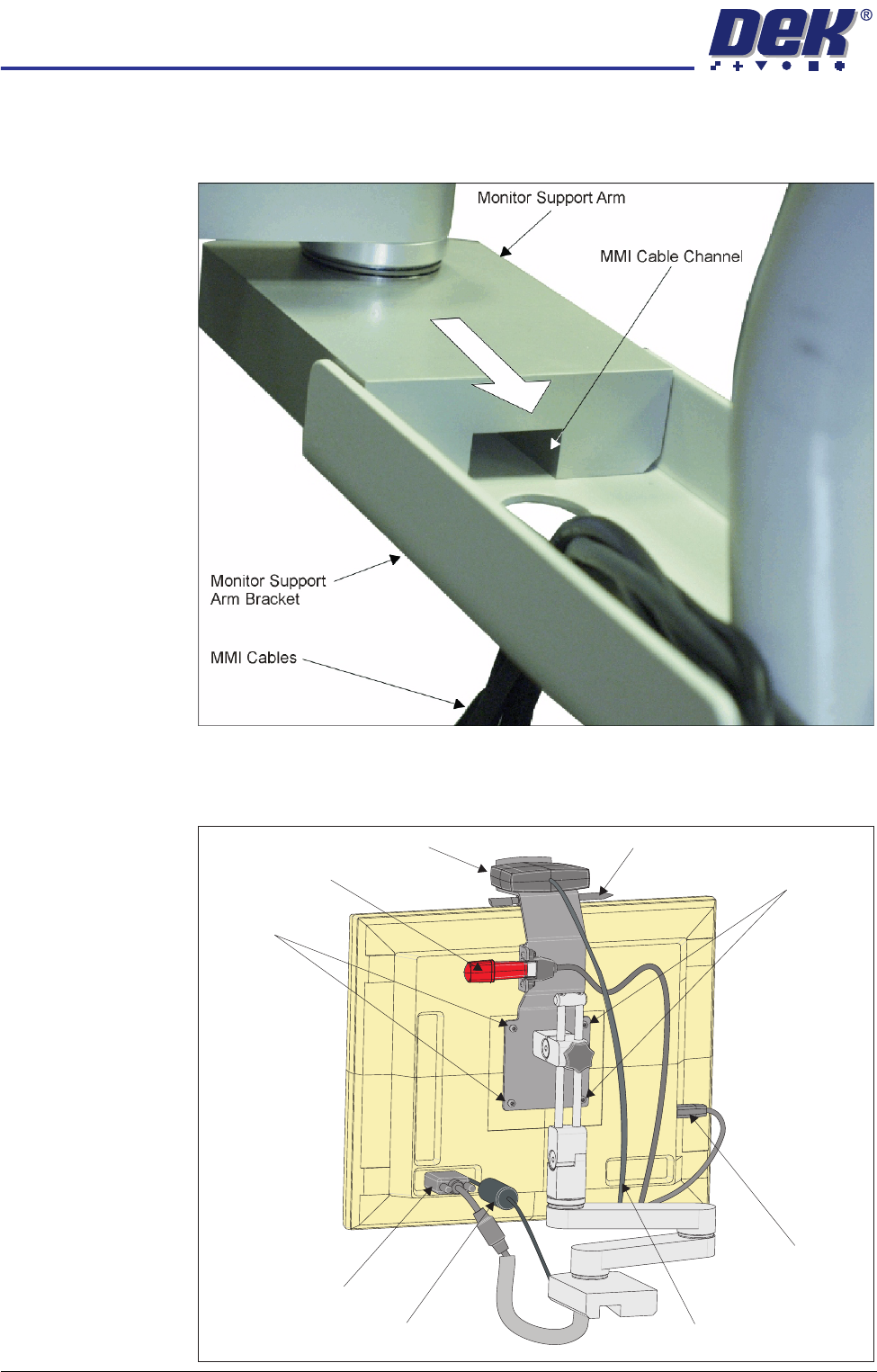

7. Group the four cables referred to in Steps 2 and 3, and fit the monitor arm
by sliding the monitor support arm on to the bracket. Ensure that the cables
are not trapped between the monitor support arm and the bracket.
8. Secure the monitor support arm to the bracket using 3 screws from below
the bracket.
9. Fit the monitor to the monitor arm using the four monitor fixing screws.
Monitor Fixing Screws
Monitor Fixing
Screws
Touchscreen Stylus
IR Receiver Unit
DC Connection
Touchscreen
Connection
(USB)
IR Receiver Unit Cable
VGA Connection
USB Flash Drive
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.73
10. Place the touchscreen stylus in the hole provided.
11. Using the velcro strip, secure the IR Receiver Unit on to the bracket above
the monitor.
12. Connect the cables to the following connections on the rear of the monitor:
• Monitor Power Cable (DC)
• VGA Cable
• Touchscreen Cable (USB)
Fitting of MMI
Assembly (Gull
Wing Cover)
1. Open the front printhead cover.
2. Remove the front panel.
3. Fit the friction washer to the bottom mounting spacer so that the dowel fits
through the washer locating hole.
4. Feed the MMI arm through the slot in the front right hand side cover.
5. Locate the MMI arm onto the friction washer on the MMI arm mounting
bracket. Ensure the MMI arm locates onto the locating dowel correctly so
that the arm is restricted to its arc of movement.
6. Fit the friction washer, top mounting spacer and mounting pin, (figure below
refers). Tighten the mounting pin using a 6mm Allen key.
Friction Washer
Bottom Mounting Spacer
Locating Dowel
View on MMI Arm Mounting Bracket
Friction Washer
MMI Arm
Top Mounting Spacer
Mounting Pin
View on MMI Arm Mounting Bracket
